HUAWEI eKit AP266

HUAWEI eKit AP266. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2975 Mbit/s. Security algorithms: SSH-2, WPA2-PSK, WPA3-SAE. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9.4 W

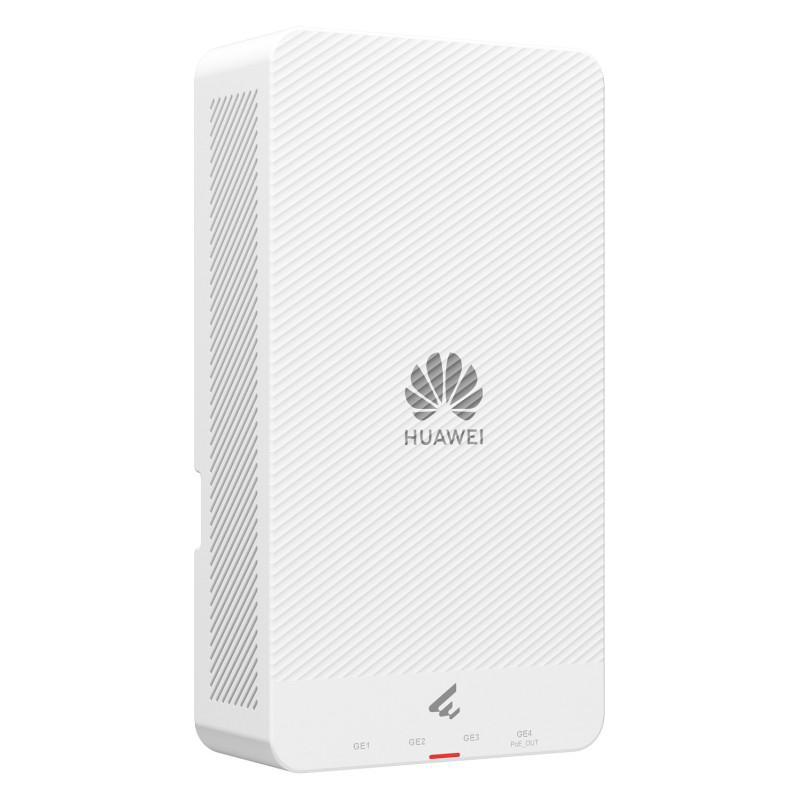

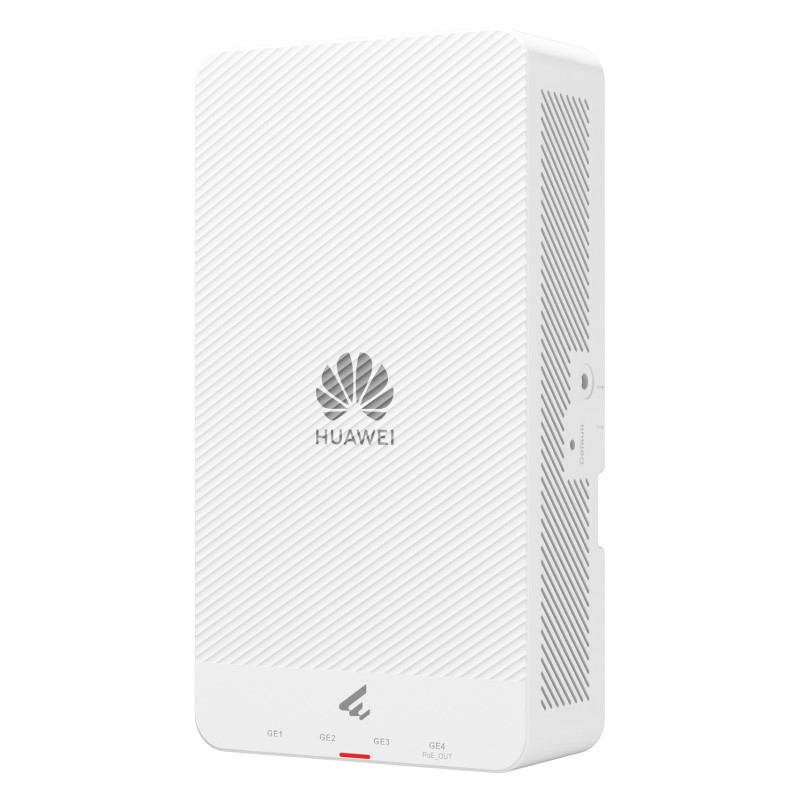

Huawei eKitEngine AP266 is an indoor slim wall plate access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands with four spatial streams, delivering a data rate of up to 2.975 Gbps.

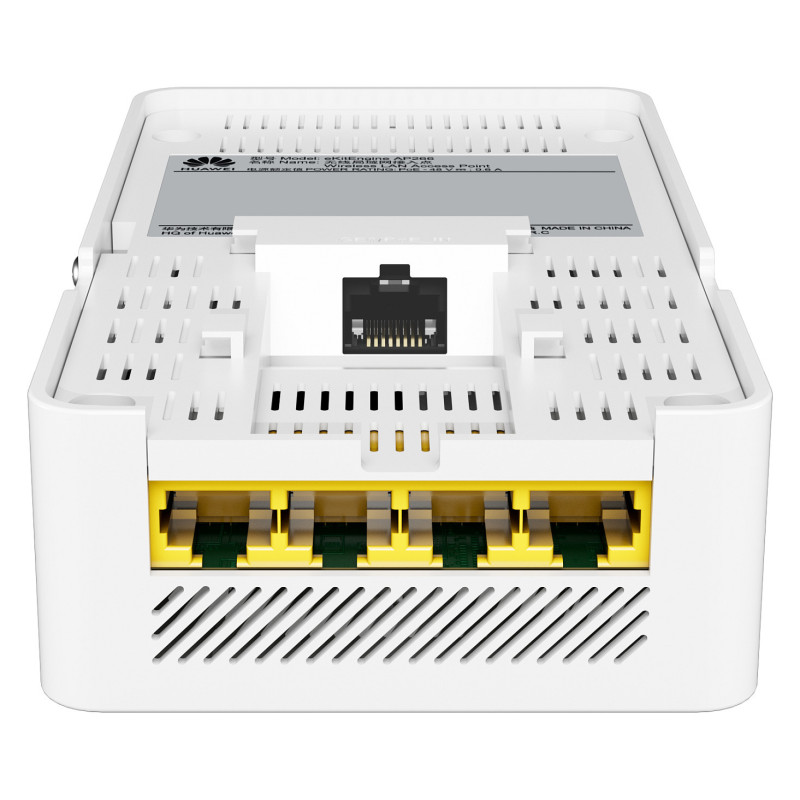

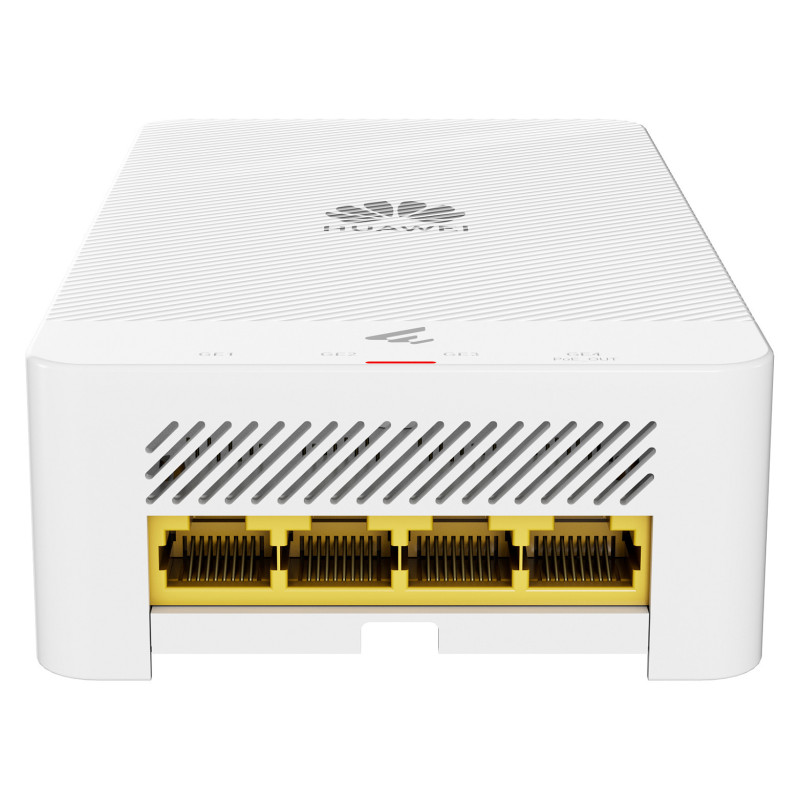

The AP provides one GE uplink port and four GE downlink ports (one supporting PoE OUT). It can be installed on a desk, wall, ceiling, or junction box, meeting connection requirements in multiple scenarios. The AP is small and easy to deploy, ideal for indoor coverage scenarios such as budget hotels, hospitals, commercial stores, and schools.

You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed together, simplifying network O&M.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2975 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
Cabling technology: 10/100/1000Base-T(X)
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Maximal-Ratio Combining (MRC)
Feature: Cyclic Delay Diversity (CDD)
Feature: Cyclic Shift Diversity (CSD)
Feature: Dynamic Frequency Selection (DFS)
Feature: BeamForming

Security

Security algorithms: SSH-2, WPA2-PSK, WPA3-SAE
Feature: DHCP snooping
Feature: Access Control List (ACL)

Protocols

Feature: DHCP server
Feature: DHCP client

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 9.4 W

Design

Placement: Ceiling, Pole, Wall
Product colour: White

Antenna

Antenna type: Internal

Performance

Feature: Built-in processor
Processor frequency: 1200 MHz
Flash memory: 256 MB
Internal memory: 256 MB

Weight & dimensions

Width: 86 mm
Depth: 38 mm
Height: 160 mm
Weight: 230 g

Packaging data

Package width: 108 mm
Package depth: 68 mm
Package height: 187 mm
Package weight: 420 g

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: -60 - 5000 m
