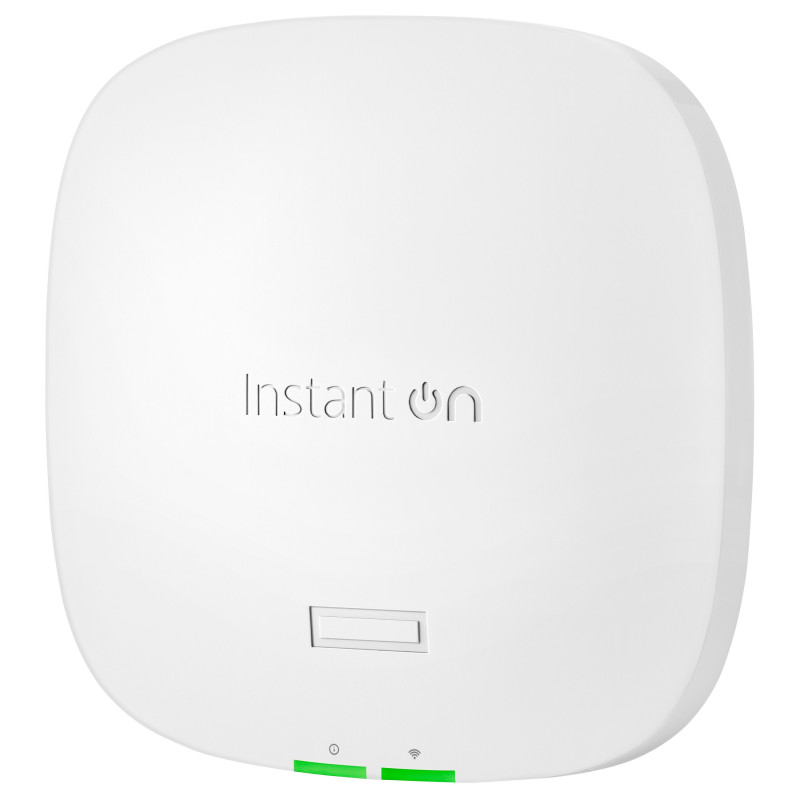

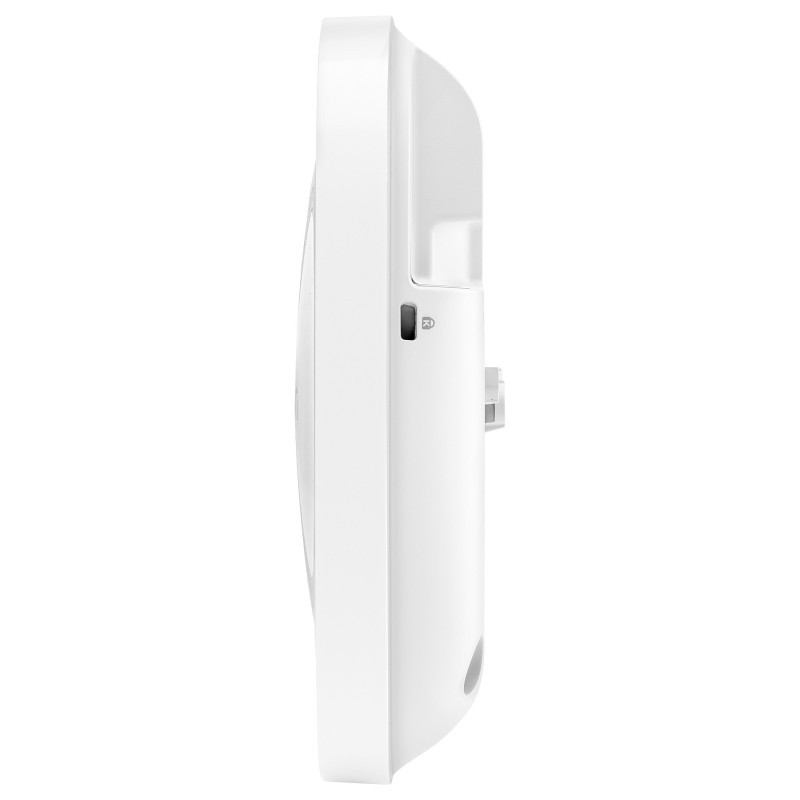

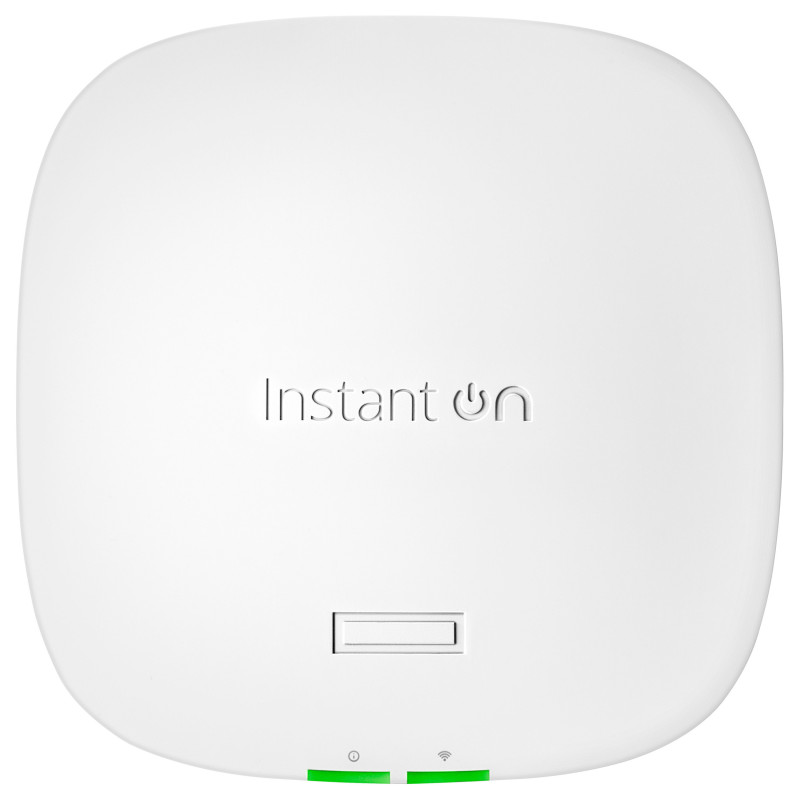

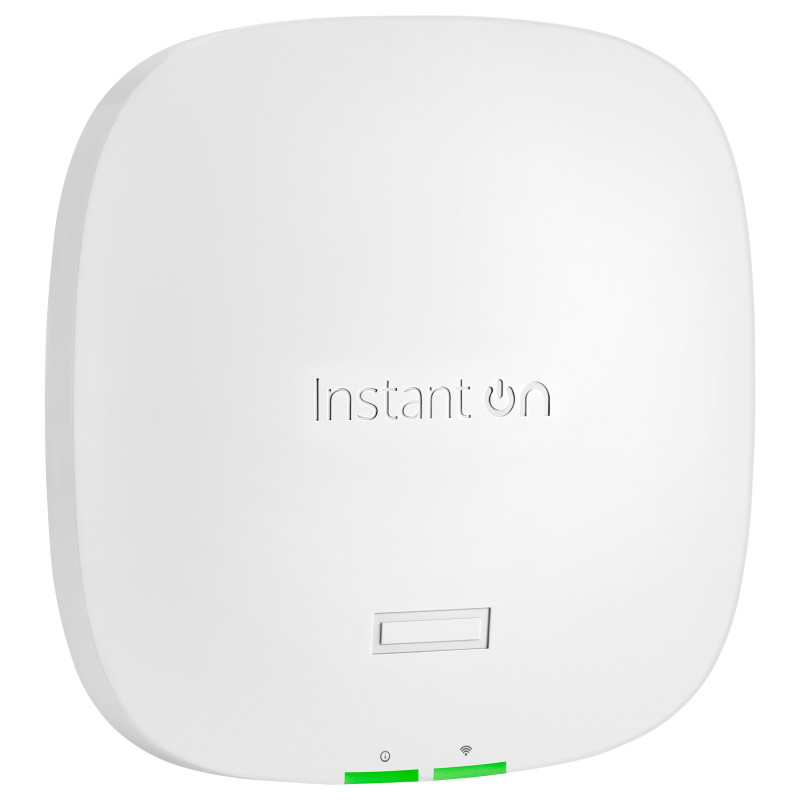

HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E (RW) AP32

HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E (RW) AP32. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: OWE, WPA2, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 12.9 W
The HPE Networking Instant On Access Point AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point built to bring future-ready connectivity to small and medium businesses. The AP32 supports the new 6E wireless protocol that broadcasts on the 6 GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the AP32 comes with a 2.5 GbE uplink port and PoE to make connectivity and power easy. With a 2x2 antenna array supporting 2 spatial streams, the AP32 provides robust connectivity for up to 75 devices and 2.8 Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5 GHz and 6 GHz bands to achieve faster throughput speed, or switch to 2.4 GHz and 6 GHz for impressive range for modern laptops or smartphones.
What is new supporting point:
Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.
2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.
6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.
Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
Maximum data transfer rate: 2400 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Maximum data transfer rate (6 GHz): 2400 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Networking standards: IEEE 802.11ax
Number of users: 75 user(s)
MIMO: Yes
MIMO type: Multi User MIMO

Security

Security algorithms: OWE, WPA2, WPA3

Management features

Web-based management: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
DC voltage range: 12 V
Power consumption (max): 12.9 W

Design

Placement: Ceiling, Wall
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
LED indicators: Reset, Status

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 2
Antenna gain level (max): 4.5 dBi

Certificates

Certification: Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Weight dimensions

Width: 160 mm
Depth: 39 mm
Height: 160 mm
Weight: 520 g

Other features

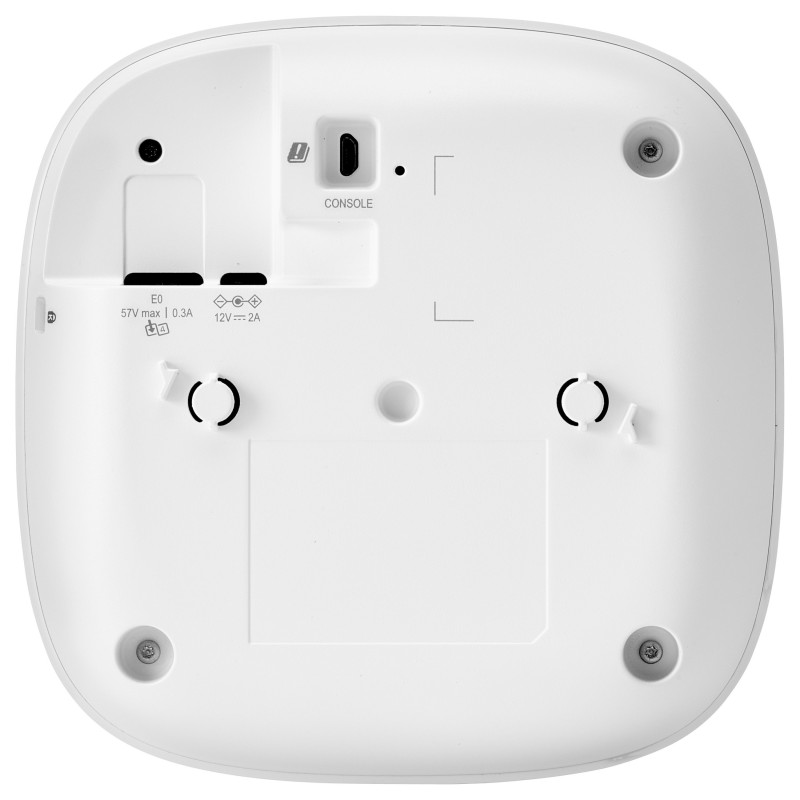

I/O ports: 1x 2.5 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot
Mounting: Ceiling/Wall-mount clip

Operational conditions

Operating temperature (T-T): 0 - 40 °C
