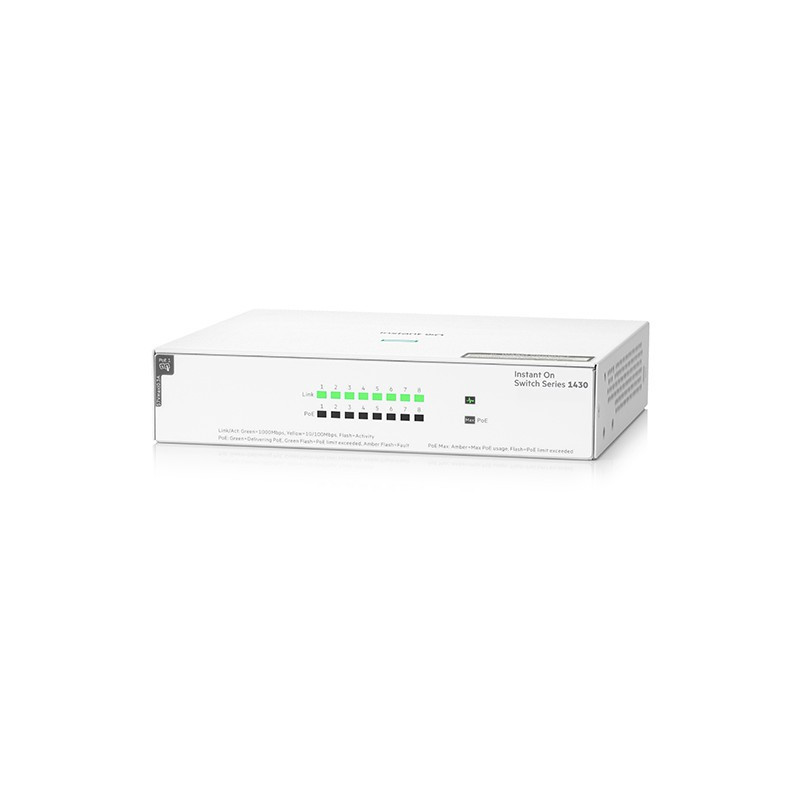

HPE Aruba Networking Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430

HPE Aruba Networking Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE.... Power over Ethernet (PoE)

The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

What is new supporting point:
No configuration or management needed.
Fan-less design for silent deployment in office spaces.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.

Management features

Switch type: Unmanaged
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-sensing

Data transmission

Switching capacity: 16 Gbit/s
Throughput: 11.9 Mpps
MAC address table: 8192 entries
Latency (10-100 Mbps): 2.7 µs
Latency (1 Gbps): 1.8 µs
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 2 MB

Design

Product colour: White

Performance

Feature: Fanless

Power

Power source: AC
Feature: Power supply included
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 90 W
Power consumption note: Maximum: 90W Idle: 4.1W
Power supply note: External Power Adapter

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 64 W

Other features

Memory and processor: 128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance management: Unmanaged
Weight (imperial): 0.771 kg (1.7 lbs)
Dimensions (W x D x H) (imperial): 150.1 x 177 x 37.1 mm (5.91 x 6.97 x 1.46")

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 90%

Weight & dimensions

Width: 150 mm
Depth: 177 mm
Height: 37 mm
Weight: 770 g
