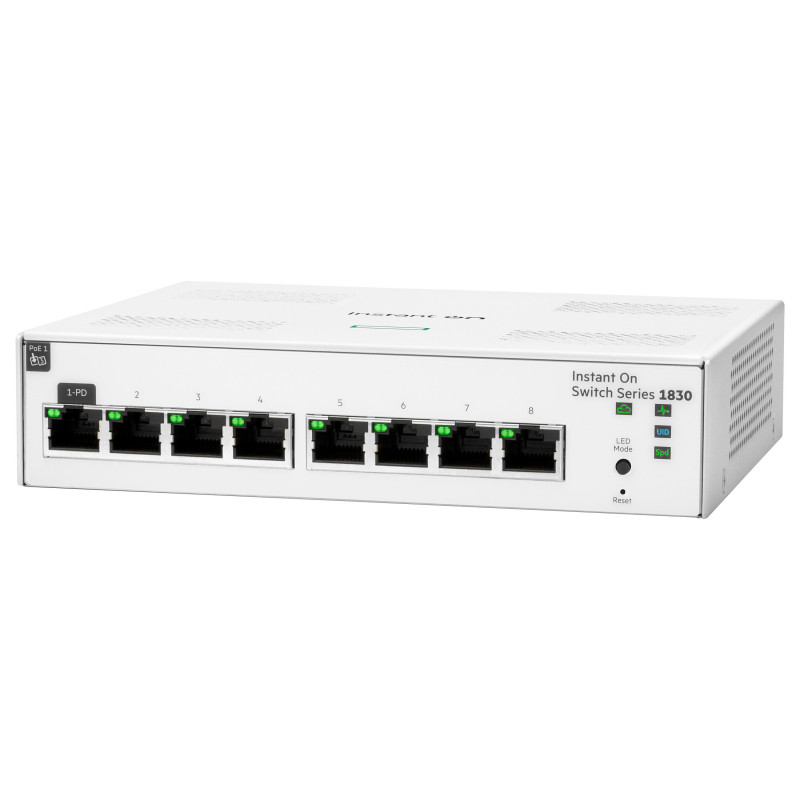

HPE Aruba Networking Networking Instant On Switch 8p Gigabit 1830

HPE Aruba Networking Networking Instant On Switch 8p Gigabit 1830. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting

HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

What is new supporting point:
Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
Option to manage your switches through local web GUI.
Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: Auto-negotiation
Feature: VLAN support

Data transmission

Switching capacity: 16 Gbit/s
Throughput: 11.9 Mpps
MAC address table: 8000 entries
Latency (10-100 Mbps): 5.2 µs
Latency (1 Gbps): 2.8 µs
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: SSH/SSL support

Design

Feature: Rack mounting

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: SDRAM
Internal memory: 512 MB
Flash memory: 256 MB
Feature: Fanless

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 5.9 W
Power consumption note: Maximum: 100-127V: 8.09W 200-220V: 8.05W; Idle: 100-127V: 5.8W 200-220V: 5.9W

Other features

Memory and processor: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
I/O ports: 8 RJ-45 10/100/1000 ports
Performance management: HPE Networking Instant On Cloud; Web browser; SNMP Manager
Weight (imperial): 0.771 kg (1.7 lbs)
Dimensions (W x D x H) (imperial): 157 x 173 x 39.1 mm (6.18 x 6.81 x 1.54")

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 95%

Weight & dimensions

Width: 157 mm
Depth: 173 mm
Height: 39.1 mm
Weight: 770 g

Logistics data

Harmonized System (HS) code: 85176990
