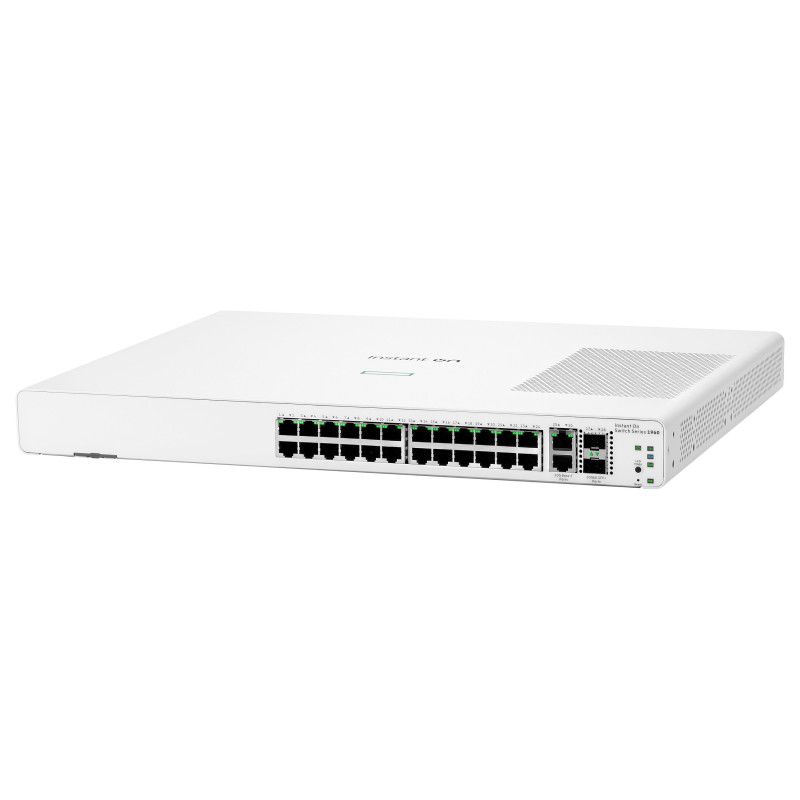

HPE Aruba Networking Networking Instant On Switch 24p Gigabit 2p 10GBT 2p SFP+ 1960

HPE Aruba Networking Networking Instant On Switch 24p Gigabit 2p 10GBT 2p SFP+ 1960. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What is new supporting point:
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 2

Network

Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support

Data transmission

Switching capacity: 128 Gbit/s
Throughput: 95 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 4.4 µs
Latency (1 Gbps): 2.2 µs
Latency (10 Gbps): 1.1 µs
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: Port-based authentication
Authentication type: RADIUS

Multicast features

Feature: Multicast support

Protocols

IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
IPv4 FIB entries: 32
IPv6 FIB entries: 32

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: White

Performance

Physical stacking (units): 4
Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: DDR3-SDRAM
Internal memory: 1024 MB
Flash memory: 512 MB

Power

Feature: Power supply included
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 80 W
Power consumption note: Maximum: 100-127V: 60W 200-220V: 80W Idle: 100-127V: 30W 200-220V: 40W

Other features

Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB
Performance management: HPE Networking Instant On Cloud; Web browser; SNMP Manager
Weight (imperial): 3.95 kg (8.7 lbs)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 90%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 350.5 mm
Depth: 442.5 mm
Height: 44 mm
Weight: 3.9 kg

Logistics data

Harmonized System (HS) code: 85176990
