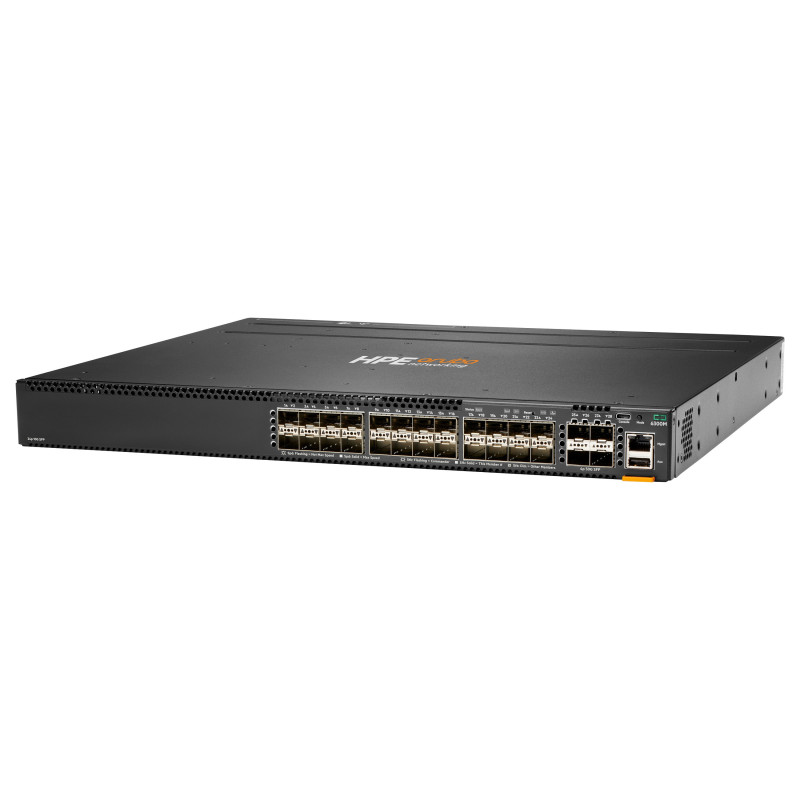

HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch

HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch. Switch type: Managed, Switch layer: L3. Installed SFP modules quantity: 4, Installed SFP+ modules quantity: 24, USB 2.0 ports quantity: 1, Console port: USB. MAC address table: 32000 entries, Switching capacity: 880 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Rack mounting

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
Installed SFP modules quantity: 4
Installed SFP+ modules quantity: 24
SFP module slots quantity: 4
SFP+ module slots quantity: 24
Console port: USB
USB 2.0 ports quantity: 1

Network

Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: Policy-based routing
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support

Optical fiber

Transmission distance (max): 10 km

Data transmission

Switching capacity: 880 Gbit/s
Throughput: 654 Mpps
MAC address table: 32000 entries
Latency (1 Gbps): 1.99 µs
Latency (10 Gbps): 1.49 µs
Number of queues: 9
Packet buffer memory: 8 MB

Security

DHCP features: DHCP relay, DHCP server
Feature: Access Control List (ACL)
IGMP entries: 8000
Feature: SSH/SSL support

Multicast features

Feature: Multicast support
IPv4 multicast entries: 8000
IPv6 multicast entries: 8000
Number of multicast groups filtered: 8000
MLD entries: 4000

Protocols

Routing protocols: OSPF, OSPFv3

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black
Airflow direction: Front-to-back airflow
Number of fans: 2 fan(s)

Performance

Physical stacking (units): 10
Feature: Built-in processor
Processor frequency: 1800 MHz
Memory type: DDR4-SDRAM
Internal memory: 8000 MB
Flash memory: 32000 MB
Noise level: 31 dB

Power

AC input voltage: 100 - 240 V
Power consumption (max): 85 W
Power consumption note: Idle: 51W 100% Traffic Rate: 85W

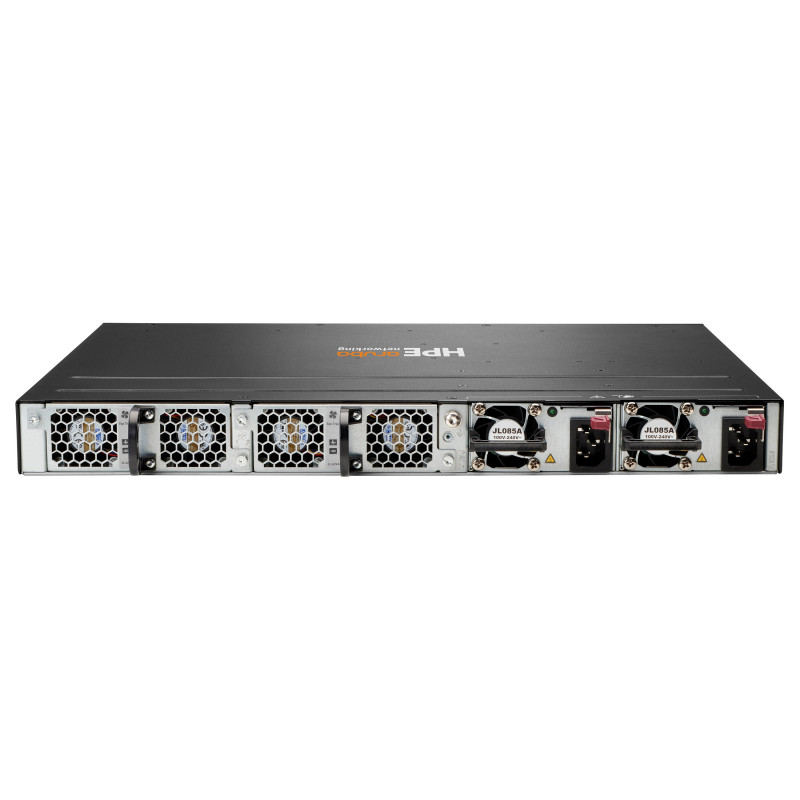

Power supply note: 2 field‐replaceable, hot‐swappable power supply slots 1 minimum power supply required (ordered separately). Supports JL085A PSU.

Other features

Latency: 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
I/O ports: 24 x 1G/10G SFP+ ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 5.11 kg (11.3 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2")

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 90%
Operating altitude: 0 - 3040 m
Non-operating altitude: 0 - 4600 m

Weight & dimensions

Width: 44 mm
Depth: 442 mm
Height: 385 mm
Weight: 5.11 kg

Packaging content

Feature: Rack mount kit

Certificates

Certification: EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013

Logistics data

Harmonized System (HS) code: 85176990
