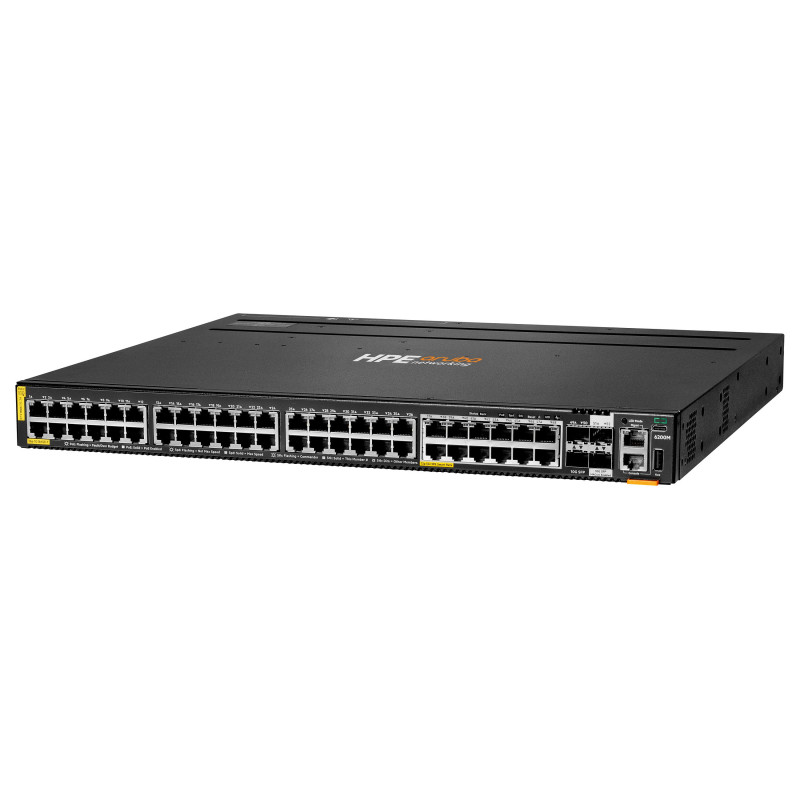

HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch

HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 272 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting
The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app

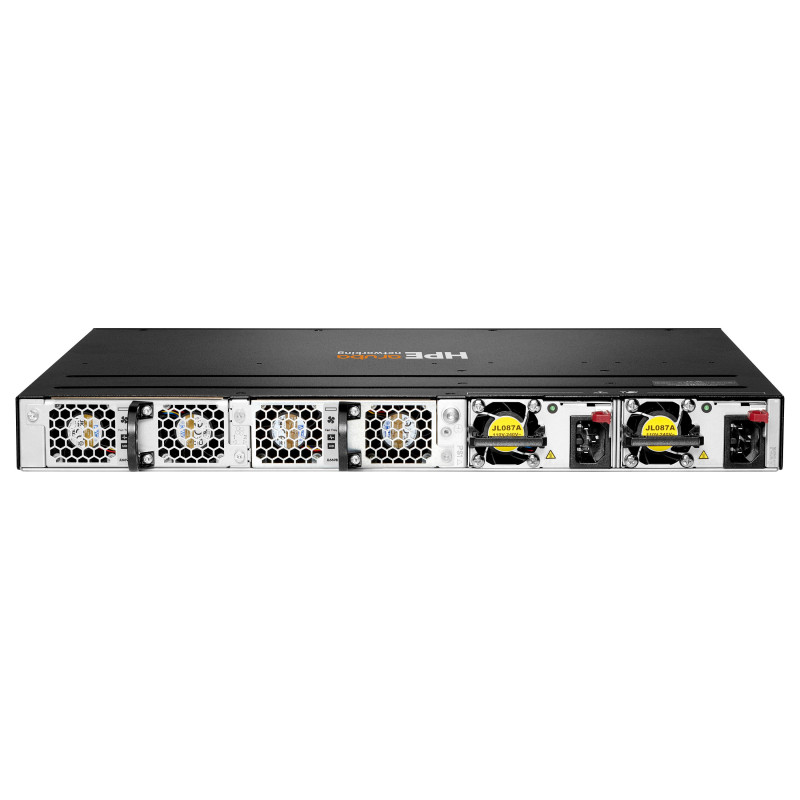

Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)

Management features

Switch type: Managed
Switch layer: L3

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 4
Console port: RJ-45/USB Type-C

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: 10G support

Data transmission

Switching capacity: 272 Gbit/s
Throughput: 130.9 Mpps
MAC address table: 32000 entries
Packet buffer memory: 8 MB

Design

Feature: Rack mounting
Feature: Stackable

Performance

Physical stacking (units): 8
Feature: Built-in processor
Processor model: ARM Cortex-A72
Processor frequency: 1800 MHz
Memory type: DDR4-SDRAM
Internal memory: 8000 MB
Flash memory: 16000 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 200 - 240 V
Power consumption (typical): 76 W
Power consumption note: 76W at 230 VAC

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 60 W
Total Power over Ethernet (PoE) budget: 1440 W

Other features

Latency: 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Memory and processor: CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 6.01 kg (13.2 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1")
Fan: Fixed fans

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight dimensions

Width: 43.9 mm
Depth: 442.5 mm
Height: 383.8 mm
Weight: 6.01 kg
