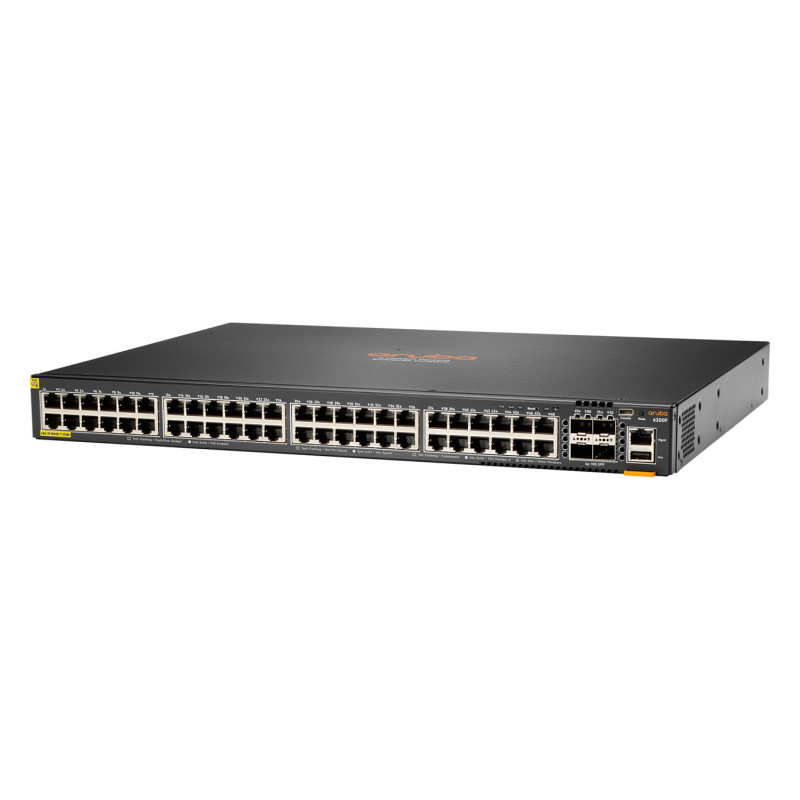

HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 370W Switch

HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 370W Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.

What is new supporting point:
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/USB Type-C

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support

Optical fiber

Transmission distance (max): 10 km

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 130.9 Mpps
MAC address table: 32768 entries
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
Packet buffer memory: 8 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: MAC-based authentication
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U

Performance

Physical stacking (units): 8
Feature: Built-in processor
Processor model: ARM Cortex-A72
Processor frequency: 1800 MHz
Memory type: DDR4-SDRAM
Internal memory: 8000 MB
Flash memory: 16384 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 76 W
Power consumption note: 76W at 230 VAC
Power supply note: Fixed power supply Up to 370W of Class 4 PoE Power

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W

Other features

Latency: 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Memory and processor: CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 5.1 kg (11.2 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442 x 327.7 mm (1.73 x 17.4 x 12.9")
Fan: Fixed fans

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 43.9 mm
Depth: 442 mm
Height: 327 mm
Weight: 5.1 kg
