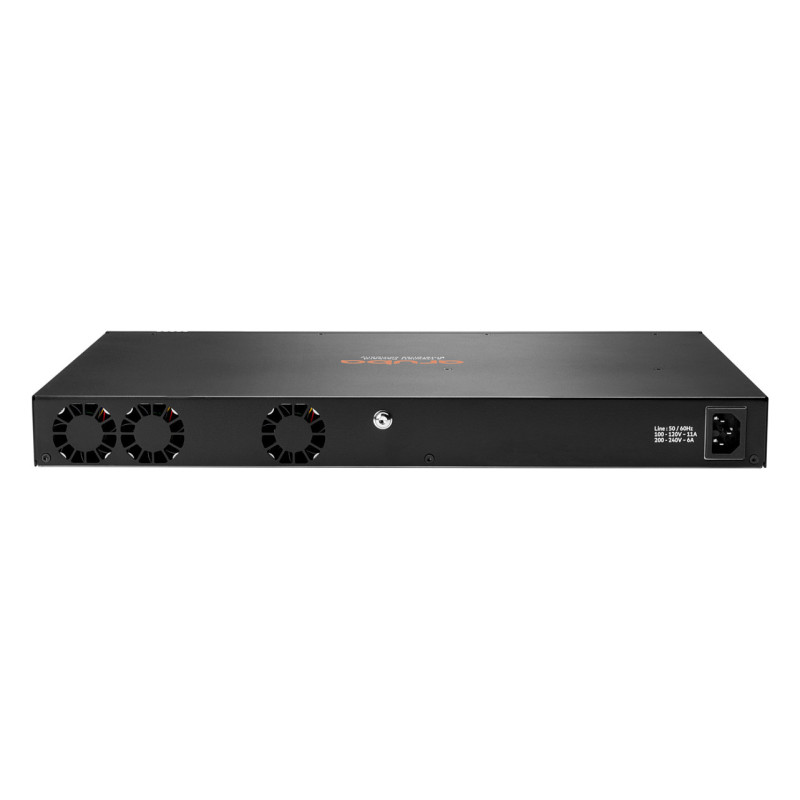

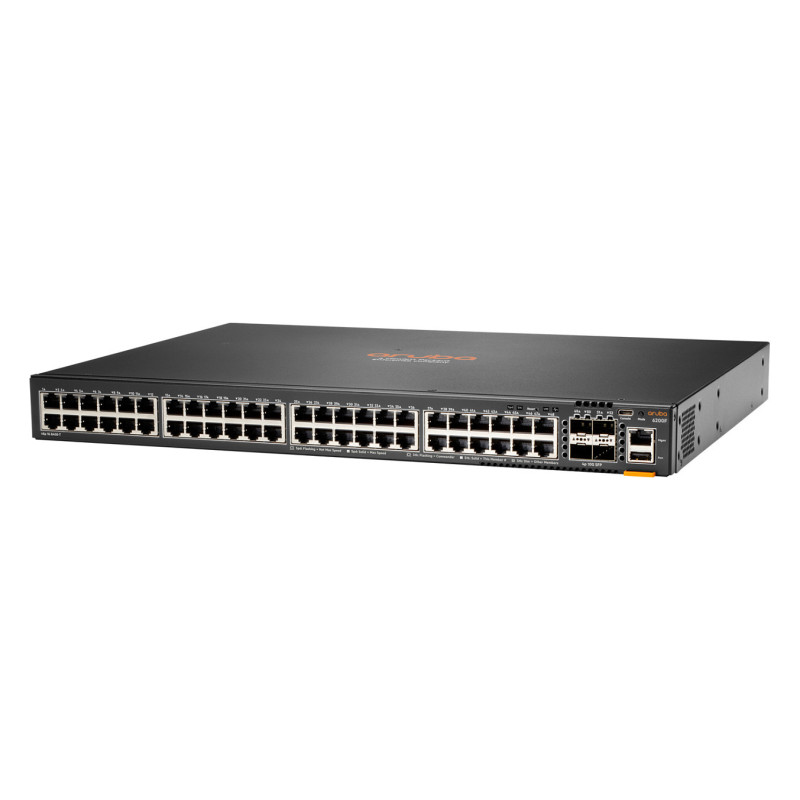

HPE Aruba Networking CX 6200F 48G 4SFP+

HPE Aruba Networking CX 6200F 48G 4SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1U

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
Make your network ready for tomorrow's unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and wireless APs.

Features

Automation and Analytics
- The Aruba CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
- The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
- The Aruba CX Mobile App simplifies connecting, stacking, and managing Aruba CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.

Performance and Power
- The Aruba CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
- Deploy wireless access points and IoT devices with Aruba CX 6200 models that support up to 740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.

Smarter Segmentation
- The Aruba CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/USB Type-C

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: VLAN support

Optical fiber

Transmission distance (max): 10 km

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 130.9 Mpps
MAC address table: 32768 entries
Latency (1 Gbps): 2.28 µs
Latency (10 Gbps): 1.46 µs
Feature: Jumbo frames support
Packet buffer memory: 8 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U

Performance

Physical stacking (units): 8
Feature: Built-in processor
Processor model: ARM Cortex-A72
Processor frequency: 1800 MHz
Memory type: SDRAM / Flash
Internal memory: 8192 MB
Flash memory: 16384 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 68 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m

Weight & dimensions

Width: 442 mm
Depth: 327 mm
Height: 43.9 mm
Weight: 5.1 kg
