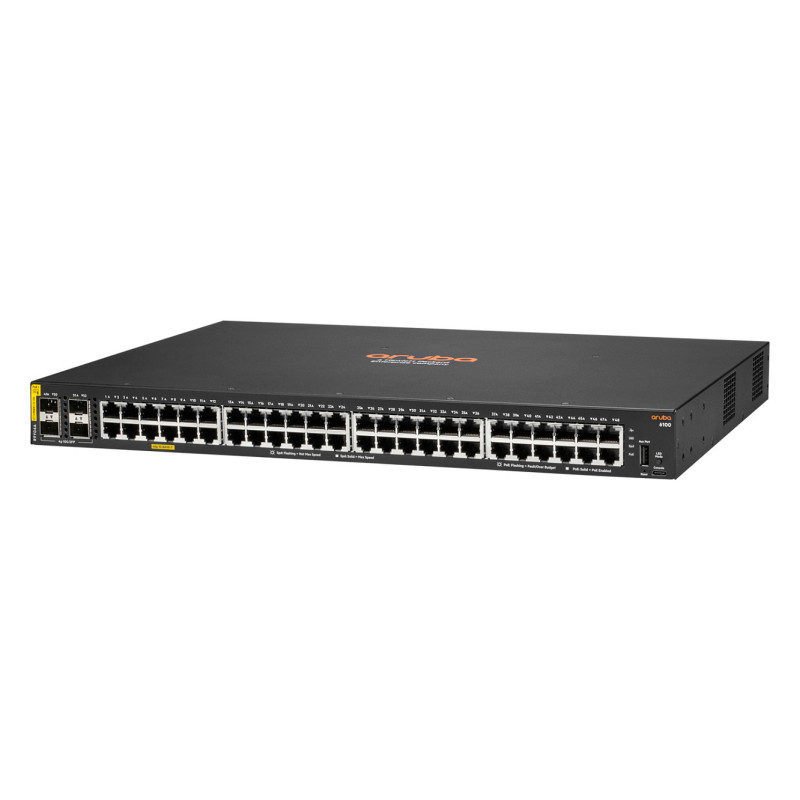

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.
Features
Entry Level Aruba CX Access Layer Switches
- The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- Using Aruba AOS-CX operating system across HPE Aruba Networking CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
- The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
- The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Feature: 10G support
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4094

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 98.6 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs
Packet buffer memory: 12.38 MB

Security

DHCP features: DHCP relay, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1, SNMPv2c, SNMPv3

Design

Feature: Rack mounting
Form factor: 1U
Feature: Wall mountable
Airflow direction: Side-to-side airflow

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16384 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 890 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 740 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 90%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4600 m

Weight dimensions

Width: 442.5 mm
Depth: 324.2 mm
Height: 43.9 mm
Weight: 4.7 kg
