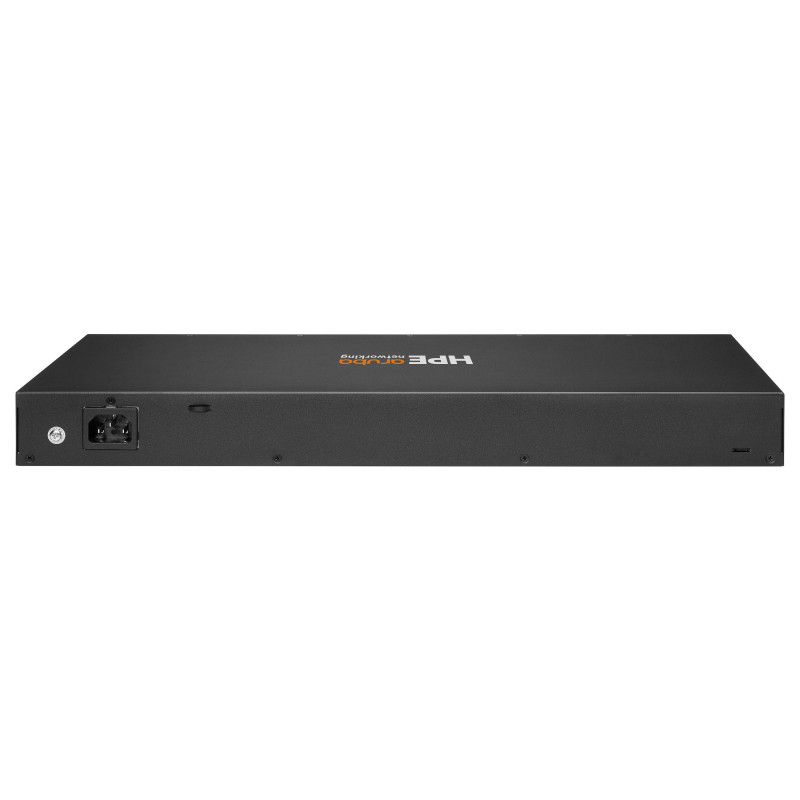

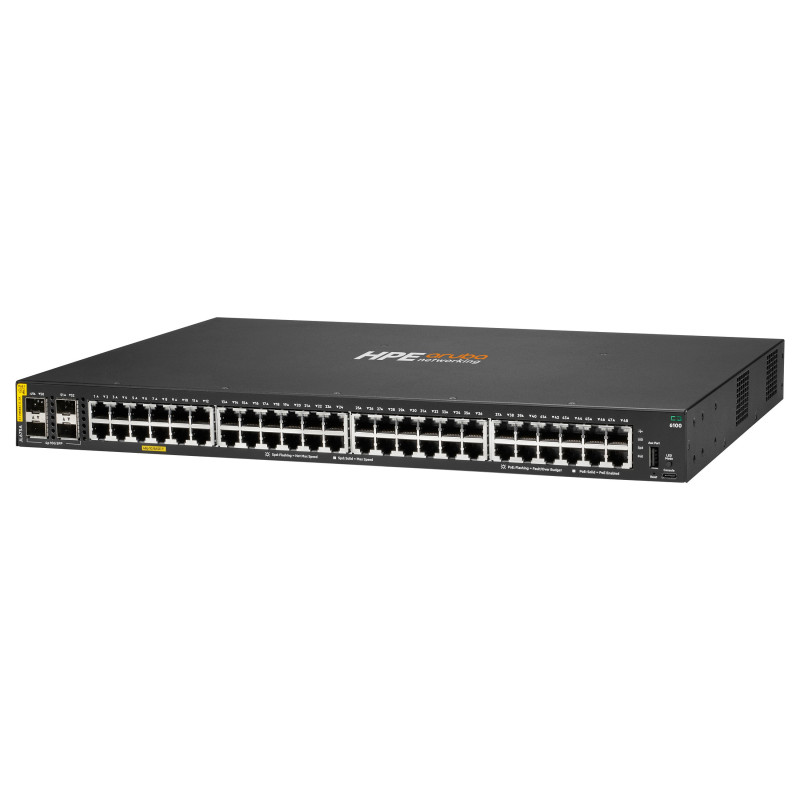

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.

What is new supporting point:
It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
It has compact and fan-less 12-port PoE model for space-constrained deployments
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: VLAN support

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 98.6 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs
Feature: Jumbo frames support
Packet buffer memory: 12.38 MB

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: MAC-based authentication
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
Airflow direction: Side-to-side airflow

Performance

Virtual stacking (units): 16
Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 45 W
Power consumption note: Max. Power (w/o PoE): 45W Max. Power (w/ PoE): 480W
Power supply note: Fixed power supply

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W

Other features

Latency: 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec
Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
I/O ports: 48 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 5.02 kg (11.1 lbs)
Fan: Fixed fans

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 90%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 44 mm
Depth: 442 mm
Height: 305 mm
Weight: 5 kg

Logistics data

Harmonized System (HS) code: 85176990
