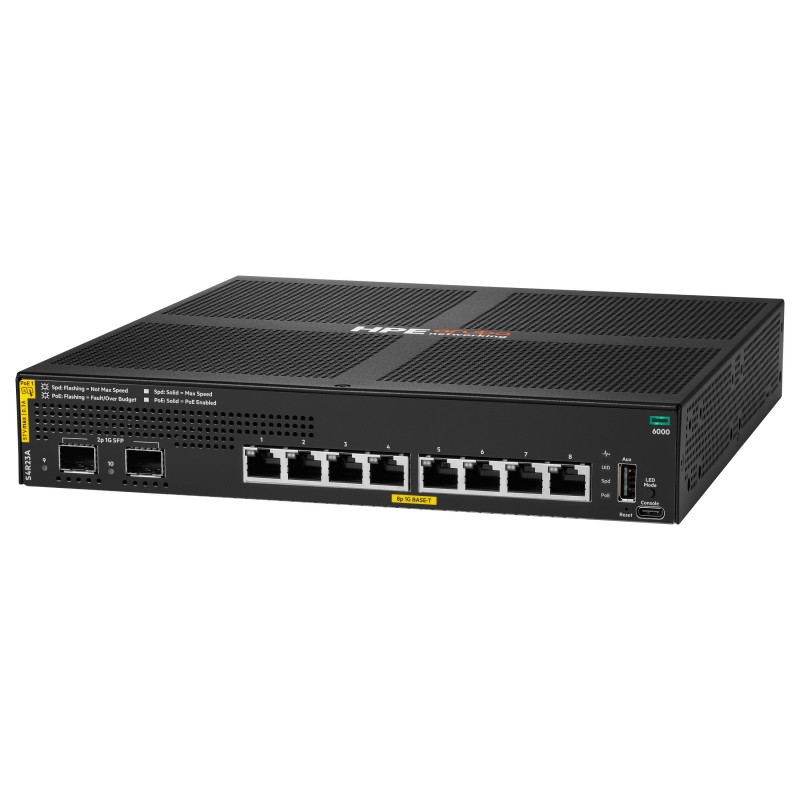

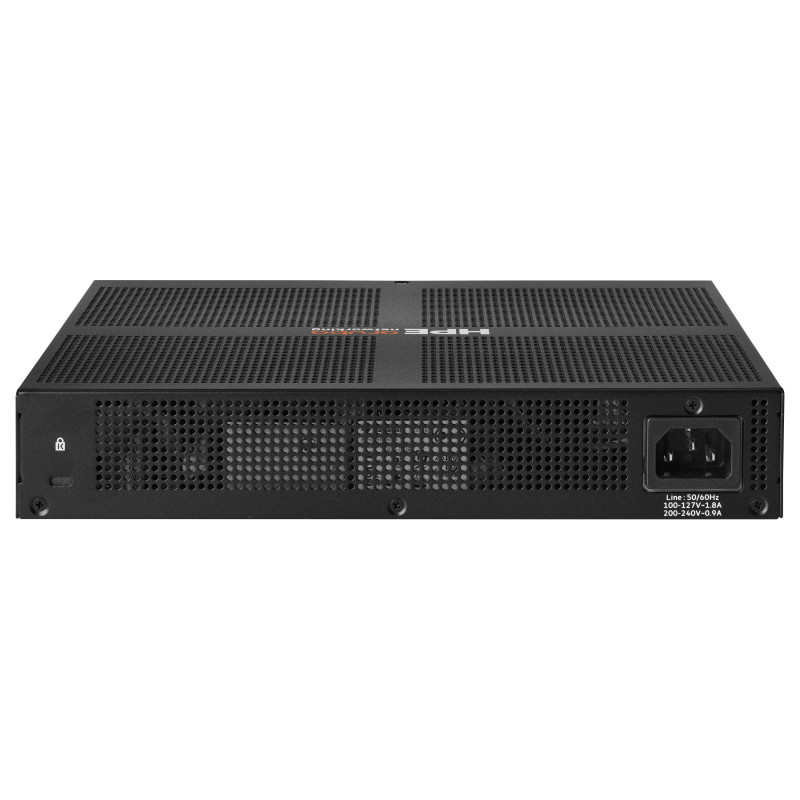

HPE Aruba Networking CX 6000 8p 10M / 100M / 1G Class4 PoE 2p SFP 1G 67W Switch

HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: USB. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3at, IEEE 802.3af. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.

What is new supporting point:
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Console port: USB

Network

Networking standards: IEEE 802.3at, IEEE 802.3af

Data transmission

Switching capacity: 20 Gbit/s
Throughput: 14.8 Mpps
Latency (1 Gbps): 3.2 µs
Feature: Static route

Security

Feature: Access Control List (ACL)
Authentication: MAC-based authentication

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4000 MB
Flash memory: 16000 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 200 - 240 V
Power consumption (max): 16.3 W
Power consumption note: Max. Power (w/o PoE): 16.3W Max. Power (w/ PoE): 98W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 67 W

Other features

Latency: 1 Gbps: 3.2 μSec
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
I/O ports: 8 x 10/100/1000BASE-T Class 4 PoE ports 2 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Operational conditions

Operating temperature (T-T): 0 - 40 °C
