HPE Aruba Networking CX 5420 6-slot Switch

HPE Aruba Networking CX 5420 6-slot Switch. Switch type: Managed, Switch layer: L3. Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 4U

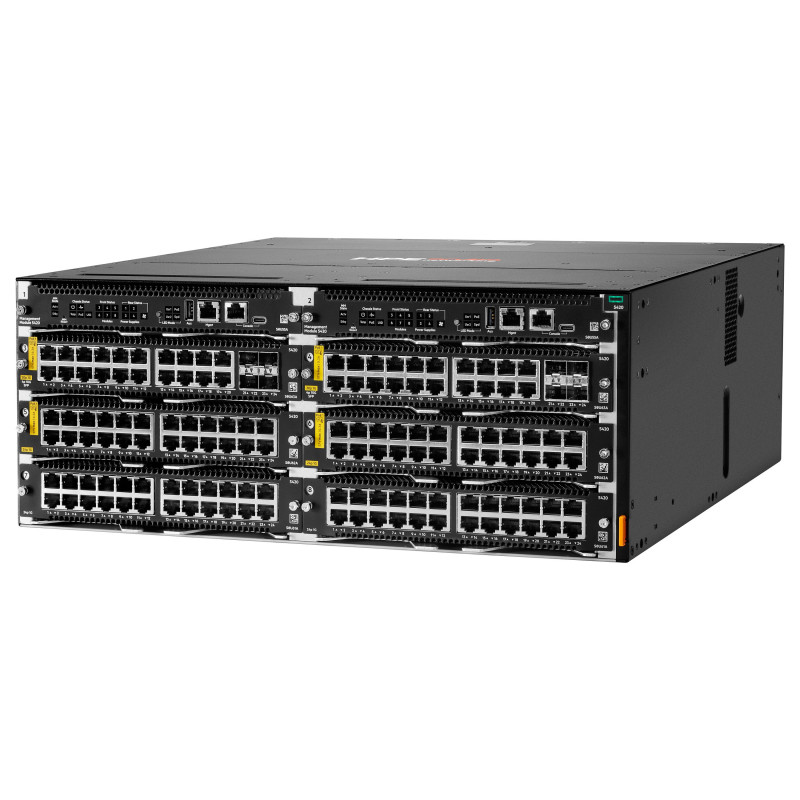

The HPE Aruba Networking CX 5420 Switch Series is an intelligent, flexible and modular Layer 3 switch chassis created for today's enterprise small and medium campus, branch enterprise networks with built-in MACsec hardware capability, analytics and automation. The CX 5420 series chassis is part of the CX switching portfolio that provides an enterprise-class access layer solution that is easy-to-deploy, simple, secure and resilient. By combining a modern, fully programmable OS with HPE Aruba Networking Network Analytics Engine (NAE), the CX 5420 series provides industry-leading monitoring and troubleshooting capabilities across the network. A powerful Gen7 ASIC architecture delivers performance and extensive feature support with flexible programmability for the tomorrow's applications. This advanced modular 4U chassis switch offers up to 960 Gbps with low latency, 6 half-width line card slots, VSX live upgrade, and HPE Smart Rate 10GbE up to 90W Class-8 PoE with BGP/OSFP/PIM support.
What is new supporting point:
Automated, unified role-based policies for users, Internet of Things (IoT) and devices with HPE Aruba Networking dynamic segmentation and intelligent monitoring, visibility, and remediation with NAE.
High performance switching with up to 960 Gbps using 714 Mpps, built-in high availability with HPE Aruba Networking Virtual Switching Extension (VSX) live upgrade and Always-On PoE.
Simplified operations with the common HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio delivering a more consistent, more efficient operator experience.
Easy to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, with easy-to-use web GUI or industry-standard CLI.
Powerful, modular, intelligent Layer 3 switch chassis supporting BGP, HPE Aruba Networking Virtual Switching Extension (VSX), and OSPF with robust quality of service (QoS).
Flexibility with 6 half-width modules that allow growth when needed and support for port diversity in a condensed 4RU chassis with redundant MM and PSU.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support

Network

Networking standards: IEEE 802.3bt
Feature: 10G support

Data transmission

Switching capacity: 960 Gbit/s
Throughput: 714 Mpps
Forwarding rate: 160 Mpps
Packet buffer memory: 64 MB

Protocols

Routing protocols: BGP, OSPF

Design

Feature: Rack mounting
Form factor: 4U
Product colour: Black

Performance

Memory type: DDR4-SDRAM
Internal memory: 16000 MB
Flash memory: 32 MB

Power

Power source: AC/PoE
Number of power supply units: 4
AC input voltage: 200 - 240 V
Power consumption (typical): 1000 W
Power consumption note: 1600W @ 200-240Vac, 1000W @ 100-127Vac

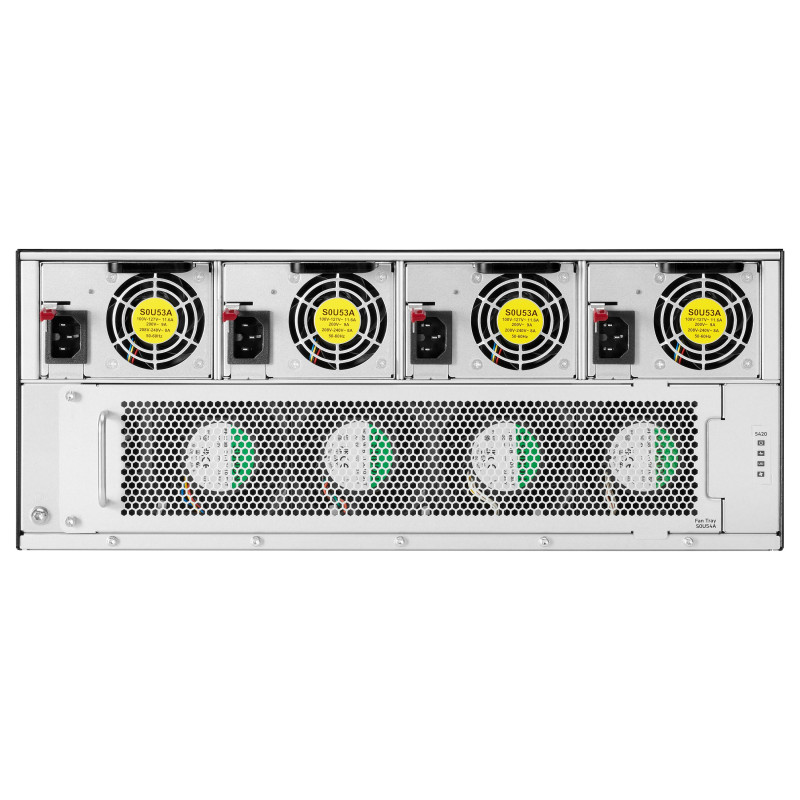

Power supply note: Supports 4 field replaceable and hot-swappable power supply slots

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Other features

Latency: 2.5 micro sec
Memory and processor: 16GB DDR4 SODIMM with ECC, 32GB eMMC Flash memory. 64MB shared packet buffer memory shared dynamically among ports
I/O ports: 6-line card slots up to 160 Gb/s forwarding per slot
Performance management: HPE Aruba Networking Central Network Management HPE Aruba Networking Switch Multi-Edit Software Command-line interface SNMP v2c/v3 RMON

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight dimensions

Width: 229 mm
Depth: 213 mm
Height: 33 mm
Weight: 840 g

Logistics data

Dangerous goods class: Class 8
