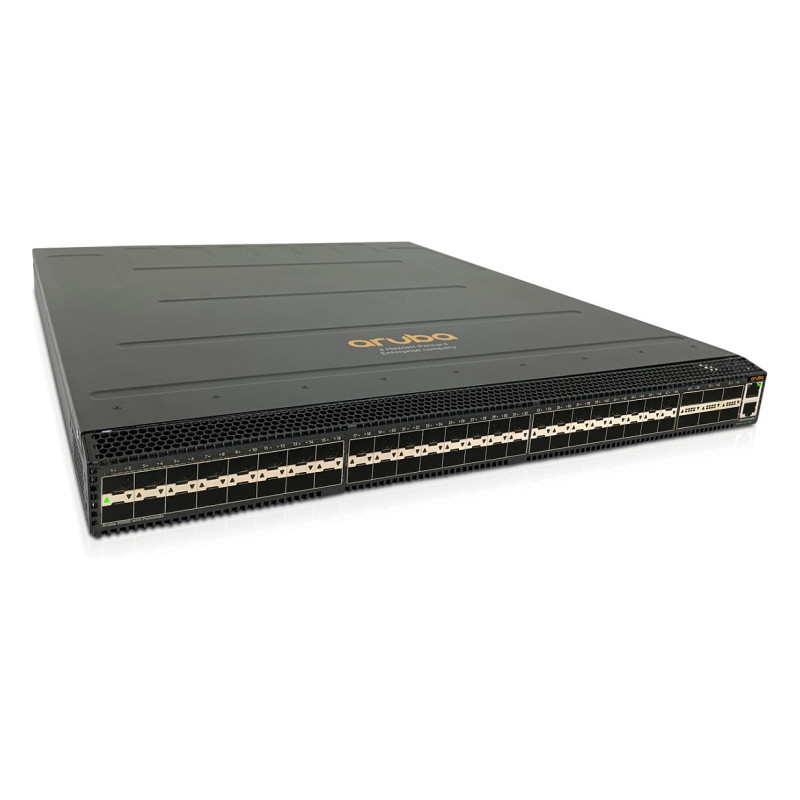

HPE Aruba Networking CX 10000-48Y6C

HPE Aruba Networking CX 10000-48Y6C. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. MAC address table: 98304 entries, Switching capacity: 3600 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

The Aruba CX 10000 Switch Series with Pensando is a category of switch that combines best-of-breed Aruba data center L2/3 switching with the industry's first hardware-accelerated programmable processor (Pensando® P4). The Aruba CX 10000 delivers stateful software-defined services inline, at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional data center L2/3 switches at a fraction of their TCO.

Features

Improves Network Bandwidth and Performance
- Aruba CX 10000 Switch Series with Pensando offers a unique blend of performance and scale for distributing advanced networking and security services where it's impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point.
- Simplify application of services at the services network access layer edge.

Limit Security Appliance Sprawl and Cost
- Aruba CX 10000 Switch Series with Pensando improves network bandwidth and performance by not having to trombone local traffic to a centralized chokepoint, helping to improve security posture while limiting appliance sprawl complexity and cost.
- The Aruba CX 10000 provides a compelling architectural alternative that distributes these advanced services to the data center edge, with unified network and security automation and policy management.

Extend Zero Trust and Micro Segmentation
- Aruba CX 10000 Switch Series with Pensando allows operators to extend industry standard leaf-spine networking with 800G of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services—delivered inline, across every port, closer to critical enterprise applications.
- Organizations with dedicated SecOps teams can leverage Policy and Services and Manager (PSM) based on specific security roles and responsibilities for increased scalability and fault tolerance.

Simplify Operations
- Aruba CX 10000 Switch Series with Pensando is integrated with Aruba Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
- The Aruba CX 10000 integrates via a Rest API and provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
Fiber optic connector: QSFP28, SFP28
Console port: RJ-45/Micro-USB
QSFP28 ports quantity: 6
SFP28 ports quantity: 48

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Ethernet LAN data rates: 1000,10000,25000,40000,100000 Mbit/s
Feature: VLAN support
Virtual LAN features: Port-based VLAN
Number of VLANs: 4018

Data transmission

Switching capacity: 3600 Gbit/s
Throughput: 1940 Mpps
MAC address table: 98304 entries
Packet buffer memory: 32 MB

Security

DHCP features: DHCP server
Feature: IGMP snooping
Authentication type: RADIUS, TACACS+

Multicast features

IPv4 multicast entries: 4094
IPv6 multicast entries: 4094

Protocols

Routing protocols: BGP4, OSPF, OSPFv3, RIP-2, RIPng

Design

Feature: Rack mounting
Form factor: 1U

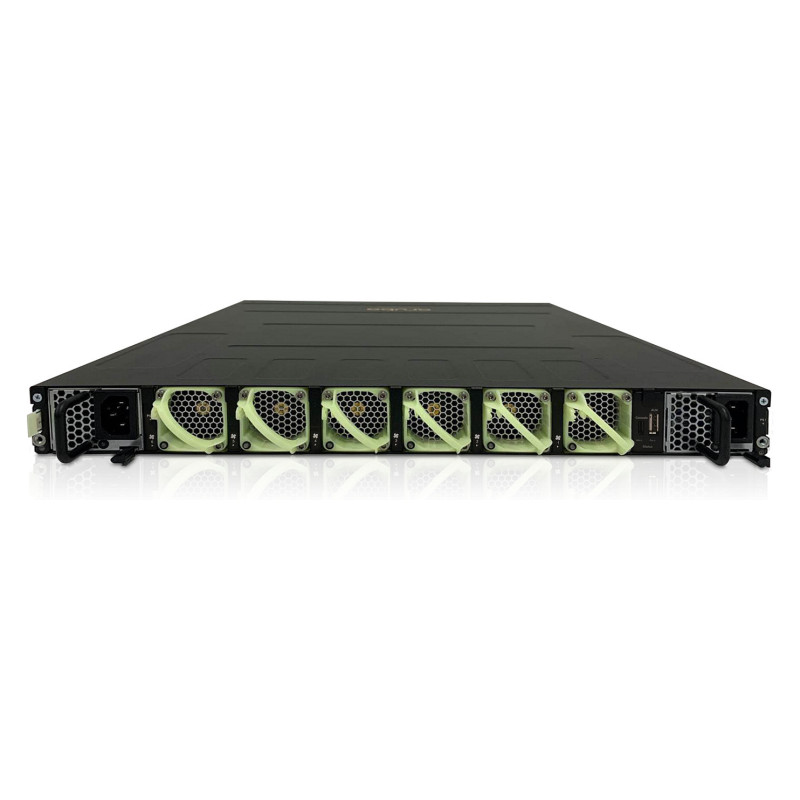

Ventilation system: Back-to-front airflow
Number of fans: 6 fan(s)

Performance

Feature: Built-in processor
Processor frequency: 2900 MHz
Memory type: RAM / Flash
Internal memory: 32768 MB
Flash memory: 8192 MB

Power

Power source: AC
Feature: Power supply included
Number of power supply units: 2
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 550 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 1876 BTU/h

Weight & dimensions

Width: 438.2 mm
Depth: 511 mm
Height: 44.4 mm
Weight: 9.75 kg
