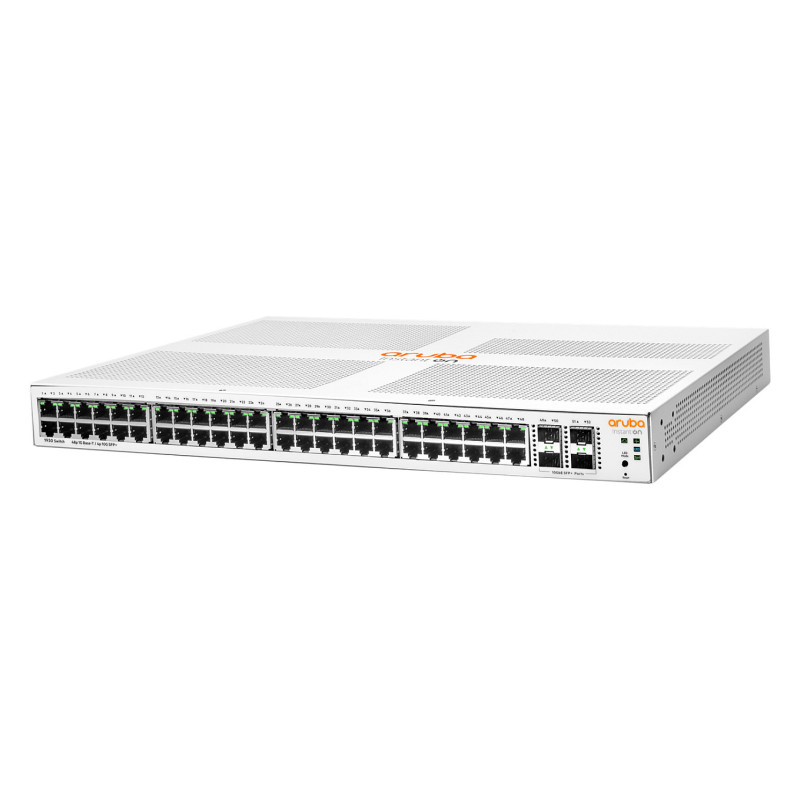

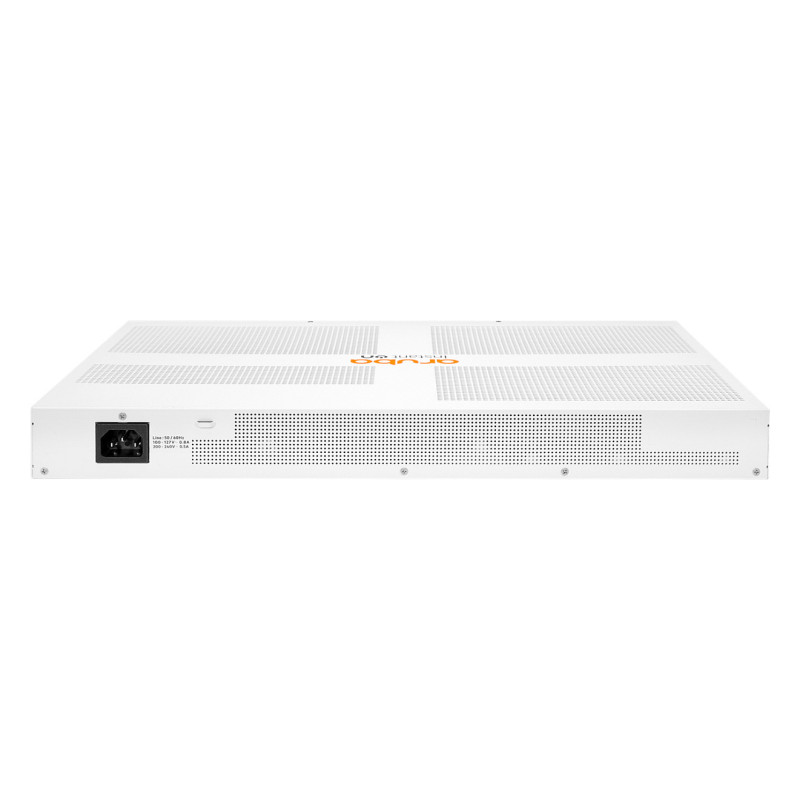

HPE Aruba Networking Aruba Instant On 1930 48G Class4 PoE 4SFP / SFP+ 370W

HPE Aruba Networking Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

Features

Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 130.95 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 4.5 µs
Latency (1 Gbps): 2.2 µs
Latency (10 Gbps): 1.2 µs
Feature: Jumbo frames support
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support

Design

Feature: Rack mounting
Form factor: 1U
Product colour: White

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: SDRAM / Flash
Internal memory: 512 MB
Flash memory: 256 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 520 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 95%
Operating altitude: 0 - 3048 m

Weight & dimensions

Width: 442.5 mm
Depth: 322.6 mm
Height: 43.9 mm
Weight: 4.59 kg
