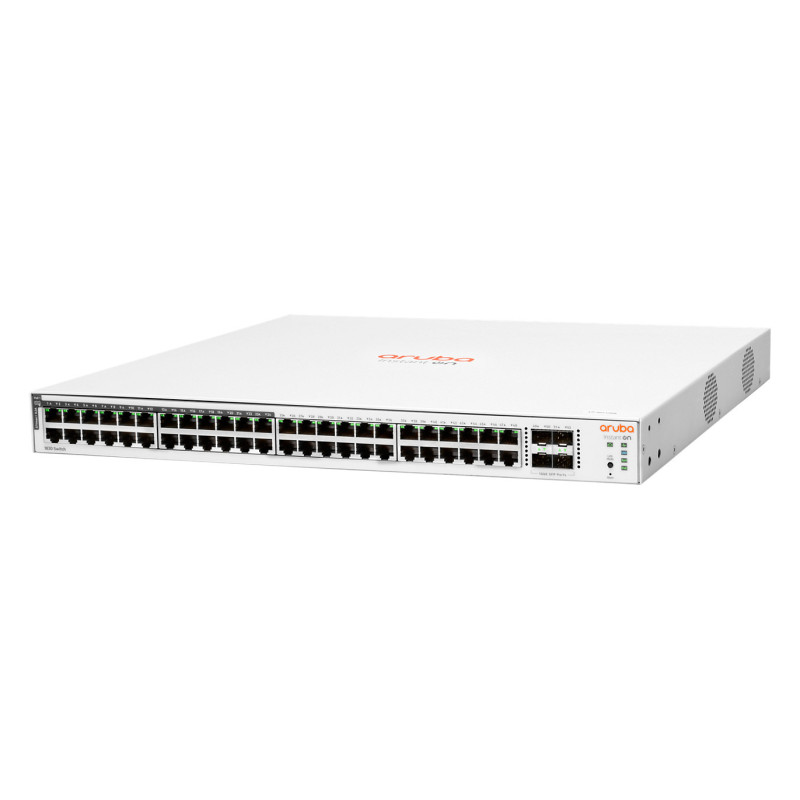

HPE Aruba Networking Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W

HPE Aruba Networking Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

Features

Gigabit Connectivity for Small Businesses
- Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.
- Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
- 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

Simplify Network Deployment and Management
- The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.

Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
- Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Better Energy Efficient Features for Reducing Environmental Footprint
- The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
- Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
- PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4

Network

Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support

Data transmission

Switching capacity: 104 Gbit/s
Throughput: 77.37 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 5.2 µs
Latency (1 Gbps): 2.8 µs
Feature: Jumbo frames support
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: SSH/SSL support

Design

Feature: Rack mounting
Form factor: 1U

Performance

Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: SDRAM
Internal memory: 512 MB
Flash memory: 256 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 462.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W

Weight & dimensions

Width: 351 mm
Depth: 443 mm
Height: 43.9 mm
Weight: 4.94 kg

Logistics data

Harmonized System (HS) code: 85176990
