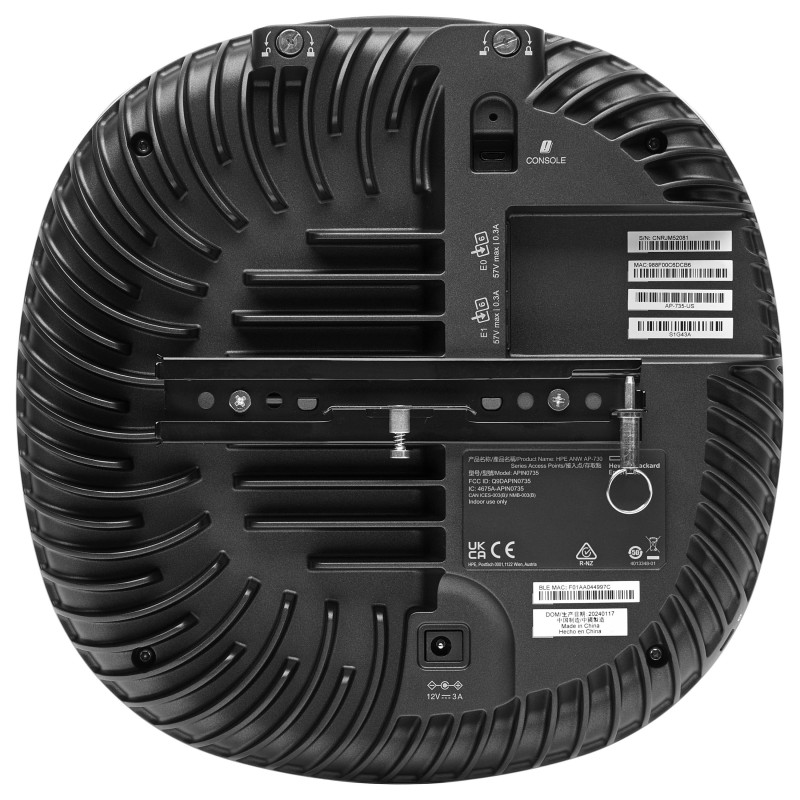

HPE Aruba Networking AP-735 (RW) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point

HPE Aruba Networking AP-735 (RW) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 5000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 36 W
The HPE Aruba Networking 730 Series Campus Access Points go beyond the Wi-Fi 7 standard to improve wireless performance, strengthen network security, deliver precise location-based services, and act as a secure Internet of Things (IoT) platform, enabling enterprises to increase the value of their wireless investment and unlock operational efficiencies. The 730 series includes unique ultra tri-band (UTB) filtering and dual 5 Gbps Ethernet ports to remove coverage gaps, provide greater resiliency, and deliver fast connectivity with enhanced security. HPE Aruba Networking Central provides intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 730 series includes a limited lifetime warranty.
What is new supporting point:
Wi-Fi 7 access points (APs) are ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments
Comprehensive tri‐band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate
Patented ultra tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands
High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
High availability with dual 5 Gbps ports for redundant Ethernet and power

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 2900 Mbit/s
Maximum data transfer rate (6 GHz): 5800 Mbit/s
Ethernet LAN data rates: 5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps
Networking standards: IEEE 802.11be, IEEE 802.11mc
Feature: Bluetooth
Bluetooth version: 5.4
Feature: Bluetooth Low Energy (BLE)
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Trusted Platform Module (TPM)
Feature: BeamForming
Feature: MACsec support

Security

Security algorithms: WPA, WPA2, WPA3

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 36 W

Design

Placement: Pole, Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Reset button
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional

Performance

Compatible operating systems: HPE Aruba Networking Wireless Operating System 10

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)

Weight dimensions

Width: 240 mm
Depth: 240 mm
Height: 56 mm
Weight: 1.44 kg

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
