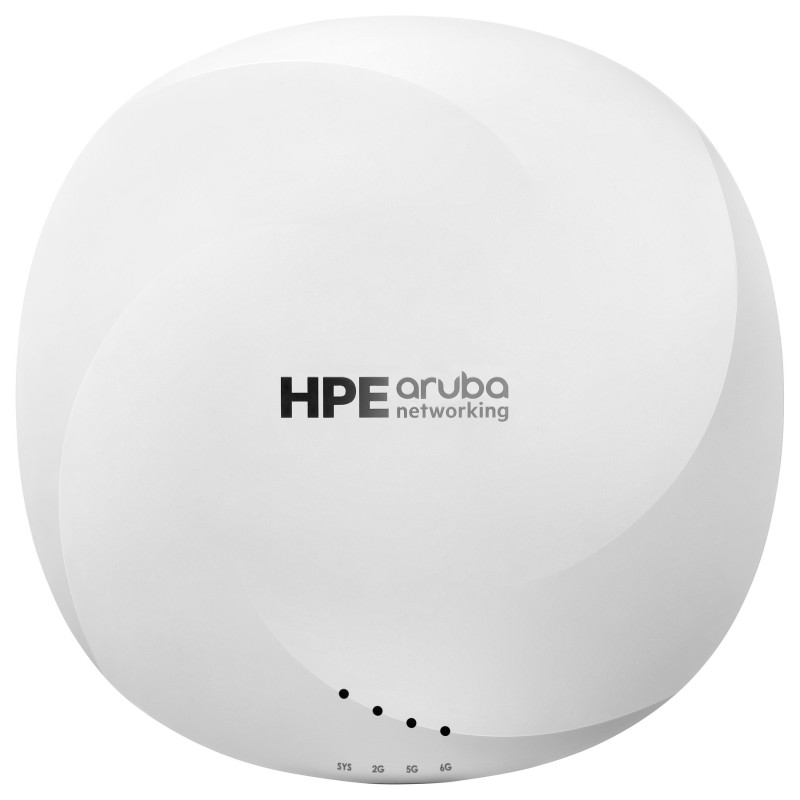

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White

HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled, allowing enterprises to meet needs today and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables. The 630 series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor (LPI) use. With up to seven 160 MHz channels, the 630 series increases performance for low-latency, bandwidth-hungry applications. The ultra tri-band (UTB) filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 series includes dual port hitless failover for Ethernet and power.

What is new supporting point:
Unique filtering capabilities to mitigate gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands
Wider channels and less interference to deliver faster speeds for low-latency, bandwidth-hungry applications like high-definition video and augmented reality / virtual reality
Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band accessing up to 1200 MHz of spectrum
Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E, once it is approved in the country
High availability with hitless failover for Ethernet and power to help ensure business continuity

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 2400 Mbit/s
Ethernet LAN data rates: 2500,5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Feature: Bluetooth
Bluetooth version: 5.0
Feature: MIMO
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Feature: GPS (satellite)
Feature: GLONASS

Security

Security algorithms: WPA, WPA2, WPA3

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1

Power

Feature: Power over Ethernet (PoE)

Design

Placement: Ceiling
Product colour: White
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 7 dBi

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Weight & dimensions

Width: 220 mm
Depth: 220 mm
Height: 51 mm
Weight: 1.3 kg

Other features

Mounting: A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately).
Weight (imperial): 1.3 kg (2.86 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 55 °C
Storage relative humidity (H-H): 10 - 100%
