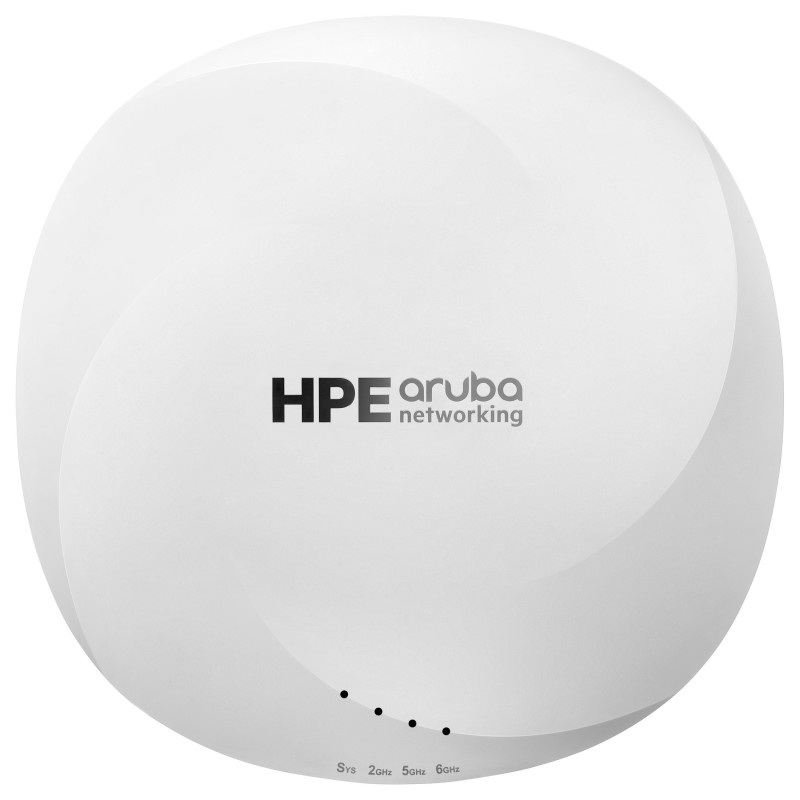

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas Campus AP

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas Campus AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA2, WPA3, WPA3-SAE. Ethernet LAN data rates: 5000 Mbit/s. Power over Ethernet (PoE). Product colour: White
HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.
What is new supporting point:
It is offered as optional eco-friendly 10-pack
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source ^[1]

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
Maximum data transfer rate: 2400 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Maximum data transfer rate (6 GHz): 2400 Mbit/s
Ethernet LAN data rates: 5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Bluetooth: Yes
Bluetooth version: 5.0
Bluetooth Low Energy (BLE): Yes
MIMO: Yes
Trusted Platform Module (TPM): Yes
MACsec support: No

Security

Security algorithms: WPA, WPA2, WPA3, WPA3-SAE

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1

Power

Power over Ethernet (PoE): Yes

Design

Placement: Ceiling
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 6 dBi

Performance

Compatible operating systems: HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certification: UL2043 plenum rating Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)

Weight dimensions

Width: 201 mm
Depth: 183 mm
Height: 51 mm
Weight: 720 g

Packaging data

Package width: 212 mm
Package depth: 194 mm
Package height: 66 mm
Package weight: 800 g

Other features

I/O ports: E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Weight (imperial): 0.721 kg (1.59 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 55 °C
Storage relative humidity (H-H): 10 - 100%
