HPE Aruba Networking AP-575 (RW) 802.11ax 2x2 / 4x4 Dual Radio Integrated Omni Antennas Outdoor AP

HPE Aruba Networking AP-575 (RW) 802.11ax 2x2/4x4 Dual Radio Integrated Omni Antennas Outdoor AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5375 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 32 W
The HPE Aruba Networking 570 Series Outdoor Access Points provide high-performance Wi-Fi 6 wireless connectivity for harsh outdoor weather conditions such as parking lots, stadiums, and public venues. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and a maximum aggregate data rate of 2.69 Gbps, the 570 series delivers the speed and reliability needed to bring Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‐powered analytics, end‐to‐end orchestration and automation, and advanced security features are built natively into the solution. The 570 series include a limited lifetime warranty.
What is new supporting point:
Outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate.
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40 ̊C to +65 ̊C).
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across networks, keeping users and devices secure.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 5375 Mbit/s
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Maximum data transfer rate (5 GHz): 4800 Mbit/s
Ethernet LAN data rates: 1000,2500,5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.39 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM, OFDMA
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK

Security

Security algorithms: WPA, WPA2, WPA3

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB connector type: USB Type-C

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 32 W

Design

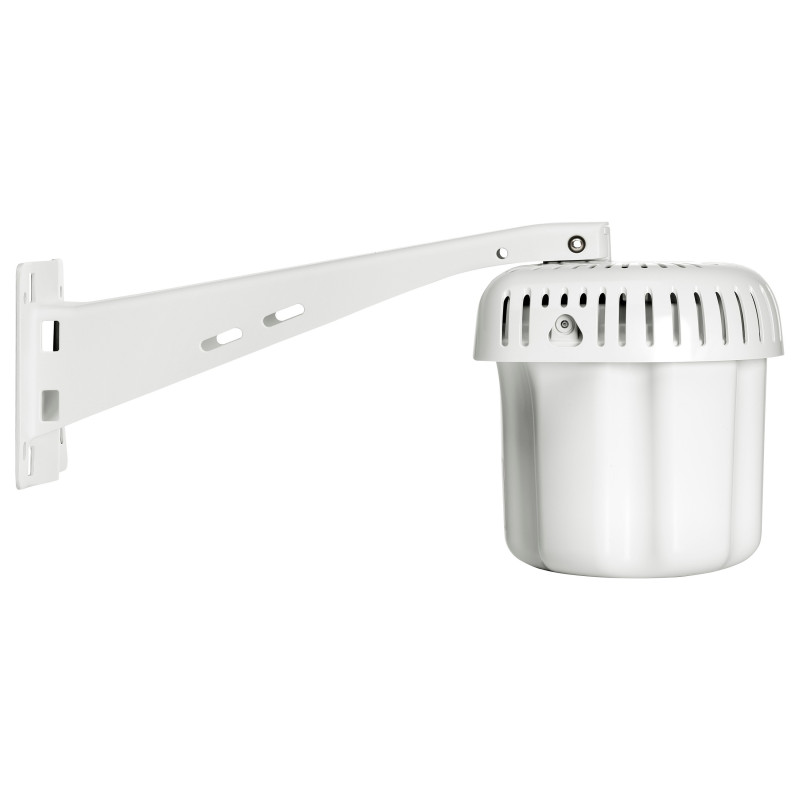

Placement: Pole, Wall
Product colour: White
Recommended usage: Outdoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 5 dBi

Performance

Compatible operating systems: HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating_MI_BR System 104_0_

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Weight dimensions

Width: 230 mm
Depth: 240 mm
Height: 270 mm
Weight: 2.4 kg

Other features

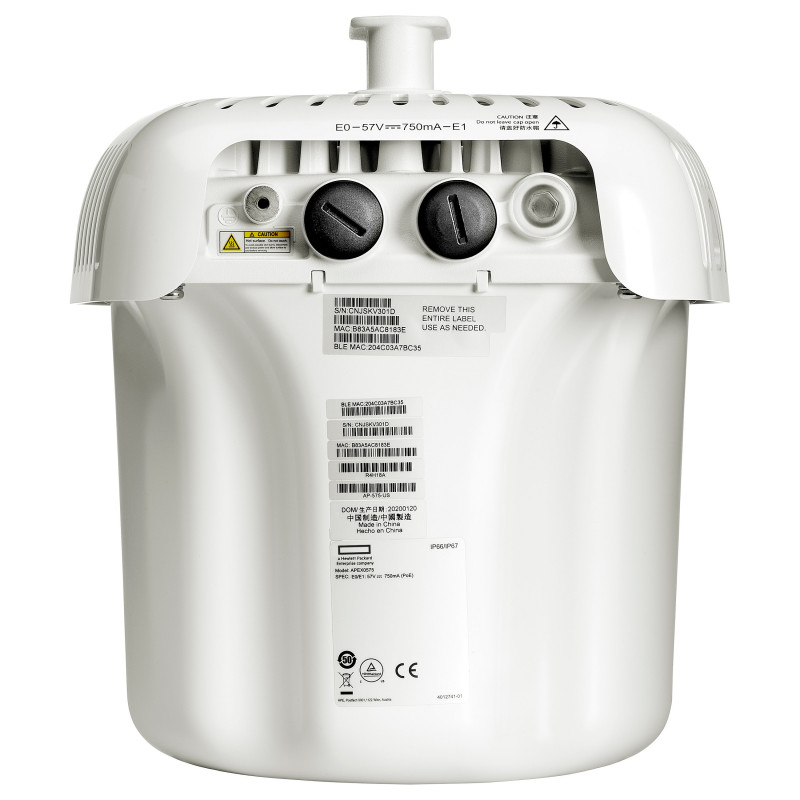

I/O ports: E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial): 2.4 kg (5.3 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 93%
Operating temperature (T-T): -40 - 65 °C
Storage temperature (T-T): -40 - 70 °C
Operating altitude: 0 - 3000 m

Logistics data

Harmonized System (HS) code: 85176990
