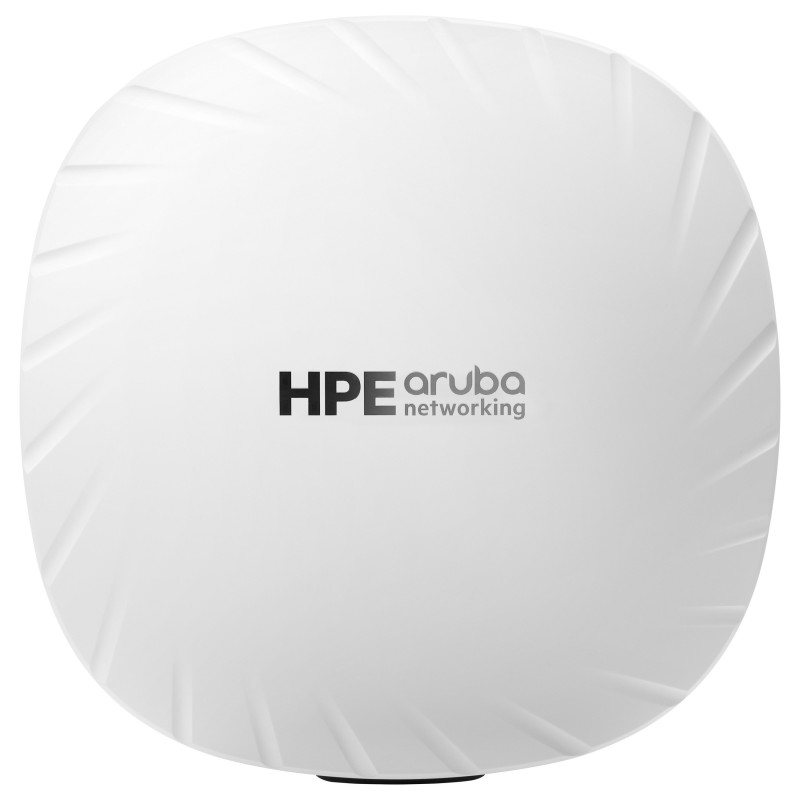

HPE Aruba Networking AP-535 (RW) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP

HPE Aruba Networking AP-535 (RW) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3550 Mbit/s. Security algorithms: WMM, WPA, WPA2. Ethernet LAN data rates: 5000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 23.3 W
The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. The 530 series can be deployed using zero touch provisioning (ZTP) without on-site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.
What is new supporting point:
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity

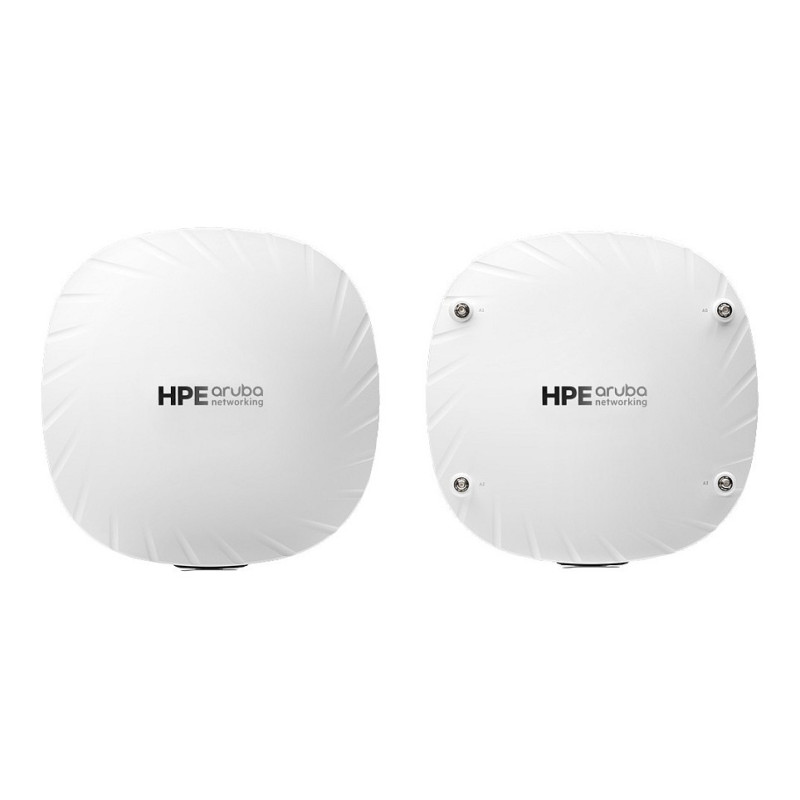

Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 3550 Mbit/s
Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Auto MDI/MDI-X: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MACsec support: No

Security

Security algorithms: WMM, WPA, WPA2

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB connector type: USB Type-A

Power

Power over Ethernet (PoE): Yes
Power consumption (max): 23.3 W

Design

Placement: Ceiling, Wall
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 4
Antenna gain level (max): 5.4 dBi

Performance

Compatible operating systems: HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certification: UL2043 plenum rating Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG)

Weight dimensions

Width: 240 mm
Depth: 240 mm
Height: 57 mm
Weight: 1 kg

Other features

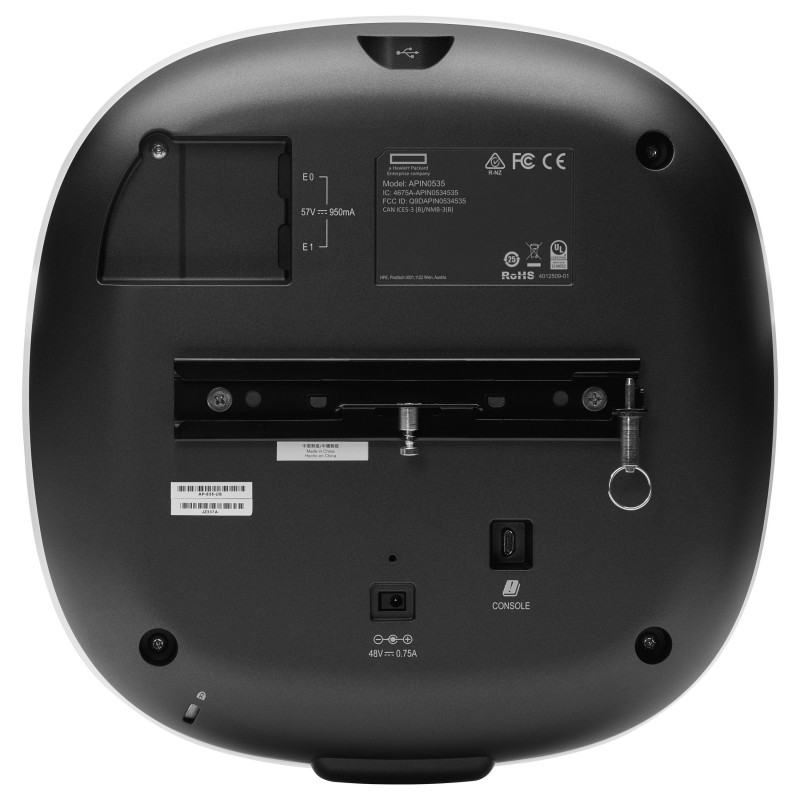

I/O ports: E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot
Weight (imperial): 0.998 kg (2.2 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 93%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 93%

Logistics data

Harmonized System (HS) code: 85176990
