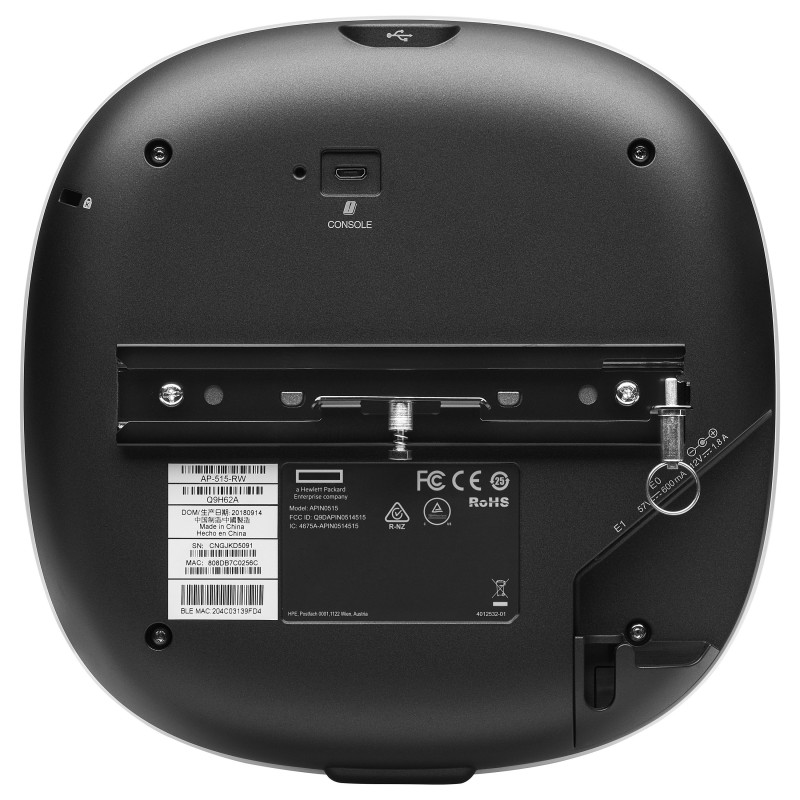

HPE Aruba Networking AP-515 (RW) Dual Radio 4x4 / 2x2 Wi-Fi 6 10-pack Campus Access Point

HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 Wi-Fi 6 10-pack Campus Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2690 Mbit/s, Ethernet LAN data rates: 1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White

The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi‐Fi CERTIFIED for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.

What is new supporting point:
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2690 Mbit/s
Ethernet LAN data rates: 1000,2500,5000 Mbit/s
Throughput data rate: 2690 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Cabling technology: 10/100/1000/2500Base-T
Feature: Bluetooth
Channel bandwidth: 20 MHz
Bluetooth version: 5.0
Feature: MIMO
Spatial streams: 2x2 (2.4 GHz), 4x4 (5 GHz)
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Band steering
Feature: Quality of Service (QoS) support

Protocols

Supported network protocols: 802.11a/b/g/n/ac/ax; WPA, WPA2, WPA3; WMM, WMM-PS; 802.11 FTM; Bluetooth 5; Zigbee (802.15.4)

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Feature: Cloud-managed

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Internal RJ-45 ports quantity: 2
USB 2.0 ports quantity: 1
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)

Design

Placement: In-wall, Wall, Ceiling
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 4
Antenna gain level (max): 7.5 dBi
Number of connectors: 5

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Weight & dimensions

Width: 200 mm
Depth: 200 mm
Height: 46 mm
Weight: 810 g
