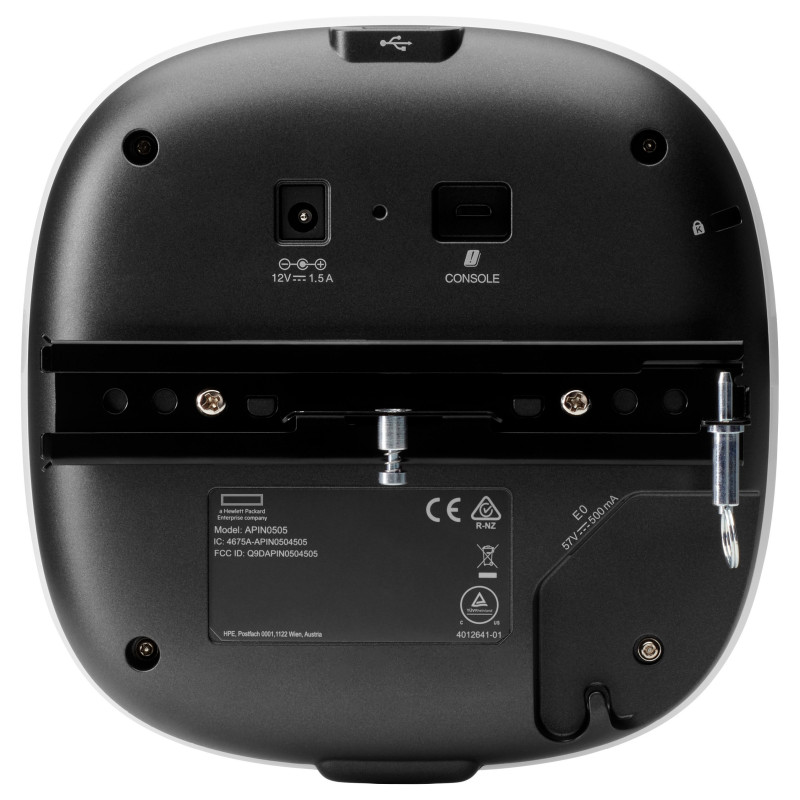

HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP

HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA3, WPA, WPA2. Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 16.5 W

HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 500 series delivers reliable Wi-Fi for medium-density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 series is Wi-Fi CERTIFIED and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500 series includes a limited lifetime warranty.

What is new supporting point:
Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
Available in optional eco-friendly 10-packs
Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
IoT-ready with built-in Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1774 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Ethernet LAN data rates: 1000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM, OFDMA
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK

Security

Security algorithms: WPA3, WPA, WPA2

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB connector type: USB Type-A

Power

Feature: Power over Ethernet (PoE)
Power consumption (max): 16.5 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 2

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Weight & dimensions

Width: 160 mm
Depth: 161 mm
Height: 37 mm
Weight: 500 g

Other features

Weight (imperial): 0.499 kg (1.1 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 93%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 93%

Logistics data

Harmonized System (HS) code: 85176990
