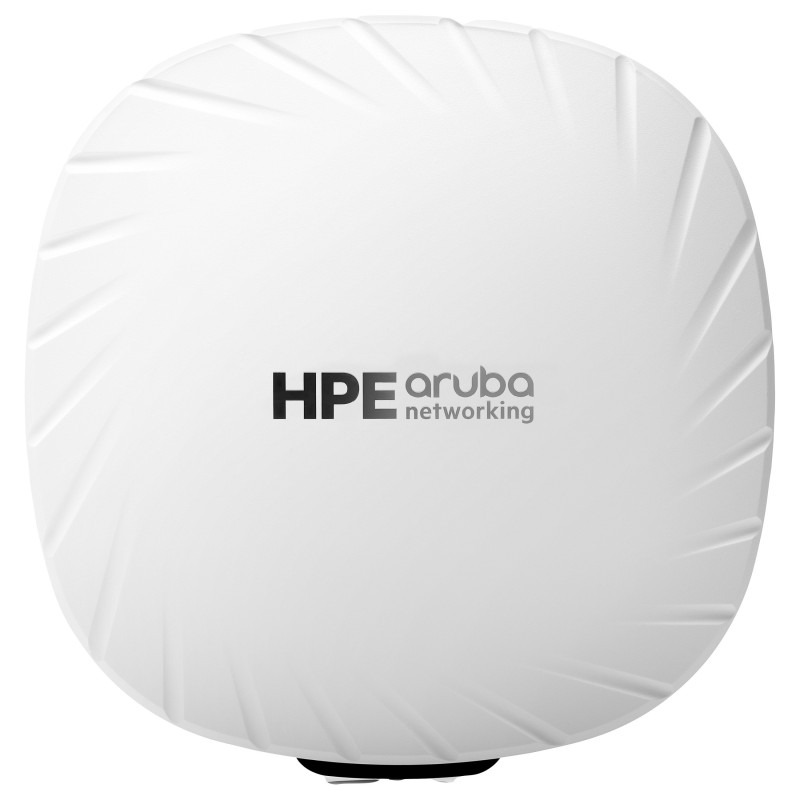

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1490 Mbit/s. Security algorithms: WPA3, WPA, WPA2. Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
HPE Aruba Networking 503 Series Campus Access Points deliver affordable Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 503 series delivers cost-effective and reliable Wi-Fi for low to medium density environments. The 503 series is Wi-Fi CERTIFIED and supports 802.11ax features; OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 503 series includes a limited lifetime warranty.
What is new supporting point:
Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
It supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multi-user efficiency and WPA and Enhanced Open (OWE) for greater security
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Flexible management with AI-powered HPE Aruba Networking Central
Available as optional eco-friendly 10-packs

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1490 Mbit/s
Ethernet LAN data rates: 1000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Networking standards: IEEE 802.11ax
Cabling technology: 10/100/1000Base-T(X)
MIMO: Yes
Trusted Platform Module (TPM): Yes
MACsec support: No

Security

Security algorithms: WPA3, WPA, WPA2

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB connector type: USB Type-A

Power

Power over Ethernet (PoE): Yes

Design

Product colour: White
Reset button: Yes
LED indicators: Reset, Status, System
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 4.8 dBi

Performance

Compatible operating systems: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.1.0 and later HPE Aruba Networking Wireless Operating System 10.5.0.0 and later

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certification: Ethernet Alliance (PoE, PD device, Class 3) Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband

Weight dimensions

Width: 145 mm
Depth: 145 mm
Height: 35 mm
Weight: 255 g

Packaging data

Package width: 196 mm
Package depth: 183 mm
Package height: 67 mm
Package weight: 515 g

Other features

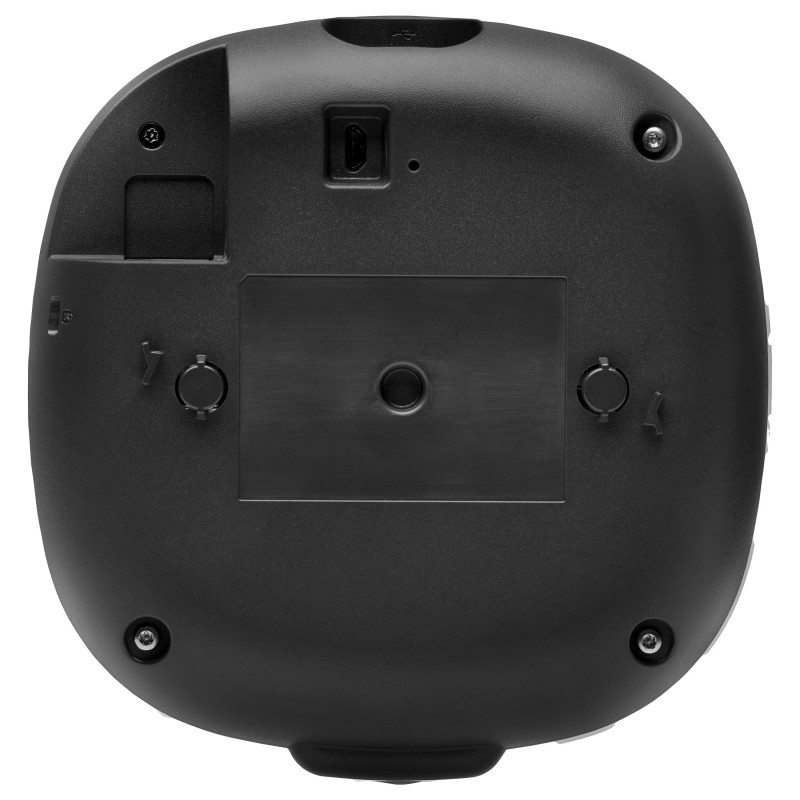

I/O ports: E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack)
Weight (imperial): 0.227 kg (0.5 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 55 °C
Storage relative humidity (H-H): 10 - 100%
