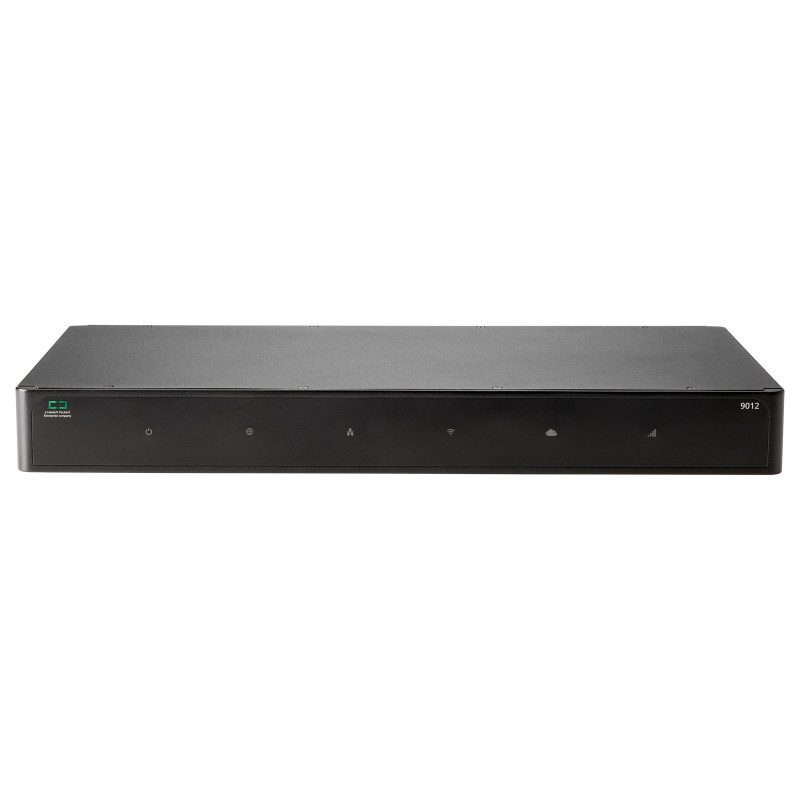

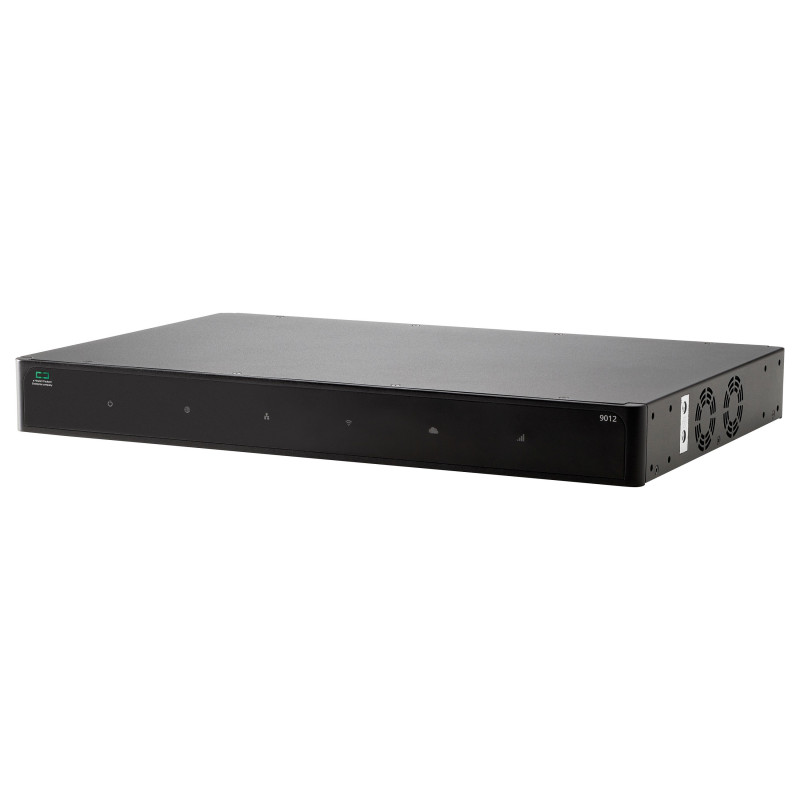

HPE Aruba Networking 9012 (RW) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway gateway / controller

HPE Aruba Networking 9012 (RW) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway. Product colour: Black, Mounting type: Rack mounting, LED indicators: LAN, Status, WAN. Ethernet LAN data rates: 100,1000 Mbit/s. Security algorithms: IPSec, SSL/TLS. Console port: micro USB, RJ-45. Power consumption (typical): 160 W, Input voltage: 90 - 264 V, Input frequency: 47 - 63 Hz
HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.
What is new supporting point:
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.

Design

Product colour: Black
Mounting type: Rack mounting
LED indicators: LAN, Status, WAN

Performance

Control display unit: No

Network

Ethernet LAN data rates: 100,1000 Mbit/s

Security

Security algorithms: IPSec, SSL/TLS
Firewall security: Yes
VLAN support: Yes

Ports interfaces

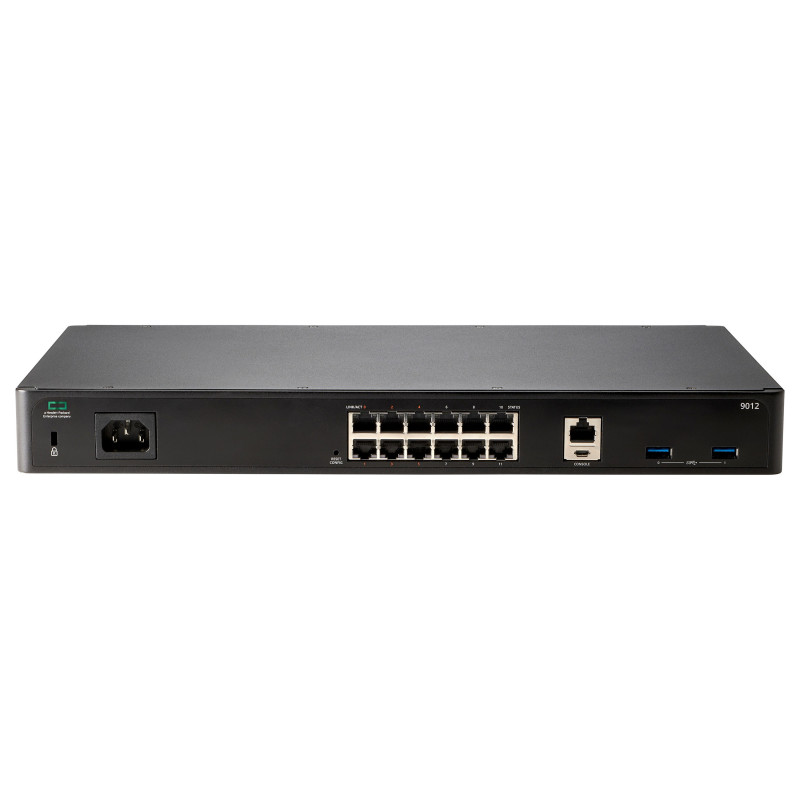

I/O ports: 12 100/1000BASE-T ports (including 6x PoE+)
Console port: micro USB, RJ-45
Ethernet LAN (RJ-45) ports: 12

Power

Power consumption (typical): 160 W
Input voltage: 90 - 264 V
Input frequency: 47 - 63 Hz
Input current: 3 A
Power over Ethernet (PoE): Yes

Weight dimensions

Width: 43.7 mm
Depth: 395 mm
Height: 260 mm
Weight: 3.42 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3048 m

Technical details

Weight (imperial): 3.42 kg (7.54 lbs)

Certificates

Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, EN 60950:2005, IEC 60950-1, EN/IEC 62368-1
Certification: FCC/ISED; RED Directive 2014/53/EU; Others: MIC, NCC, ANATEL, COFTEL, CCC

Logistics data

Harmonized System (HS) code: 85176990
