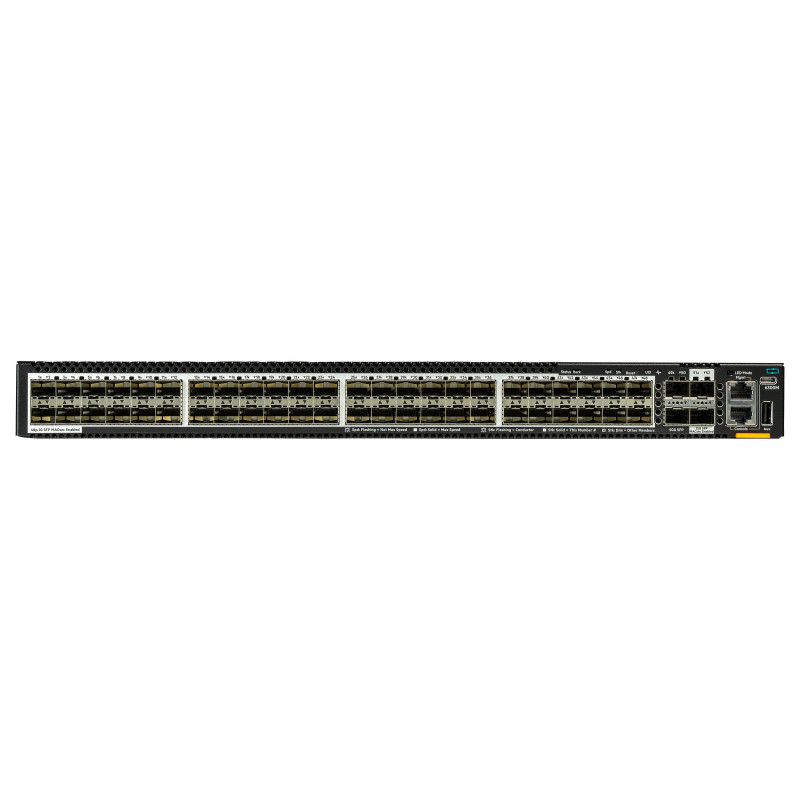

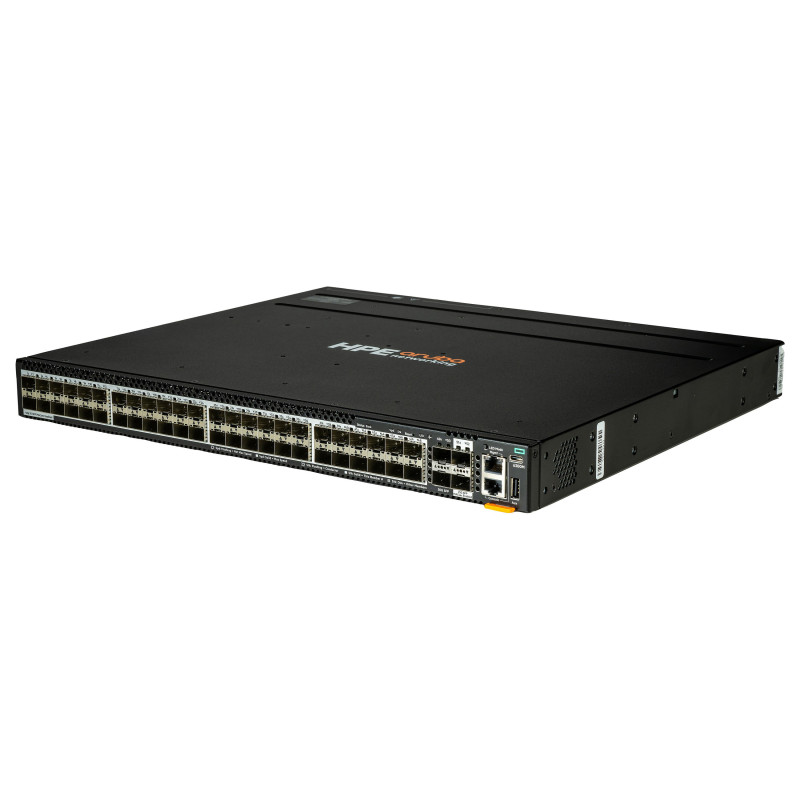

HPE Aruba Networking 6300M 48p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch

HPE Aruba Networking CX 6300M 48p SFP 1G 2p SFP56 50G 2p SFP28 25G MACsec Switch. Switch type: Managed, Switch layer: L3. Switching optical modules type: Gigabit Ethernet. Installed SFP modules quantity: 48, Installed SFP+ modules quantity: 2, Console port: RJ-45/USB Type-C. Switching capacity: 396 Gbit/s. DC input voltage: 36 - 72 V. Power connector: AC/DC. Rack mounting
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine

Management features

Switch type: Managed
Switch layer: L3
Feature: Web-based management
Feature: Configuring Location Settings (CLI)

Ports interfaces

Basic switching RJ-45 Ethernet ports type: No
Installed SFP modules quantity: 48
Installed SFP+ modules quantity: 2
SFP module slots quantity: 48
USB Type-A ports quantity: 1
USB Type-C ports quantity: 1
Number of management ports: 3 pc(s)
Fiber ports quantity: 54
Fiber optic connector: SFP
Console port: RJ-45/USB Type-C
SFP28 ports quantity: 2
Power connector: AC/DC

Network

Feature: 10G support
Cable types supported: Fiber

Optical fiber

Switching optical modules type: Gigabit Ethernet

Data transmission

Switching capacity: 396 Gbit/s
Throughput: 295 Mpps
Throughput: 295 Gbit/s
Forwarding rate: 295 Mpps
Latency (1 Gbps): 3.4 µs

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black
Market segment: Business

Performance

Physical stacking (units): 10
Feature: Built-in processor
Processor manufacturer: ARM
Processor model: ARM Cortex-A9
Processor frequency: 1800 MHz
Memory type: DDR4-SDRAM
Internal memory: 8000 MB
Flash memory: 32000 MB

Power

Power source: AC/DC
Feature: Power supply included
Number of power supply units: 2
AC input voltage: 100 - 240 V
DC input voltage: 36 - 72 V
Input voltage: 100 -240 ; 36-72
Power consumption (max): 127 W
Power consumption note: With JL085A PSU: Idle: 67W 100% Traffic Rate: 127W With JL757A PSU: Idle: 61W 100% Traffic Rate: 123W
Power supply note: 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL085A and JL757A.
Power plug type: No plug

Other features

Latency: 1 Gbps: 3.4 μs 50 Gbps: 2.1 μs
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
I/O ports: 48 x 1G SFP ports 2 x 10G/25G/50G [4] SFP ports 2 x 10G/25G SFP ports (MACsec) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 6.02 kg (13.3 lbs)

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating altitude: 0 - 1524 m

Weight dimensions

Width: 44 mm
Depth: 442 mm
Height: 4.4 mm
Weight: 6.02 kg

Packaging data

Package width: 385 mm
Package depth: 442 mm
Package height: 44 mm
