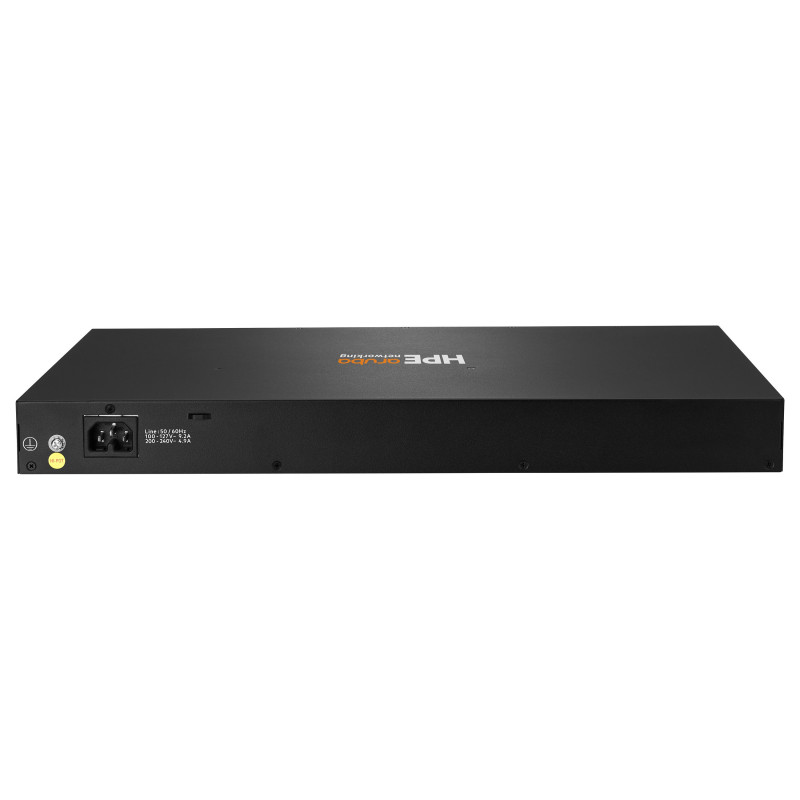

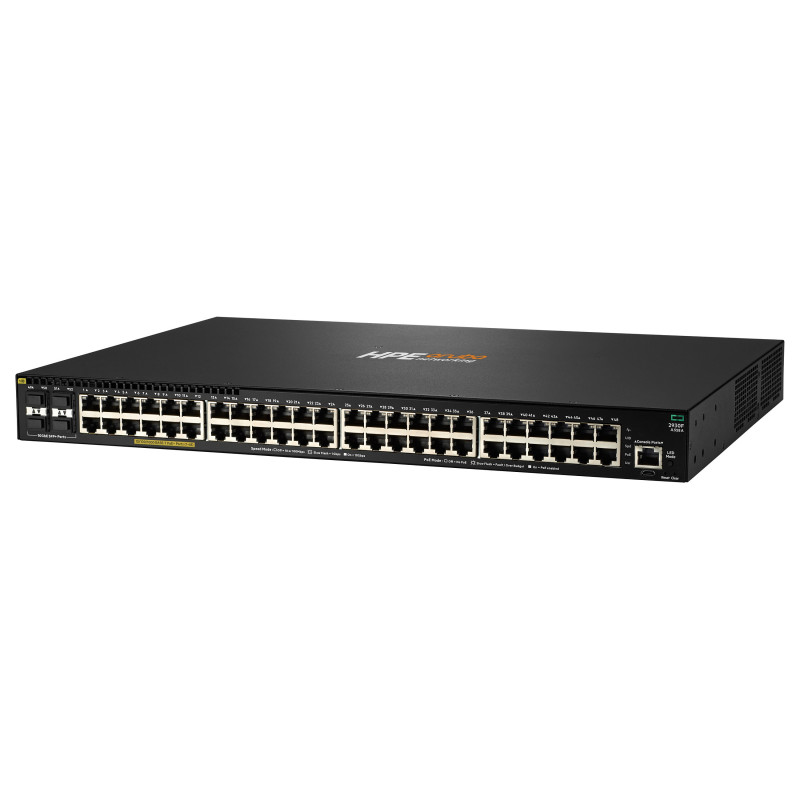

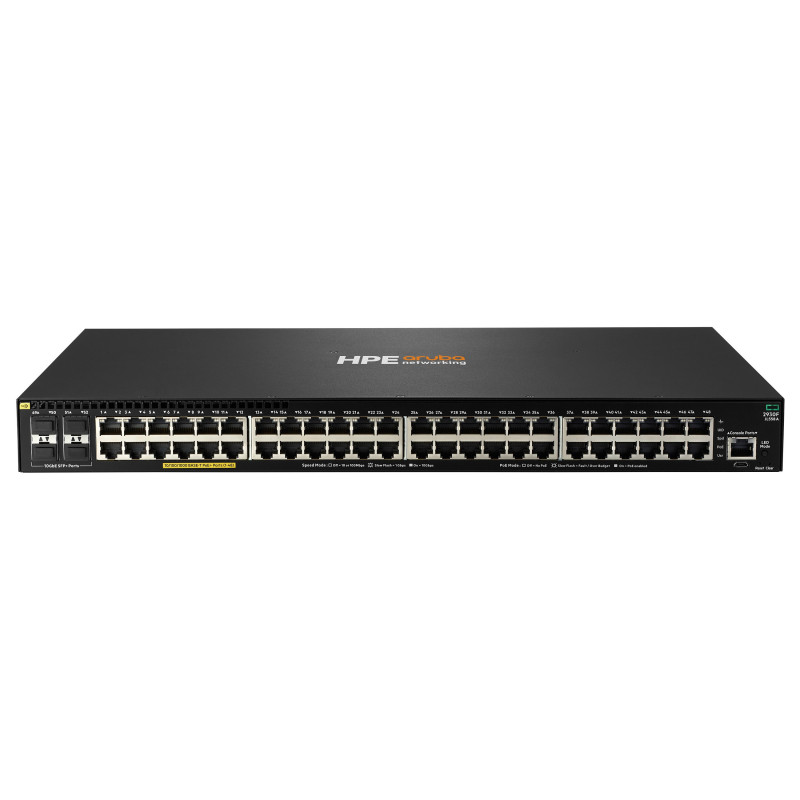

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE)
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
Scale with 8-member stacking

Management features

Feature: Traffic classification

Ports interfaces

SFP+ module slots quantity: 4

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 112 Mpps

Performance

Feature: Built-in processor
Memory type: DDR3-SDRAM
Internal memory: 1024 MB

Power

AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 980 W
Power consumption note: 980W (maximum)

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 740 W

Other features

Latency: 1000 Mb Latency: < 3.8 μs 10 Gbps Latency: < 1.6 μs
Memory and processor: Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
I/O ports: 48x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP+ 1/10GbE ports PHY-less
Weight (imperial): 4.79 kg (10.6 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8")

Weight dimensions

Width: 43.9 mm
Depth: 442.5 mm
Height: 324.2 mm
Weight: 4.79 kg

Logistics data

Harmonized System (HS) code: 85176990
