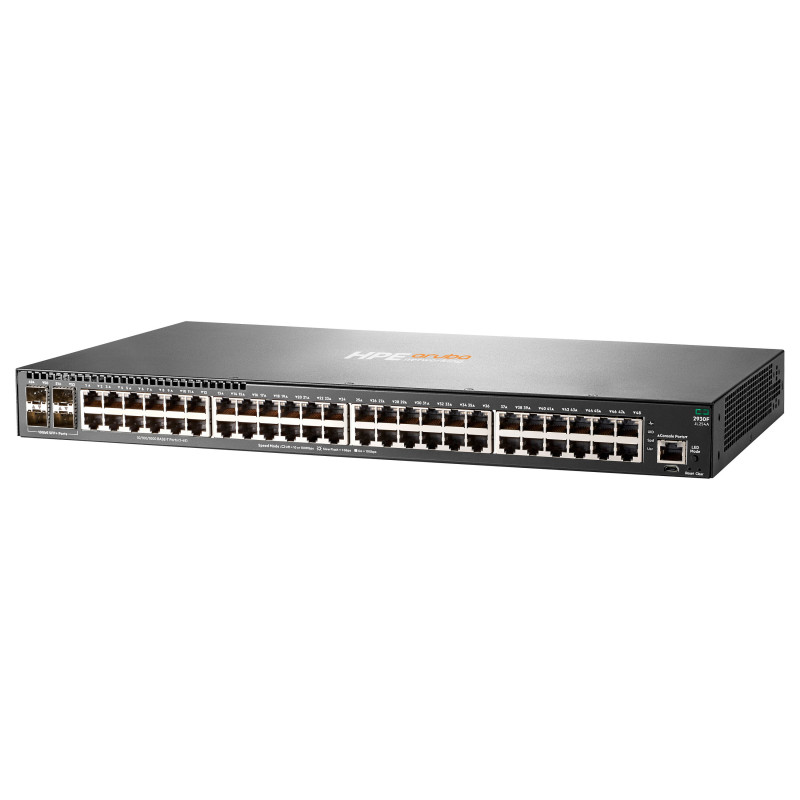

HPE Aruba Networking 2930F 48G 4SFP+ Switch

HPE Aruba Networking 2930F 48G 4SFP+ Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/micro-USB. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
Scale with 8-member stacking

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/micro-USB

Network

Feature: 10G support
Feature: IP routing
Feature: Half duplex
Feature: Link aggregation
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support
Virtual LAN features: Private VLAN

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 112 Mpps
MAC address table: 32768 entries
Latency (1 Gbps): 3.8 µs
Latency (10 Gbps): 1.6 µs
Packet buffer memory: 12.38 MB

Security

Feature: Access Control List (ACL)
Feature: SSH/SSL support
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP
Routing protocols: RIPng, VRRP
IPv4 IPv6 features: IPv4/IPv6 access-control list (ACL)

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Airflow direction: Side-to-side airflow

Performance

Virtual stacking (units): 8
Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 1024 MB
Flash memory: 4096 MB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 46.6 W
Power consumption note: 46.6W (maximum)

Other features

Latency: 1000 Mb Latency: < 3.8 μs 10 Gbps Latency: < 1.6 μs
Memory and processor: Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
I/O ports: 48x RJ-45 autosensing 10/100/1000 ports 4x SFP+ 1/10GbE ports PHY-less
Weight (imperial): 3.1 kg (6.83 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442.5 x 246.4 mm (1.73 x 17.4 x 9.7")

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Storage relative humidity (H-H): 15 - 95%
Heat dissipation: 157.2 BTU/h

Weight dimensions

Width: 43.9 mm
Depth: 442.5 mm
Height: 246.3 mm
Weight: 3.1 kg
