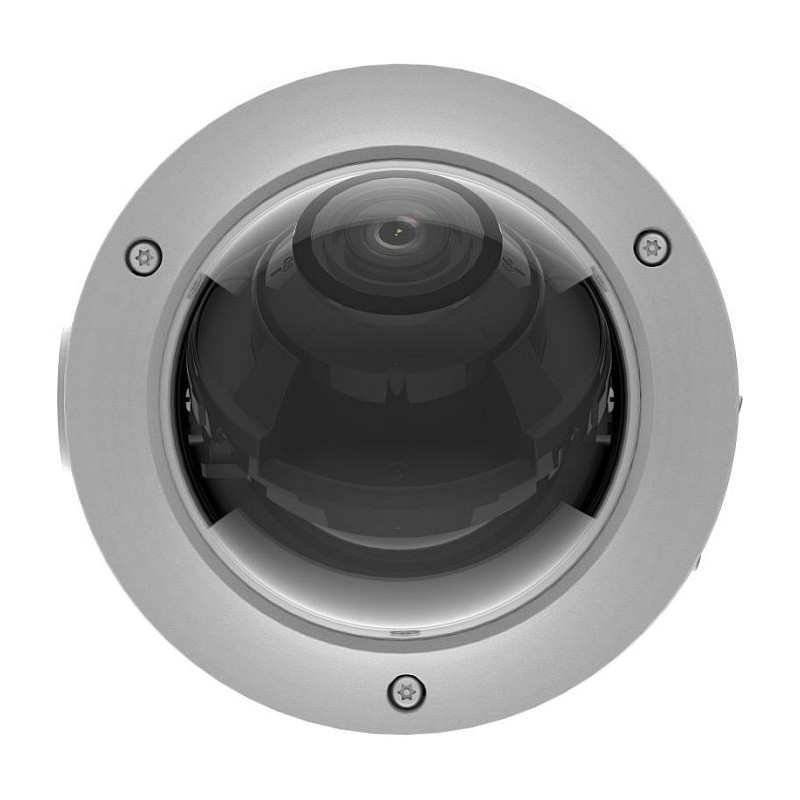

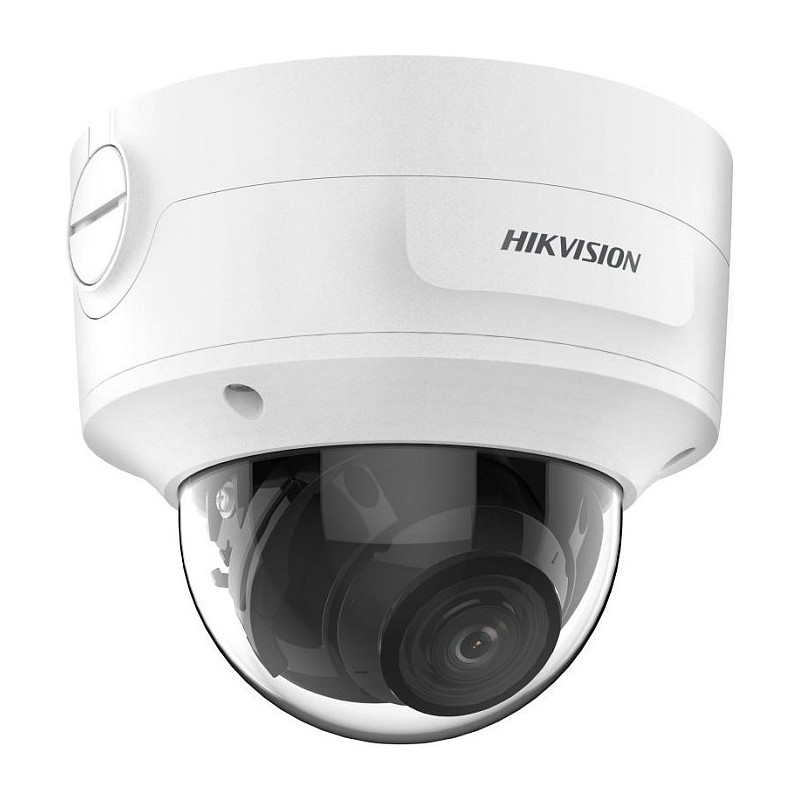

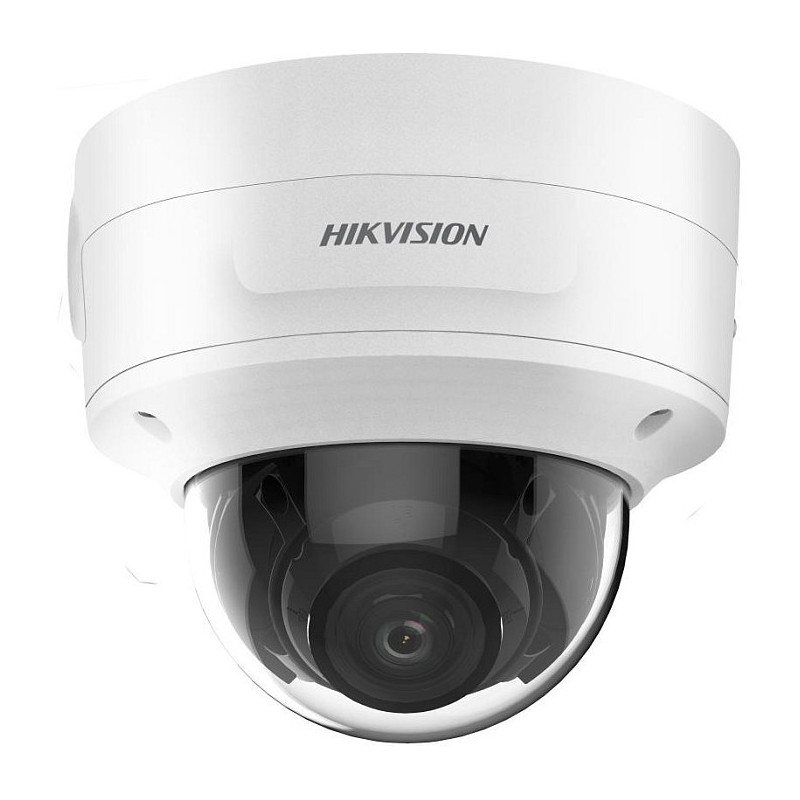

Hikvision Ultra Series (SmartIP) DS-2CD3786G2-IZS(2.7-13.5mm)(H)(eF)

Hikvision Ultra Series (SmartIP) DS-2CD3786G2-IZS(2.7-13.5mm)(H)(eF). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 46 - 108°, Lens viewing angle, vertical: 26 - 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 13.5 mm, Focus: Motorized/Manual, Detect distance (wide): 86 m

Discover Hikvision's latest ultra-powerful network cameras
Hikvision's Ultra-Series Network Cameras, known for their exceptional performance, are specifically designed to enhance overall security in virtually any environment. Equipped with durable hardware, advanced software capabilities, and the Hikvision Embedded Open Platform (HEOP) for third-party applications, these network cameras offer a cutting-edge security solution. Discover the surprising technology behind the Ultra-Series, providing unmatched reliability and scalability that significantly contributes to the success of systems integrators and installers across various markets. Explore how these powerful cameras can deliver critical, cost-effective solutions for your next installation by reading on.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Auto-tracking
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Open platform version: HEOP 2.0
AI software framework: Caffe, ONNX, PaddlePaddle, TensorFlow
Supported programming languages: C, C++
Number of languages: 33
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Housing material: Metal
International Protection (IP) code: IP67
IK code: IK10
Feature: Fog proof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 46 - 108°
Lens viewing angle, vertical: 26 - 58°
Lens viewing angle, diagonal: 52 - 127°
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
Camera shutter speed: 1/100000 - 1/3 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.7 - 13.5 mm
Feature: Auto focus
Focus: Motorized/Manual
Maximum aperture number: 1.6
Detect distance (wide): 86 m
Detect distance (tele): 192 m
Observe distance (wide): 34 m
Observe distance (tele): 76 m
Recognize distance (wide): 17 m
Recognize distance (tele): 38 m
Identify distance (wide): 8 m
Identify distance (tele): 19 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.264+, H.265, H.265+
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Supported video modes: 360p, 480p, 720p, 1080p, 1520p, 2160p
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR

Audio

Audio formats supported: AAC-LC, G.711, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 16 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3at
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

eMMC capacity: 2 GB
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB
Flash memory: 40 MB
RAM capacity: 350 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Face detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Password reset via email
Feature: Flash log
Feature: Audit log
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (max): 15 W
Power consumption (Power over Ethernet (PoE)): 18 W
DC output voltage: 12
DC output current: 1.25 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 133.1 mm
Diameter: 15.3 cm
Weight: 885 g

Packaging data

Package width: 244 mm
Package depth: 174 mm
Package height: 173 mm
Package weight: 1.75 kg

Sustainability

Feature: Sustainability compliance
Compliance certificates: BIS, UL, WEEE, CB, CE, REACH, RoHS

Packaging content

Number of cameras: 1
Feature: Manual
