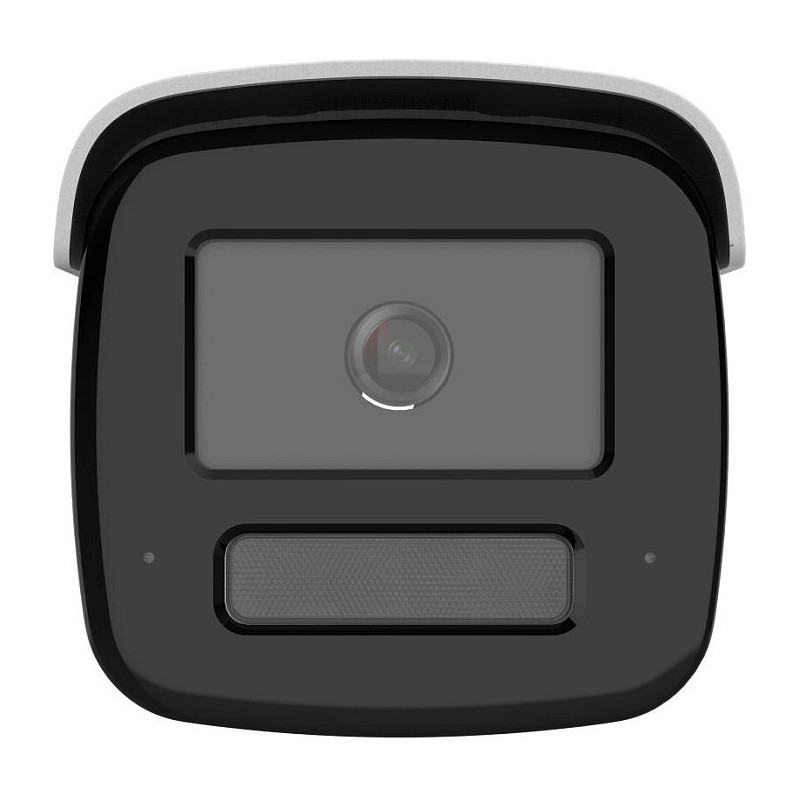

Hikvision Pro Series with ColorVu DS-2CD2T87G3-LIS2UY / SL(2.8MM) security camera

Hikvision Pro Series with ColorVu 8 MP Smart Hybrid Light Fixed Bullet Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 108.8°, Lens viewing angle, vertical: 56.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 89 m, Observe distance: 35 m, Recognize distance: 17 m

Pro Series Network Camera | PTRZ Camera

The PTRZ camera offers a revolutionary dome design that eliminates the need for cover removal. With a transparent cover that allows for adjustments without the hassle of disassembly, this camera streamlines the installation process and reduces the risk of contamination. Additionally, the 5-axis adjustment further equips the PTRZ with day and night lighting compensation capabilities, making it a versatile and reliable security solution.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Built-in light
Number of languages: 33
Languages support: Multi
Dynamic range: 130 dB

Design

Form factor: Bullet
Mounting type: Wall/Pole
Product colour: White
Housing material: Metal
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 108.8°
Lens viewing angle, vertical: 56.4°
Lens viewing angle, diagonal: 134.3°
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
Camera shutter speed: 1 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 89 m
Observe distance: 35 m
Recognize distance: 17 m
Feature: Fixed focus
Maximum aperture number: 1
Identify distance: 8 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 60 m
LED type: IR/White
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Saturation, Sharpness, White balance
Feature: Image stabilizer
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio formats supported: G.722.1, MP2L2, G.726, MP3, AAC-LC, G.711
Feature: Built-in microphone
Number of microphones: 2
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3at
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 2
Alarm output channels: 2
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: 802.1x RADIUS, EAP-LEAP, EAP-MD5, EAP-TLS
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Region entrance detection, Region exiting detection, Scene change
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Human and vehicle targets classification
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Cloud-managed
Feature: Reset button
Feature: Remotely operated
Management software: iVMS-4200,Hik-Connect,Hik-Central

Power

Power source type: DC, PoE
Power consumption (max): 17 W
Power consumption (Power over Ethernet (PoE)): 18 W
DC output voltage: 12
DC output current: 1.41 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 286.7 mm
Depth: 93.9 mm
Height: 91.2 mm
Weight: 1.25 kg

Packaging data

Package width: 386 mm
Package depth: 156 mm
Package height: 155 mm
Package weight: 1.8 kg

Sustainability

Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), KC, Low Voltage Directive (LVD), RCM, RoHS, UL

Packaging content

Number of cameras: 1
Feature: Manual
