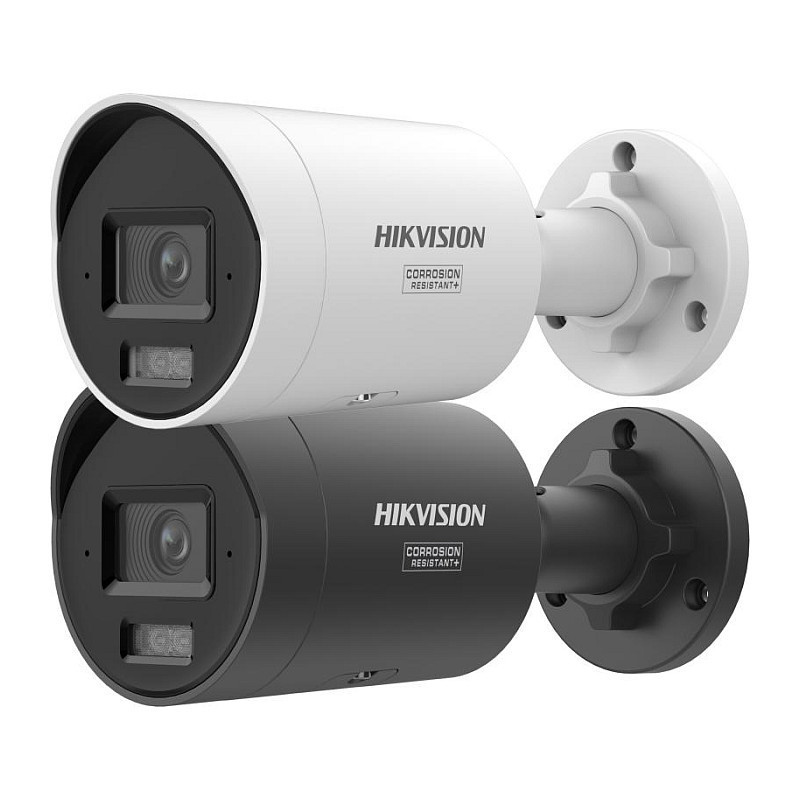

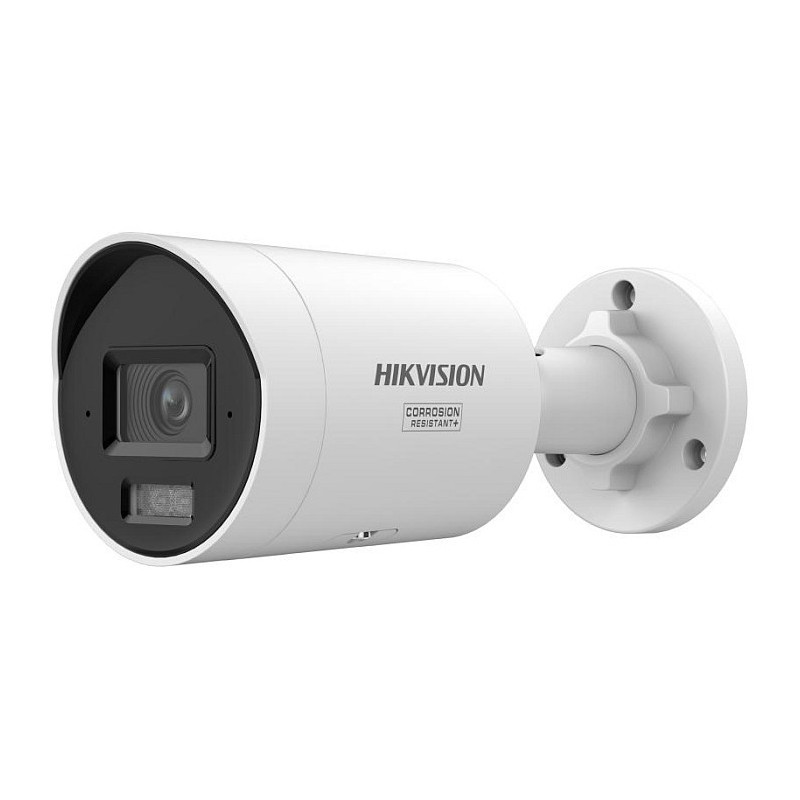

Hikvision Pro Series with ColorVu DS-2CD2087G3-LI2UY(2.8mm)

Hikvision Pro Series with ColorVu DS-2CD2087G3-LI2UY(2.8mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 108.8°, Lens viewing angle, vertical: 56.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 89 m, Observe distance: 35 m, Recognize distance: 17 m

Hikvision is committed to technological innovation for a safer and smarter future. This year, Hikvision is proud to introduce the Network Cameras with ColorVu 3.0, which feature ColorVu 3.0 technology and are designed to deliver exceptional visual performance. As for intelligence, AcuSense 3.0 provides AcuSearch functions and upgraded algorithms to elevate user experience. Besides, Audio 2.0 ensures crystal-clear sound quality and achieves a more efficient communication effect. Making pro, more pro.

HikAI-ISP
- AI noise reduction brings the advantage of increased static brightness
- Powerful parameter adjustment support and professional effect testing process to ensure the algorithm's stability
- Dynamic motion trail reduction enables crystal-clear image quality even in low-light conditions

F1.0 Super Confocal Lens
Hikvision leads the industry by achieving a delicate & complex confocal effect with an F1.0 large-aperture lens, which guarantees equally sharp imaging in IR or visible light. F1.0 Super Confocal Lens is designed with precision at the micron level, allowing for master-level focus and long-lasting, high-definition images.

Smart Hybrid Light
Hikvision Smart Hybrid Light allows users to select the lighting mode that best suits their requirements: IR, White light or Smart mode. In Smart mode, the network cameras maintain infrared illumination until an event triggers color imaging to capture critical details.

3D LUT Color Correction
Accurate color calibration and delicate color matching enhance low light image brightness and restore the true color of things, making night-time footage captured by EasyIP security cameras as brilliant as the daytime

AI WDR
Improved AI WDR enables bright areas of an image are not overexposed, while details in dark areas will not lost
AI WDR allows the security cameras to determine whether to turn on or off WDR function according to the brightness of the scenario, without the need for manual adjustments

Clear and louder voice
- Integrate a higher-power speaker system with Smart PA (Smart Power Amplifier), which widens the sound coverage of the speaker
- Better warning effect to enhance the deterrence for trespassers
- Optimized two-way audio to achieve a more efficient communication effect
- Dual microphones and array design, combined with echo cancellation and anti-reverberation algorithms ensure the crystal-clear audio
- Extends the effective reception distance of the human voice, doubling the improvement compared to single microphone

Designed for superior performance and longevity, network cameras with ColorVu 3.0 feature advanced anti-corrosion materials, making them ideal for coastal villas, shops, and rainy environments, providing a reliable and enduring performance.

The network cameras with ColorVu 3.0 have upgraded packaging for environmental protection. All products are equipped with eco-friendly packaging materials. Hikvision tries the best to protect our planet.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 33
Languages support: Multi
Dynamic range: 130 dB

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 108.8°
Lens viewing angle, vertical: 56.4°
Lens viewing angle, diagonal: 134.3°
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
Camera shutter speed: 1 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 89 m
Observe distance: 35 m
Recognize distance: 17 m
Maximum aperture number: 1
Identify distance: 8 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR/White
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.264+, H.265, H.265+, M-JPEG
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Sharpness
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Audio system: 2-way
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Number of microphones: 2
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, TLS
Feature: HTTPS encryption
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection, Scene change
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web browser
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
Power consumption (max): 4.8 W
Power consumption (Power over Ethernet (PoE)): 6.5 W
DC output voltage: 12
DC output current: 0.4 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Diameter: 7.44 cm
Length: 176.3 mm
Weight: 530 g

Packaging data

Package width: 234 mm
Package depth: 120 mm
Package height: 117 mm
Package weight: 810 g

Sustainability

Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, RoHS

Packaging content

Number of cameras: 1
