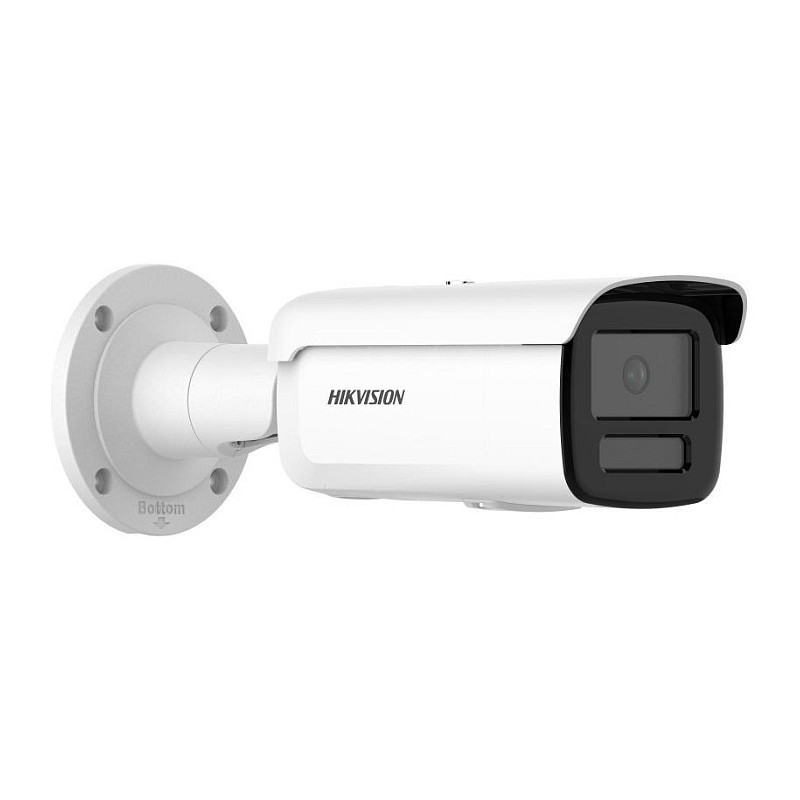

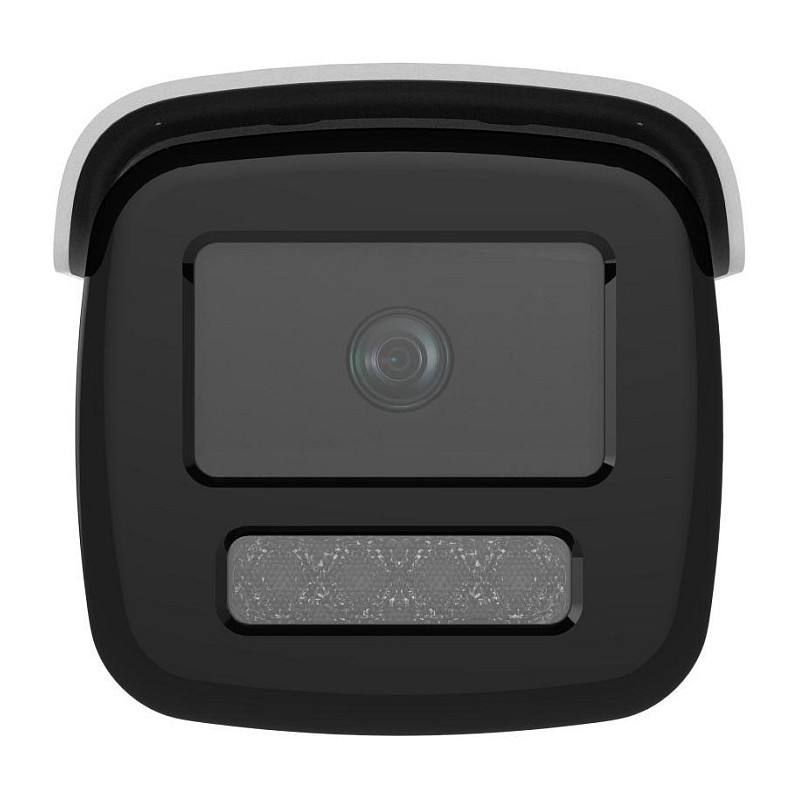

Hikvision Pro Series with AcuSense DS-2CD2T46G2H-4I(4mm)(eF)

Hikvision Pro Series with AcuSense DS-2CD2T46G2H-4I(4mm)(eF). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 81.1°, Lens viewing angle, vertical: 44.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 78 m, Observe distance: 31 m, Recognize distance: 15 m

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 33
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Metal
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 81.1°
Lens viewing angle, vertical: 44.7°
Lens viewing angle, diagonal: 94.6°
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 78 m
Observe distance: 31 m
Recognize distance: 15 m
Maximum aperture number: 1
Identify distance: 7 m
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 80 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8192 Kbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR

Audio

Signal-to-Noise Ratio (SNR): 52 dB

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: HTTPS, TLS
Feature: HTTPS encryption
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Face detection
Feature: Heartbeat
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Human and vehicle targets classification
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web-based management
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection

Power

Power source type: DC, PoE
Power consumption (max): 10 W
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12
DC output current: 0.83 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 93.1 mm
Height: 91.2 mm
Length: 286.7 mm
Weight: 1.08 kg

Packaging data

Package width: 386 mm
Package depth: 156 mm
Package height: 155 mm
Package weight: 1.64 kg

Sustainability

Compliance certificates: CB, CE, Low Voltage Directive (LVD), RoHS, UL

Packaging content

Number of cameras: 1

Other features

Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Technical details

Lens mount interface: M12
