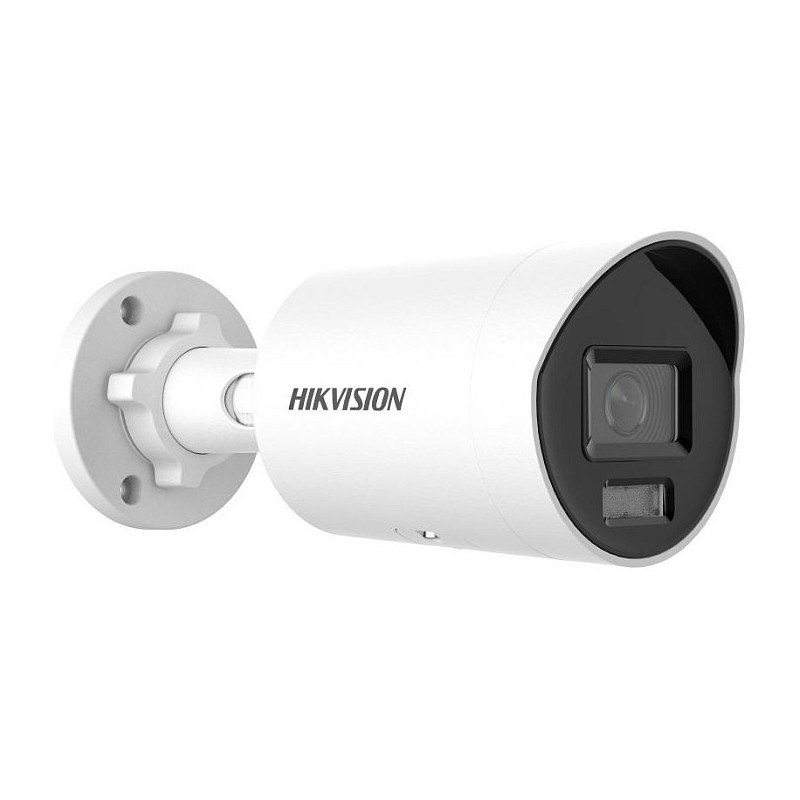

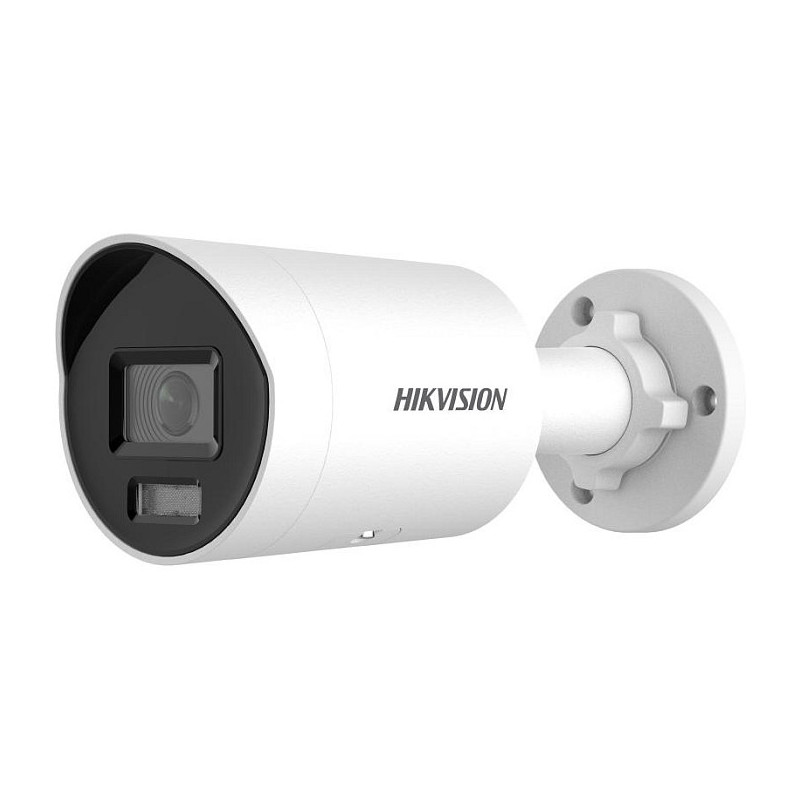

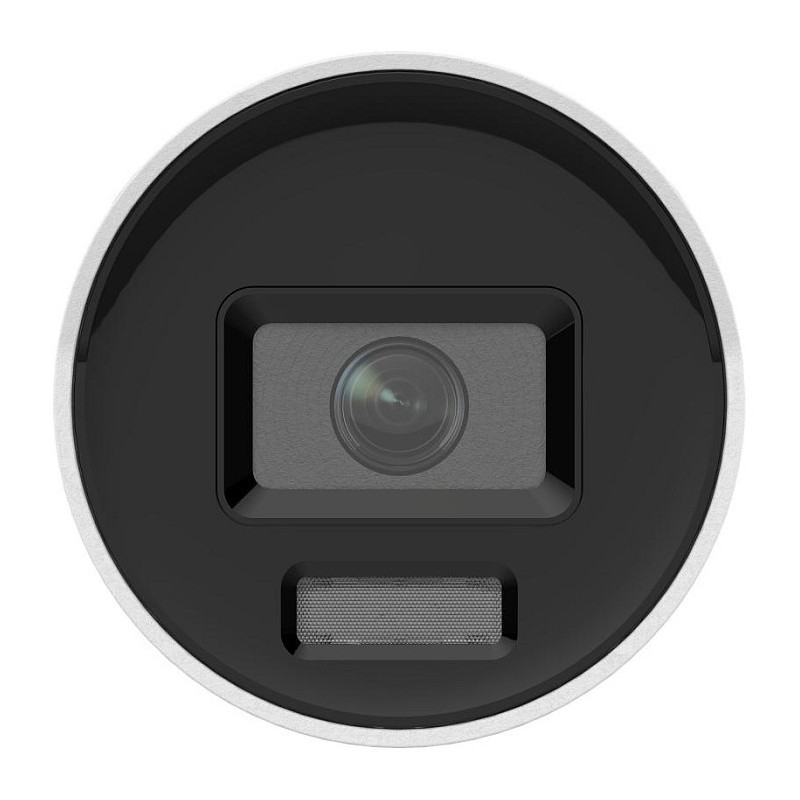

Hikvision Pro Series with AcuSense DS-2CD2046G2H-IU(2.8mm)(eF)

Hikvision Pro Series with AcuSense DS-2CD2046G2H-IU(2.8mm)(eF). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 100.2°, Lens viewing angle, vertical: 54.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 63 m, Observe distance: 25 m, Recognize distance: 12 m
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Languages support: Multi
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Metal
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 100.2°
Lens viewing angle, vertical: 54.7°
Lens viewing angle, diagonal: 119.7°
Tilt angle range: 0 - 90°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 63 m
Observe distance: 25 m
Recognize distance: 12 m
Maximum aperture number: 1
Identify distance: 6 m
Fixed focal length: 2.8 mm

Night vision

Night vision: Yes
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8192 Kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Audio

Audio formats supported: AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Wi-Fi: No
Bluetooth: No
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Quality of Service (QoS) support: Yes
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Live view: Yes
Number of simultaneous live view channels: 6 channels

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: HTTPS, TLS
HTTPS encryption: Yes
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Heartbeat: Yes
Mirror: Yes
Password reset via email: Yes
Pixel counter: Yes
Flash log: Yes
Human and vehicle targets classification: Yes
Audit log: Yes
Automatic Network Replenishment (ANR): Yes
Digest authentication: Yes
Network access storage (NAS): Yes

Management features

Web-based management: Yes
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection

Power

Power source type: DC, PoE
Power consumption (max): 5.5 W
Power consumption (Power over Ethernet (PoE)): 7 W
DC output voltage: 12
DC output current: 0.45 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight dimensions

Diameter: 7.44 cm
Length: 179.2 mm
Weight: 525 g

Packaging data

Package width: 234 mm
Package depth: 120 mm
Package height: 117 mm
Package weight: 750 g

Sustainability

Compliance certificates: CB, CE, Low Voltage Directive (LVD), RoHS, UL

Packaging content

Number of cameras: 1

Other features

Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Technical details

Lens mount interface: M12
