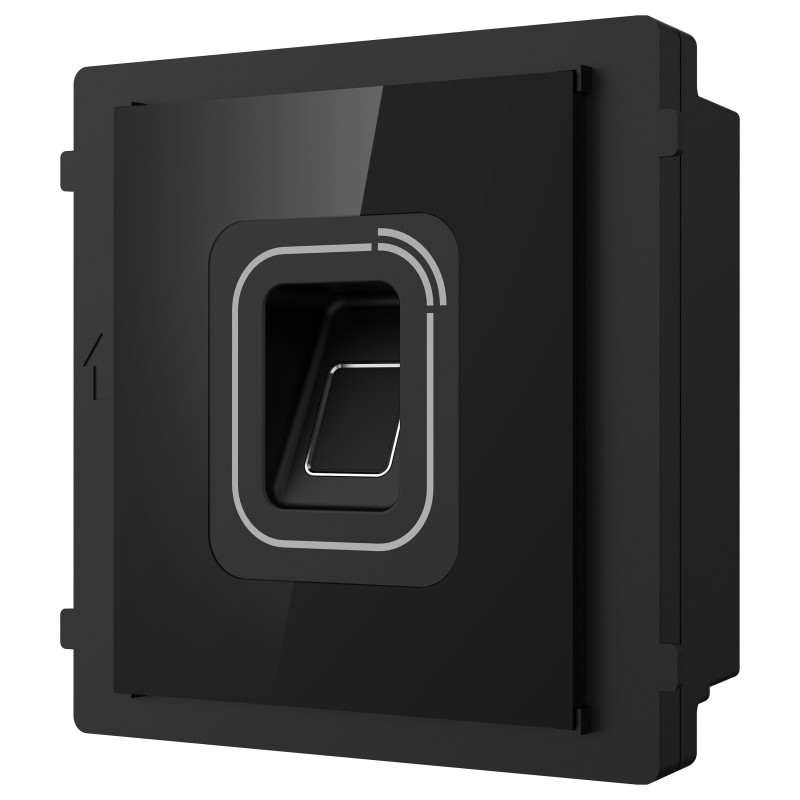

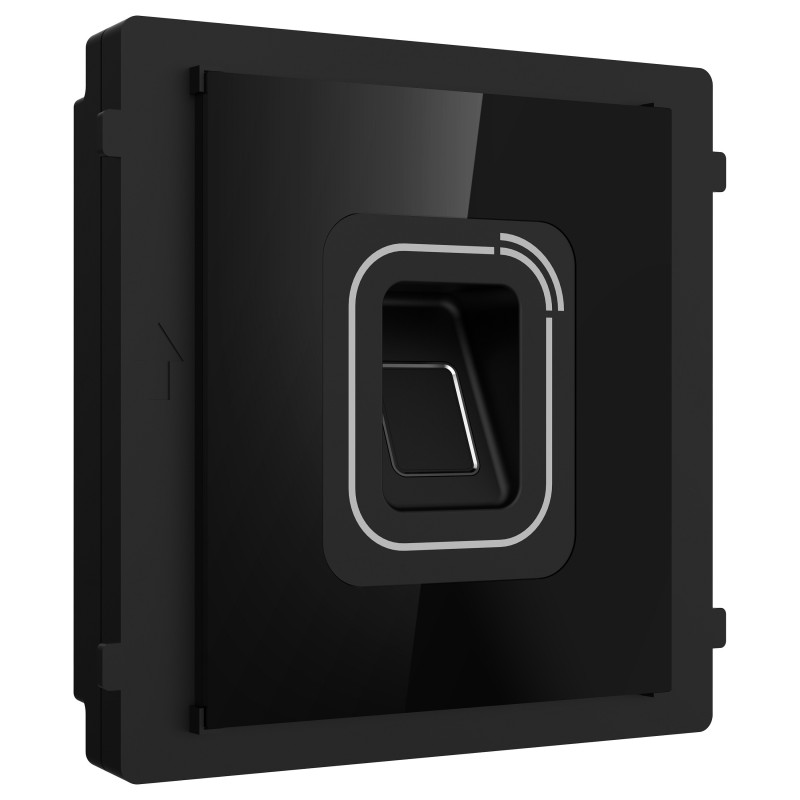

Hikvision Pro Series DS-KD-MFB access control reader

Hikvision Pro Series FingerprintCard reader sub module. Input voltage: 12 V, Power consumption (max): 4 W. Width: 100 mm, Depth: 35 mm, Height: 100 mm
Check live feed from door stations cameras with user-friendly interfaces

Technical details

Type: Entrance control terminal
Authentication type: Access chip/card, Biometric
Authentication card type: DESfire, M1
Fingerprint reader: Yes
Access code reader: No
Access chip/card reader: Yes
Cards capacity: 6000 cards
RFID frequency: 13.56 MHz
RFID reading distance: 2 cm
Fingerprint capacity: 1000
Languages support: Multi
Product colour: Black
International Protection (IP) code: IP65

Display

Built-in display: No

Camera

Front camera: No

Ports interfaces

RS-485 ports: 1

Power

Input voltage: 12 V
Power consumption (max): 4 W

Weight dimensions

Width: 100 mm
Depth: 35 mm
Height: 100 mm

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 90%
