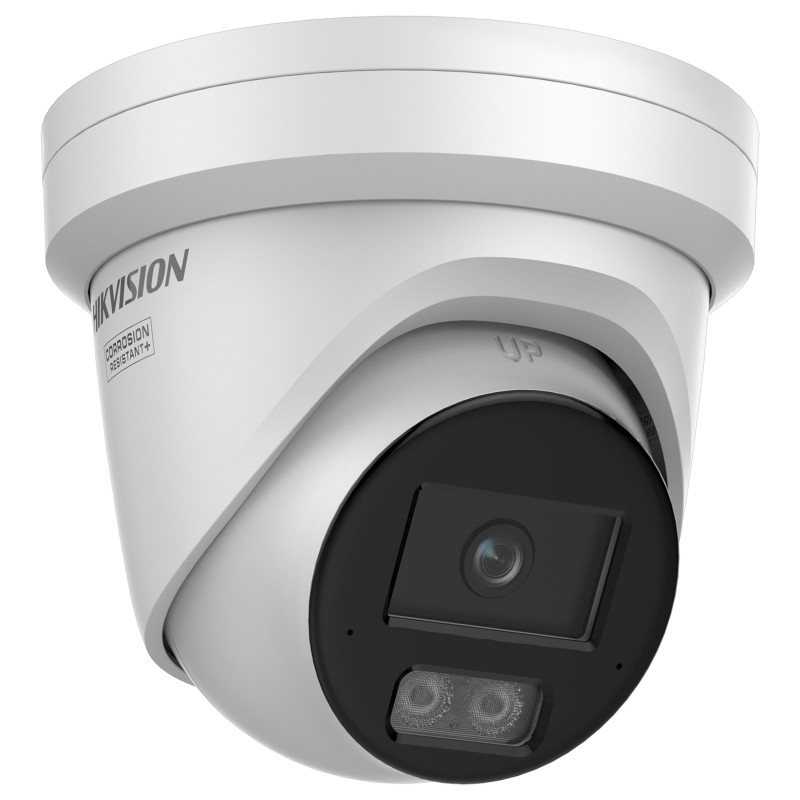

Hikvision Pro Series DS-2CD2347G3-LI2UY(2.8MM) security camera

Hikvision Pro Series 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 111.1°, Lens viewing angle, vertical: 57.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 61 m, Observe distance: 24 m, Recognize distance: 12 m

With a perfect balance of performance and value, Hikvision Pro Series network cameras aim to provide just the right components, including exciting new technologies like ColorVu and AcuSense to enhance the quality of the picture and low false alarms rates respectively. All this, yet affordable and easy to use too.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 33
Languages support: Multi
Dynamic range: 130 dB

Design

Form factor: Turret
Mounting type: Ceiling/Wall/Pole
Product colour: White
Housing material: Metal
Protection features: Corrosion resistant, Dust resistant, Water resistant
International Protection (IP) code: IP67

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 111.1°
Lens viewing angle, vertical: 57.6°
Lens viewing angle, diagonal: 138.5°
Tilt angle range: 0 - 75°
Pan range: 0 - 360°
Number of Privacy masking areas: 4

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 61 m
Observe distance: 24 m
Recognize distance: 12 m
Maximum aperture number: 1
Identify distance: 6 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR/White
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Image stabilizer
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Audio formats supported: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Number of microphones: 2
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3af
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, TLS
Feature: HTTPS encryption
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Human and vehicle targets classification
Feature: Audit log
Feature: Digest authentication

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (max): 8.5 W
Power consumption (Power over Ethernet (PoE)): 11 W
DC output voltage: 12
DC output current: 0.7 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 115.4 mm
Diameter: 13.8 cm
Weight: 750 g

Packaging data

Package width: 170 mm
Package depth: 170 mm
Package height: 160 mm
Package weight: 1.14 kg

Sustainability

Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), KC, RCM, RoHS, UKCA, UL

Packaging content

Number of cameras: 1

Technical details

Lens mount interface: M12
