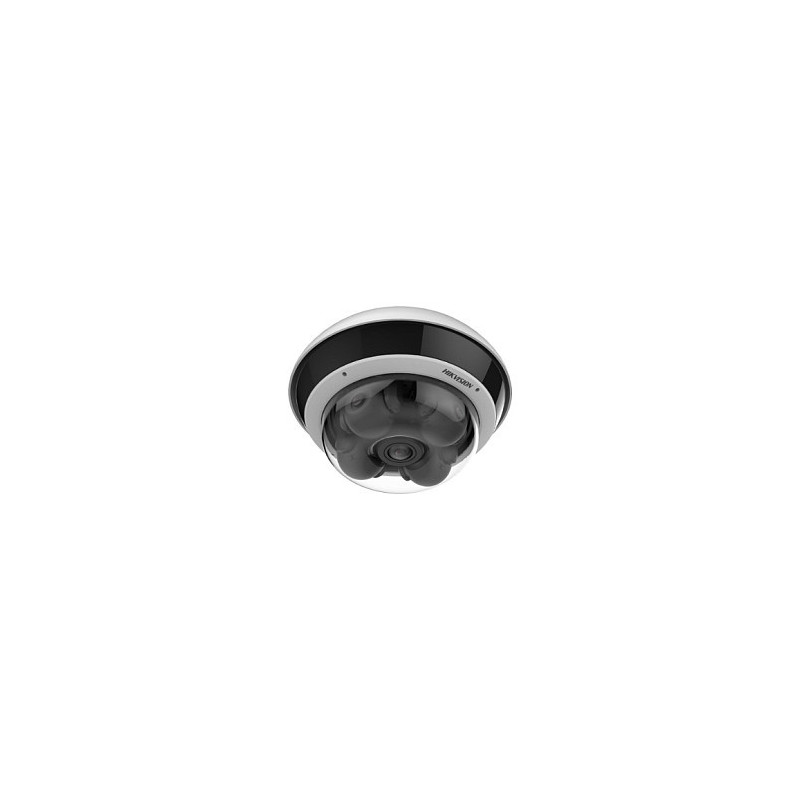

Hikvision Panoramic Series DS-2CD6D55G2-IZHS(2.8-8mm / 2mm)

Hikvision Panoramic Series DS-2CD6D55G2-IZHS(2.8-8mm/2mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Angle of rotation: 180°, Lens viewing angle, horizontal: 96.5 - 48.9, 71.68°, Lens viewing angle, vertical: 69.9 - 36.5, 71.68°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Focal length range: 2.8 - 8, 2 mm, Focus: Motorized/Manual

Panoramic security with a single camera
Deploying video-security systems for expansive indoor and outdoor areas such as lobbies, plazas, and business parks, has been a complex task. It usually requires multiple cameras for complete monitoring of the entire area. A panoramic IP camera utilizes advanced optics and technology to offer a very wide view in various directions, while traditional cameras feature a limited field of view. The panoramic view can be achieved using a single sensor or an array of sensors (and lenses).

Hikvision panoramic cameras offer an ideal solution for diverse environments, delivering expansive coverage with just one camera. With a diverse selection of camera models available, users can choose the perfect fit for their needs. Some models offer 180-degree or 360-degree stitched panoramas, while a few other models provide multidirectional views from separate video channels. Additionally, there are certain models that have an integrated PTZ lens, allowing users to zoom in on details. Check out our lineup of panoramic security cameras with unique lens and sensor options, including 360-degree and 180-degree panoramic cameras, and start exploring comprehensive security with us today!

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 33
Languages support: Multi

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
International Protection (IP) code: IP67
IK code: IK10

Camera

Minimum illumination: 0 lx
Angle of rotation: 180°
Lens viewing angle, horizontal: 96.5 - 48.9, 71.68°
Lens viewing angle, vertical: 69.9 - 36.5, 71.68°
Lens viewing angle, diagonal: 129 - 61.3, 99.16°
Tilt angle range: 0 - 90°
Pan range: 0 - 350°
Camera shutter speed: 1 - 1/100000 s

Image sensor

Number of sensors: 2
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 2
Focal length range: 2.8 - 8, 2 mm
Focus: Motorized/Manual
Maximum aperture number: 2.25
Minimum aperture number: 1.2

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1920 pixels
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1920
Supported video modes: 480p, 576p, 720p, 1080p, 1536p
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Feature: Privacy masking
Bit rate: 32 Kbps - 8 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 16 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3at
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 20 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 1 TB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1

Security

Alarm input channels: 2
Alarm output channels: 2
Feature: Password protection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: E-mail
Feature: Motion sensor
Feature: Heartbeat
Feature: Digital watermark
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Digest authentication

Management features

Feature: Web browser
Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (max): 21.6 W
Power consumption (Power over Ethernet (PoE)): 25 W
DC output voltage: 12
DC output current: 1.8 A

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 148 mm
Diameter: 29 cm
Weight: 4.7 kg

Packaging data

Package width: 453 mm
Package depth: 393 mm
Package height: 385 mm
Package weight: 8 kg

Packaging content

Number of cameras: 1
