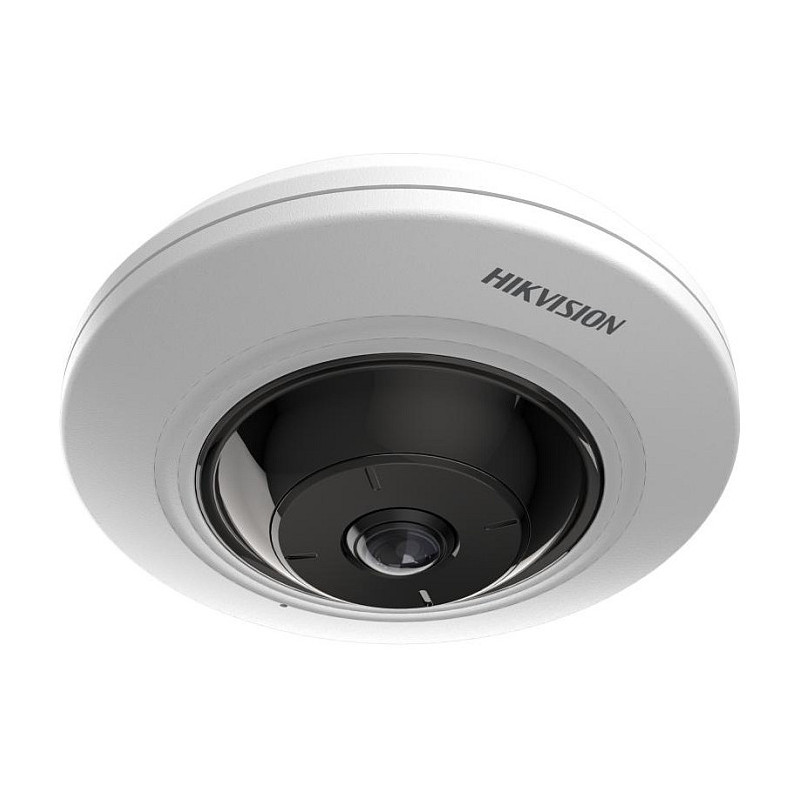

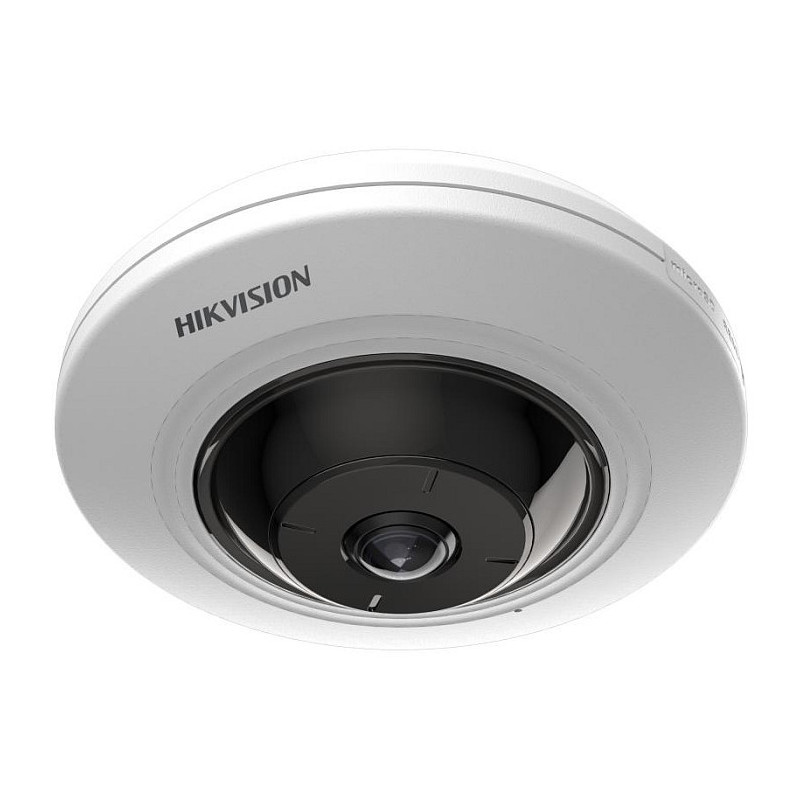

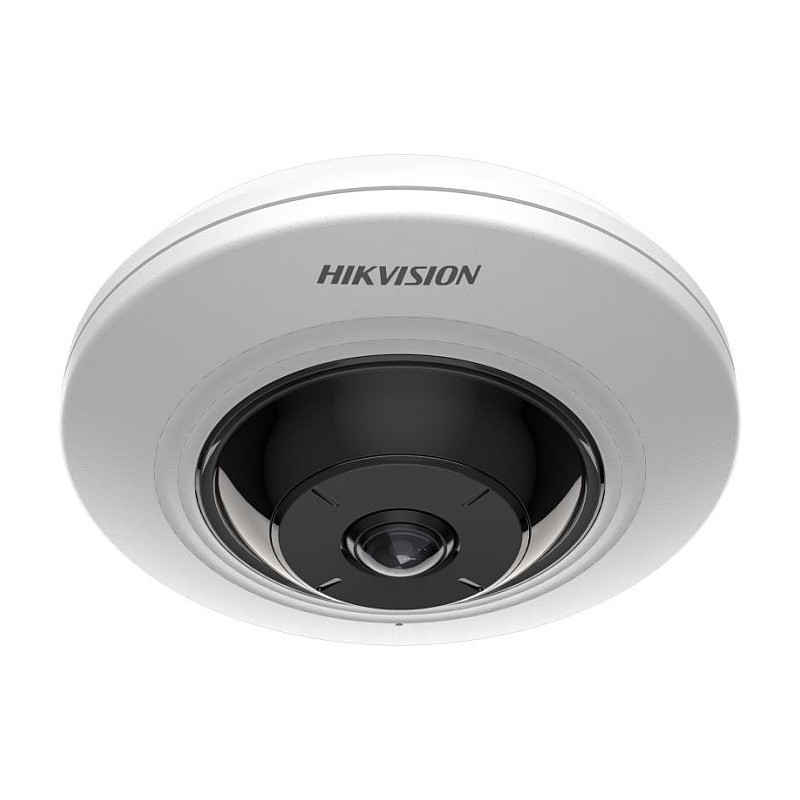

Hikvision Panoramic Series DS-2CD3956G2-ISU (1.05 mm)

Hikvision Panoramic Series 5 MP AcuSense Fisheye Network Camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°, Lens viewing angle, diagonal: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 21 m, Observe distance: 8 m, Recognize distance: 4 m

Get wide coverage and complete situation awareness with a single camera

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Open platform version: HEOP 2.0
AI software framework: Caffe, TensorFlow
Supported programming languages: C++
Number of languages: 33
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling/Wall/Desk
Product colour: White

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 180°
Lens viewing angle, diagonal: 180°
Camera shutter speed: 1 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Detect distance: 21 m
Observe distance: 8 m
Recognize distance: 4 m
Maximum aperture number: 2.25
Identify distance: 2 m
Fixed focal length: 1.05 mm

Night vision

Feature: Night vision
Night vision distance: 8 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 16 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Streaming method: Multicast
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB
Flash memory: 2000 MB
Internal memory: 60 MB
RAM capacity: 400 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1

Security

Alarm output channels: 1
Feature: Password protection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: HTTPS, SRTP, TLS
Feature: HTTPS encryption
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Heat map
Feature: Heartbeat
Feature: Mirror
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (typical): 6 W
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output voltage: 12
DC output current: 0.5 A

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 41.2 mm
Diameter: 12 cm
Weight: 320 g

Packaging data

Package width: 150 mm
Package depth: 125 mm
Package height: 99 mm
Package weight: 510 g

Sustainability

Feature: Sustainability compliance
Compliance certificates: CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE

Packaging content

Number of cameras: 1

Technical details

Lens mount interface: M12
