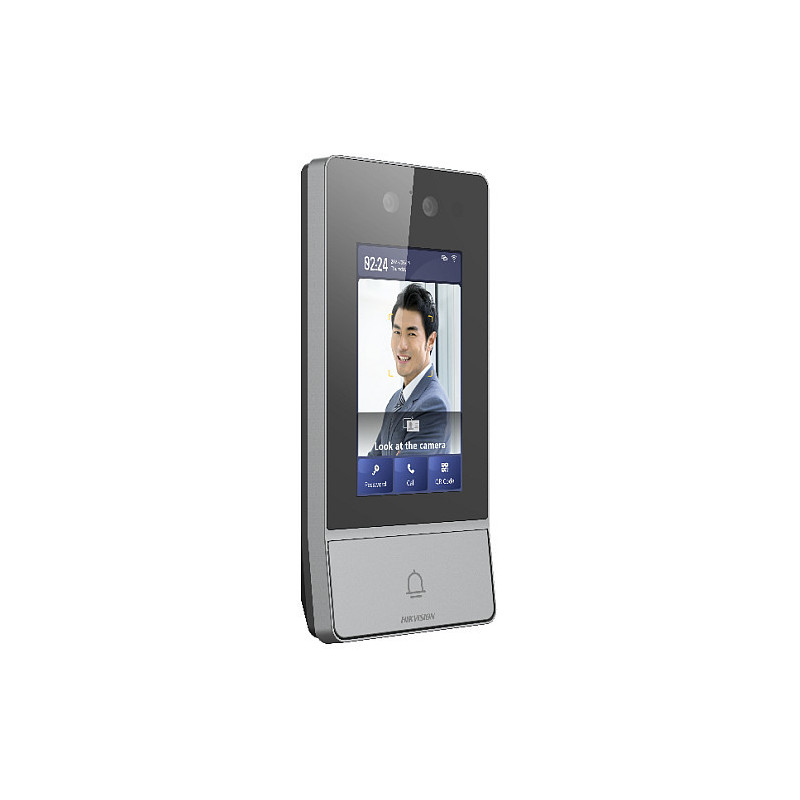

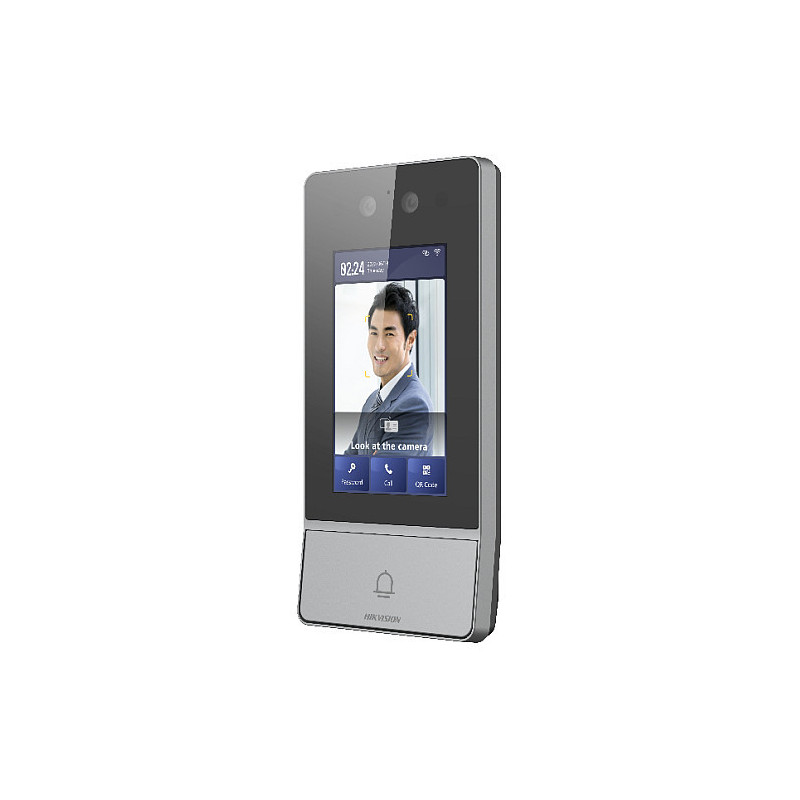

Hikvision DS-KV9503-WBE1 video intercom system

Hikvision DS-KV9503-WBE1. Connectivity technology: Wired Wireless. Display diagonal: 10.9 cm (4.3"), Display technology: IPS, Display resolution: 800 x 480 pixels. Megapixel (approx.): 2 MP, Sensor type: CMOS, Viewing angle, horizontal: 88°. Voice codecs: G.711, G.711a. Product colour: Black, Silver, International Protection (IP) code: IP65, IK code: IK08
Metal Vandal-proof Facial IP Villa Door Station

Features

Connectivity technology: Wired Wireless
Feature: Colour
Number of displays supported: 1
Maximum number of cameras supported: 2
Feature: RFID reader
Feature: Echo cancellation
Feature: Wall mountable
Feature: Built-in microphone

Display

Display diagonal: 10.9 cm (4.3")
Display technology: IPS
Display resolution: 800 x 480 pixels
Feature: Touchscreen
Touchscreen type: Capacitive
Video formats supported: H.264, H.265

Camera

Megapixel (approx.): 2 MP
Sensor type: CMOS
Viewing angle, horizontal: 88°
Viewing angle, vertical: 44°

Audio

Feature: Built-in speaker(s)
Feature: Noise-canceling
Voice codecs: G.711, G.711a

Design

Product colour: Black, Silver
International Protection (IP) code: IP65
IK code: IK08
Placement supported: Vertical
Proper use: Outdoor

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology: 10/100Base-T(X)
Supported network protocols: TCP/IP, RTSP

Software

Operating system installed: Linux

Power

Indoor unit power type: DC
Power consumption (typical): 6 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 84.8 mm
Depth: 25.6 mm
Height: 181.9 mm
Weight: 490 g

Packaging data

Feature: Outdoor unit included

Logistics data

Quantity per pack: 1 pc(s)
