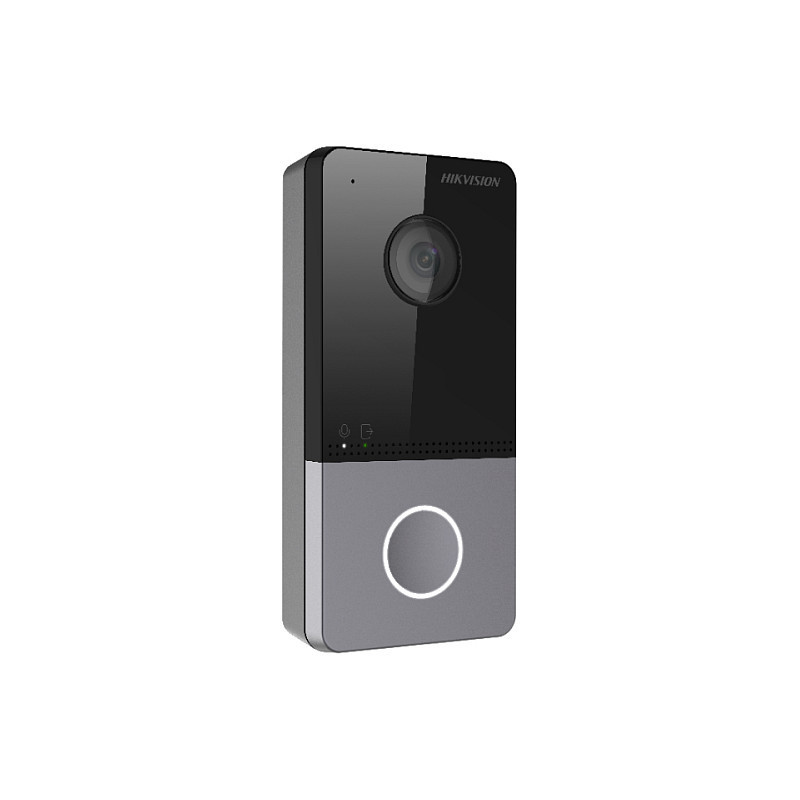

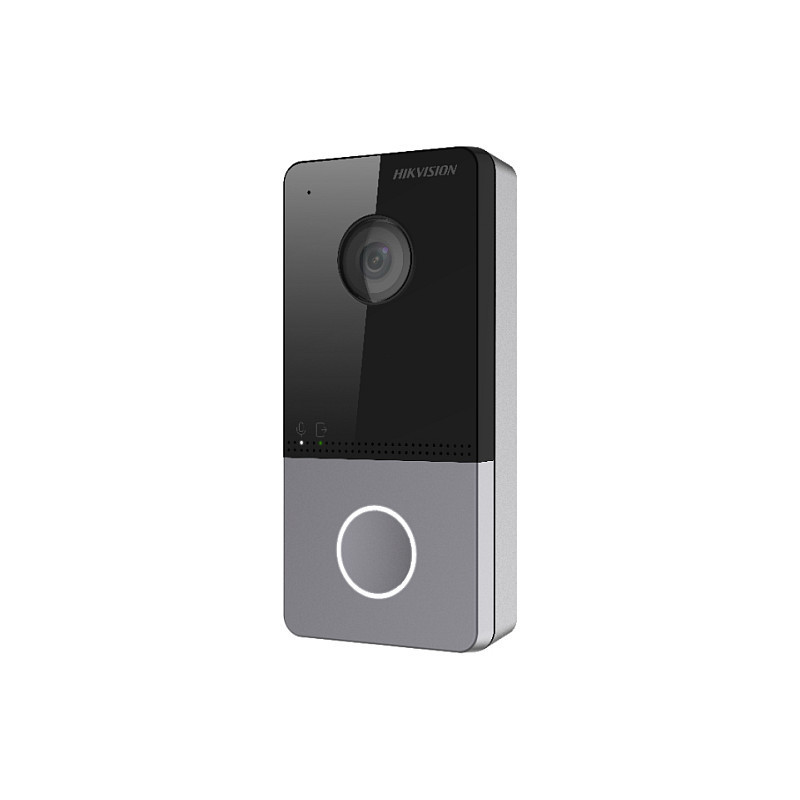

Hikvision DS-KV6113-WPE1(C) video intercom system

Hikvision DS-KV6113-WPE1(C). Megapixel (approx.): 2 MP, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080p. LED type: IR. Product colour: Black, Grey, International Protection (IP) code: IP65, Housing material: Plastic. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Operating system installed: Embedded LINUX

Technical details

Connectivity technology: Wired
Frequency band: 2.4 - 2.4835 GHz
Feature: Echo cancellation
Feature: Wall mountable
Feature: Built-in microphone
Video codecs: H.264
Number of buttons: 1 buttons

Camera

Megapixel (approx.): 2 MP
Maximum video resolution: 1920 x 1080 pixels
Supported video modes: 720p, 1080p
Viewing angle, horizontal: 131°
Viewing angle, vertical: 78°

Night vision

Feature: Night vision
LED type: IR

Audio

Feature: Built-in speaker(s)

Design

Product colour: Black, Grey
International Protection (IP) code: IP65
Housing material: Plastic
LED indicators: Yes

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols: TCP/IP, RTSP
Networking standards: IEEE 802.3af

Software

Operating system installed: Embedded LINUX

Power

Outdoor unit power type: DC
Power consumption (typical): 10 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Operating relative humidity (H-H): 10 - 95%

Weight dimensions

Width: 65 mm
Depth: 27 mm
Height: 138 mm
Weight: 265 g

Packaging data

Feature: Outdoor unit included
