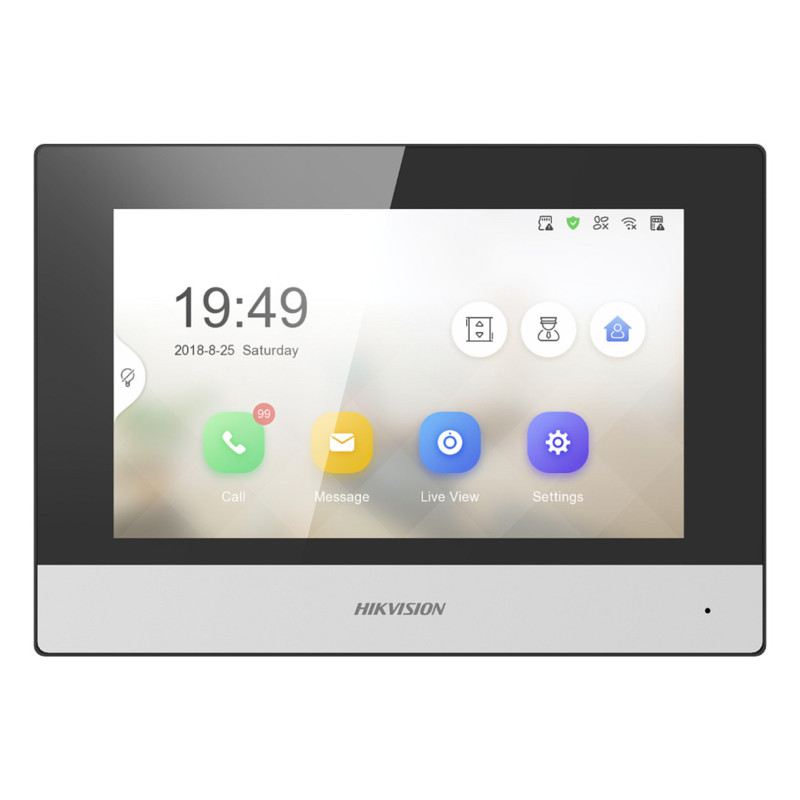

Hikvision DS-KH6320-WTE1 video intercom system

Hikvision DS-KH6320-WTE1. Display diagonal: 17.8 cm (7"), Display technology: LCD/TFT, Display resolution: 1024 x 600 pixels. Voice codecs: G.711u. Product colour: Black, Silver. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 32 GB. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Flexible audio/visual communications with door station & the master station

Technical details

Connectivity technology: Wired & Wireless
Feature: Colour
Feature: Echo cancellation
Feature: Built-in microphone

Display

Display diagonal: 17.8 cm (7")
Display technology: LCD/TFT
Display resolution: 1024 x 600 pixels
Feature: Touchscreen
Touchscreen type: Capacitive

Audio

Feature: Built-in speaker(s)
Feature: Noise-canceling
Voice codecs: G.711u

Design

Product colour: Black, Silver

Storage

Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 32 GB

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology: 10/100Base-T(X)
Feature: Power over Ethernet (PoE)
Supported network protocols: TCP/IP, SIP, RTSP
Networking standards: IEEE 802.3af

Software

Operating system installed: Linux

Power

AC adapter output voltage: 12 V
AC adapter output current: 1 A
Power consumption (typical): 6 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 200 mm
Depth: 15.1 mm
Height: 140 mm
Weight: 355 g

Packaging data

Feature: Indoor unit included
Package weight: 683 g
