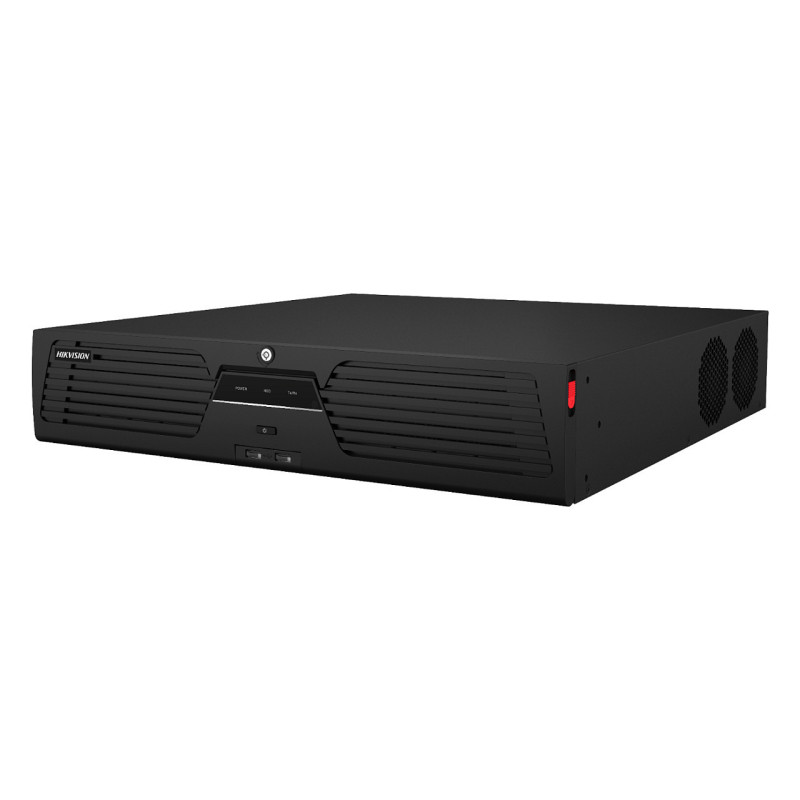

Hikvision DS-9632NI-M8 network video recorder

Hikvision DS-9632NI-M8. Video input channels: 32 channels, Maximum resolution: 7680 x 4320 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 14 TB, HDD interface: SATA, eSATA, RAID levels: 0, 1, 5, 6, 10. Ethernet LAN data rates: 10,100,1000 Mbit/s, Audio output: 2-way, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP,.... Rack capacity: 2U, Brand compatibility: Hikvision Digital Technology, Product colour: Black. Power consumption (typical): 50 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz
The Ultra Series is designed for extensive projects that require a large number of cameras, as well as a rack-mounted installation for back-end NVRs. The optimized H.265+ compression codec provides maximally efficient bandwidth and storage usage.

Performance

Video input channels: 32 channels
Alarm input channels: 16
Alarm output channels: 9
Number of simultaneously playbacked channels: 16 channels
Maximum resolution: 7680 x 4320 pixels
Supported resolutions: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video codecs: H.265+/H.265/H.264+/H.264
Audio codecs: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Input bandwidth: 320 Mbit/s
Output bandwidth: 400 Mbit/s

Hard drive

Maximum storage capacity: 14 TB
HDD interface: SATA, eSATA
RAID support: Yes
RAID levels: 0, 1, 5, 6, 10

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 10,100,1000 Mbit/s
HDMI output: Yes
HDMI ports quantity: 2
VGA (D-Sub) output ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Audio RCA outputs: 2
eSATA ports quantity: 1
BNC audio output: Yes
Internal SATA ports quantity: 8
RS-485 ports: 1
RS-232 interface: Yes
eSATA: Yes
Audio output: 2-way
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Features

Rack mounting: Yes
Rack capacity: 2U
Brand compatibility: Hikvision Digital Technology
Product colour: Black
Certification: CE, FCCPart 15 Subpart B, ANSI C63.4-2014EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Power

Power consumption (typical): 50 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 445 mm
Depth: 465 mm
Height: 92 mm
Weight: 10 kg
