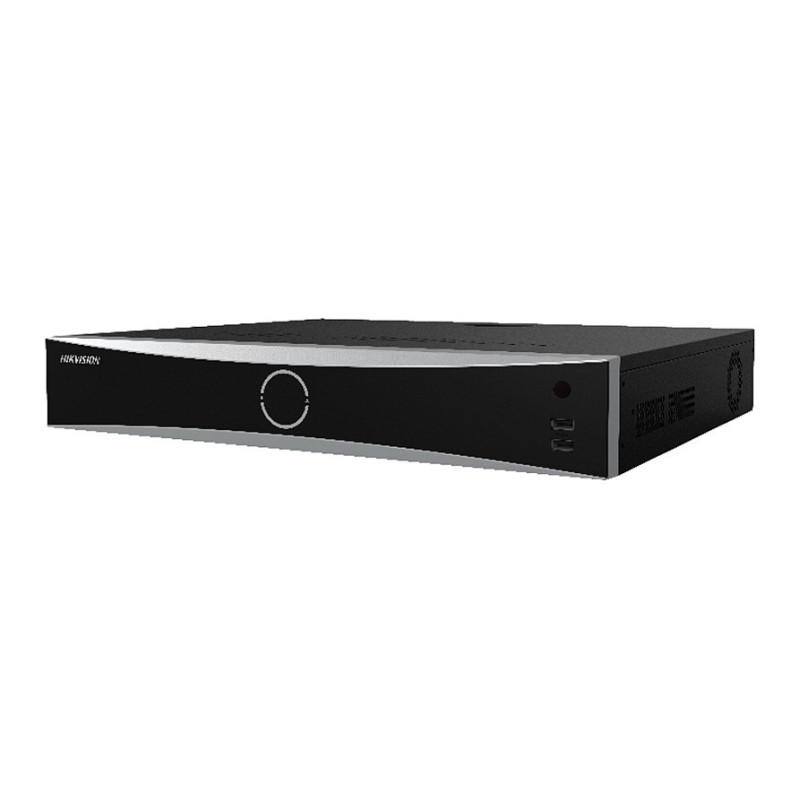

Hikvision DS-7732NXI-I4 / S(E) network video recorder

Hikvision DS-7732NXI-I4/S(E). Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA, SATA II, SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP,.... Rack capacity: 1.5U, Product colour: Black, Certification: FCC 15 B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4. Power consumption (max): 30 W, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz

Performance

Video input channels: 32 channels
Alarm input channels: 16
Alarm output channels: 4
Number of simultaneously playbacked channels: 16 channels
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Analog signal format system: NTSC, PAL
Video codecs: H.265+/H.265/H.264+/H.264/MPEG4
Audio codecs: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Input bandwidth: 256 Mbit/s
Output bandwidth: 256 Mbit/s
Feature: Face detection
Audio system: 2-way

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 4
Maximum storage capacity: 10 TB
HDD interface: SATA, SATA II, SATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: BNC video output
HDMI ports quantity: 2
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA inputs: 1
Audio RCA outputs: 1
eSATA ports quantity: 1
RS-485 ports: 1
Feature: RS-232 interface
Feature: eSATA
Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Features

Feature: Rack mounting
Rack capacity: 1.5U
Feature: On/off switch
Product colour: Black
Certification: FCC 15 B, ANSI C63.4-2014CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Power

Power consumption (max): 30 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 440 mm
Depth: 391 mm
Height: 75 mm
Weight: 3.6 kg
