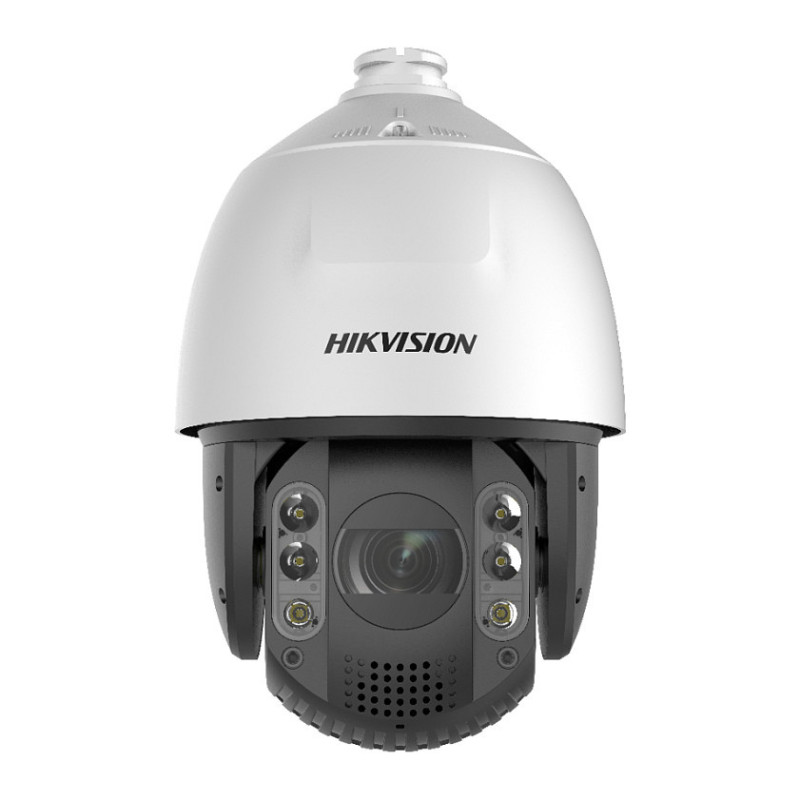

Hikvision DS-2DE7A232IW-AEB(T5) security camera

Hikvision DS-2DE7A232IW-AEB(T5). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 50.8 - 2.6°, Lens viewing angle, vertical: 29.4 - 1.5°, Lens viewing angle, diagonal: 57.4 - 3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 16x, Detect distance: 2200 m

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Dynamic range: 120 dB
Certification: FCC SDoC (47 CFR 15, B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: 6, 2019);KC (KN 32: 2015, KN 35: 2015)UL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017);BIS (IS 13252(1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Protection features: Water resistant
International Protection (IP) code: IP66
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0 lx
Lens viewing angle, horizontal: 50.8 - 2.6°
Lens viewing angle, vertical: 29.4 - 1.5°
Lens viewing angle, diagonal: 57.4 - 3°
Tilt angle range: -15 - 90°
Tilt speed: 120 °/sec
Tilt preset speed: 200 °/sec
Pan range: 0 - 360°
Pan speed: 160 °/sec
Pan preset speed: 240 °/sec
Camera shutter speed: 1/1 - 1/30000 s
Number of Privacy masking areas: 24

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 32x
Digital zoom: 16x
Number of lenses: 1
Detect distance: 2200 m
Observe distance: 873 m
Recognize distance: 440 m
Focal length range: 4.8 - 153 mm
Auto focus: Yes
Focus: Motorized/Manual
Maximum aperture number: 1.6
Identify distance: 220 m

Night vision

Night vision: Yes
Night vision distance: 200 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Bit rate: 32 Kbps - 16 Mbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes

Audio

Built-in speaker(s): Yes
Signal-to-Noise Ratio (SNR): 52 dB
Voice codecs: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Bit rate range: 16 - 192 Kbit/s
Sample rates: 8 - 48 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x
Supported network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Wi-Fi: No
Bluetooth: No
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Quality of Service (QoS) support: Yes
Live view: Yes
Number of simultaneous live view channels: 20 channels

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 2
Alarm output channels: 1
Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS
HTTPS encryption: Yes
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Digital watermark: Yes
Audit log: Yes

Management features

Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power

Power source type: AC
AC input voltage: 24 V
Power consumption (max): 42 W

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Diameter: 22 cm
Length: 363.3 mm
Weight: 5 kg

Packaging content

Number of cameras: 1
