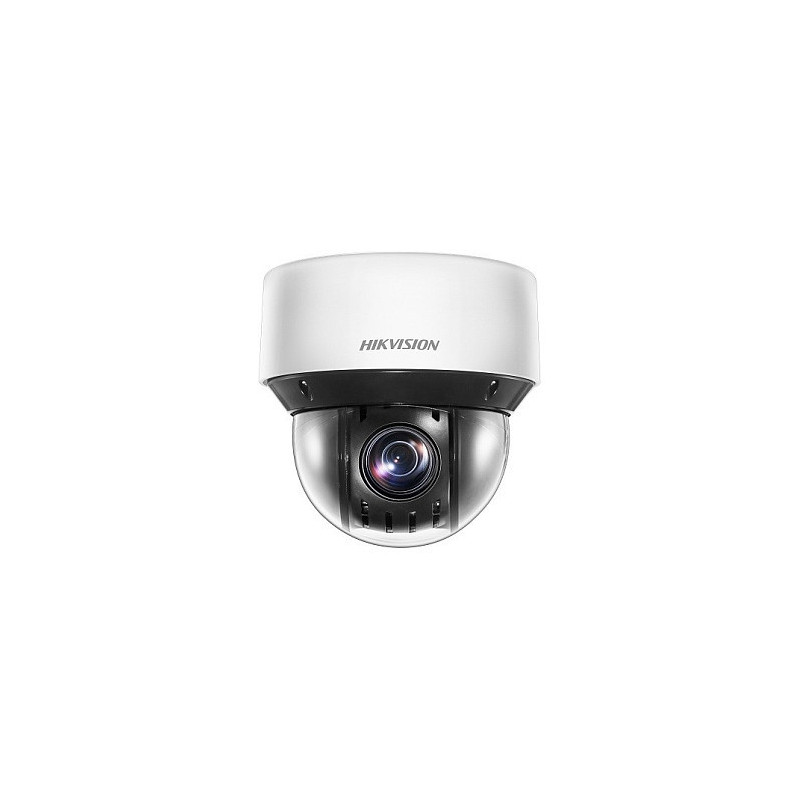

Hikvision DS-2DE4A425IWG-E security camera

Hikvision DS-2DE4A425IWG-E. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 53.3°, Lens viewing angle, vertical: 30.6°, Lens viewing angle, diagonal: 60.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 25x, Digital zoom: 16x, Focal length range: 4.8 - 120 mm
With a perfect balance of performance and value, Hikvision Pro Series network cameras aim to provide just the right components, including intelligent features that are affordable and easy to use.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Alarm input/output: Yes
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP66

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0 lx
Lens viewing angle, horizontal: 53.3°
Lens viewing angle, vertical: 30.6°
Lens viewing angle, diagonal: 60.5°
Tilt angle range: -5 - 90°
Tilt speed: 160 °/sec
Tilt preset speed: 200 °/sec
Pan range: 0 - 360°
Pan speed: 300 °/sec
Pan preset speed: 350 °/sec
Camera shutter speed: 1/1 - 1/30000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 25x
Digital zoom: 16x
Number of lenses: 1
Focal length range: 4.8 - 120 mm
Auto focus: Yes
Focus: Motorized/Manual
Maximum aperture number: 1.6

Night vision

Night vision: Yes
Night vision distance: 50 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio codecs: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 16 - 64 Kbit/s
Sample rates: 16 - 64 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Supported network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Wi-Fi: No
Bluetooth: No
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 2
Alarm output channels: 2
Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection
Mirror: Yes
Digital watermark: Yes
Audit log: Yes

Management features

Web browser: Yes
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power

Power source type: DC
Power consumption (max): 24 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Height: 161 mm
Diameter: 16.9 cm
Weight: 2.45 kg

Packaging content

Number of cameras: 1
