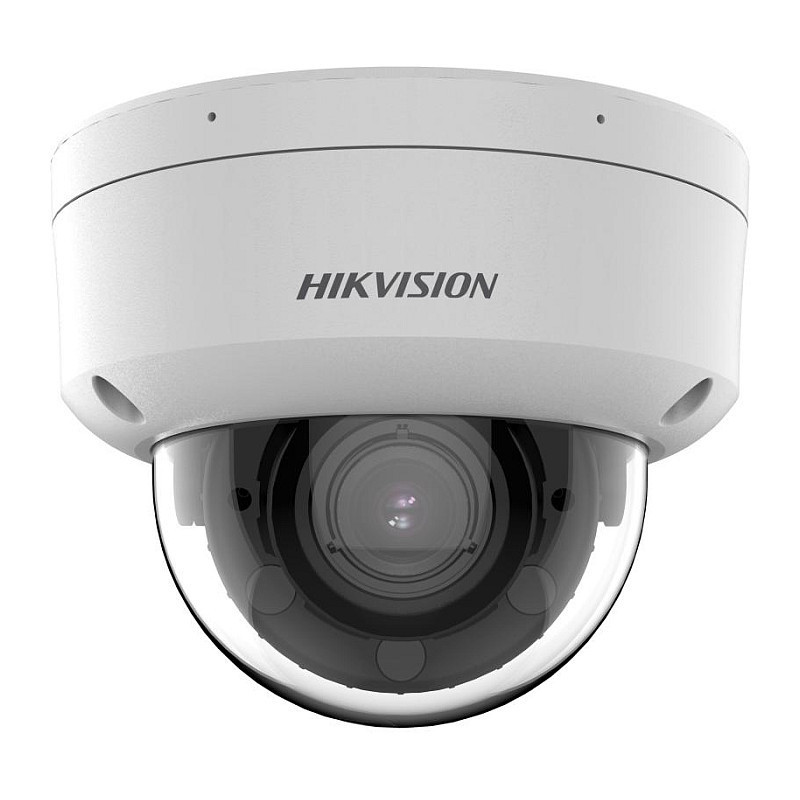

Hikvision Pro Series with AcuSense DS-2CD2783G2-LIZS2U(2.8-12mm)

Hikvision Pro Series with AcuSense DS-2CD2783G2-LIZS2U(2.8-12mm). Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 106.5 - 30.2°, Lens viewing angle, vertical: 55.7 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8-12 mm, Detect distance (wide): 88.3 m, Detect distance (tele): 289.7 m

8 MP Acusense Smart Hybrid Light Motorized Varifocal Dome Network Camera

The PTRZ camera offers a revolutionary dome design that eliminates the need for cover removal. With a transparent cover that allows for adjustments without the hassle of disassembly, this camera streamlines the installation process and reduces the risk of contamination. Additionally, the 5-axis adjustment further equips the PTRZ with day and night lighting compensation capabilities, making it a versatile and reliable security solution.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 33
Languages support: Multi

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal
Protection features: Dust resistant, Vandal proof, Waterproof
International Protection (IP) code: IP67
IK code: IK10

Camera

Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 106.5 - 30.2°
Lens viewing angle, vertical: 55.7 - 17°
Lens viewing angle, diagonal: 128.5 - 34.7°
Tilt angle range: 0 - 90°
Pan range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 8

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 2.8-12 mm
Maximum aperture number: 1.6
Detect distance (wide): 88.3 m
Detect distance (tele): 289.7 m
Observe distance (wide): 35 m
Observe distance (tele): 114.9 m
Recognize distance (wide): 17.7 m
Recognize distance (tele): 57.9 m
Identify distance (wide): 8.8 m
Identify distance (tele): 29 m

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR/White
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 4 MP
Video formats supported: H.264, H.264+, H.265, H.265+, M-JPEG
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3840 x 2160
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC, MP3, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Voice codecs: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Face detection
Feature: Heartbeat
Feature: Mirror
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web-based management
Feature: Web browser
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection

Power

Power source type: DC, PoE
Power consumption (max): 10.56 W
Power consumption (Power over Ethernet (PoE)): 12.5 W
DC output voltage: 12
DC output current: 0.88 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 97.6 mm
Diameter: 12.2 cm
Weight: 620 g

Packaging data

Package width: 150 mm
Package depth: 150 mm
Package height: 141 mm
Package weight: 880 g

Sustainability

Compliance certificates: CB, KC, RCM, REACH, RoHS, WEEE

Packaging content

Number of cameras: 1
