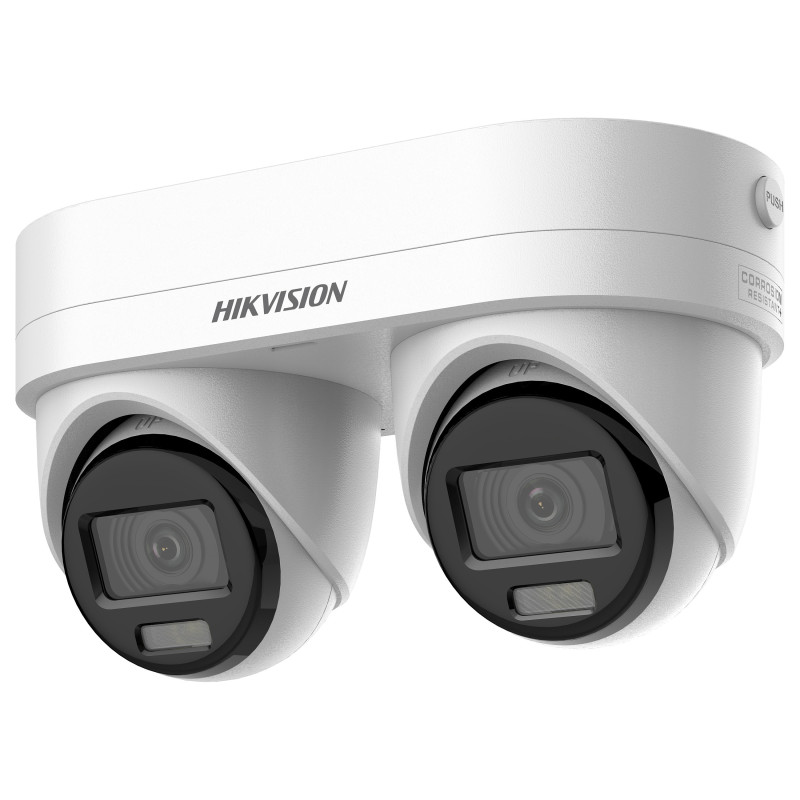

Hikvision DS-2CD2346G3D-IZ2UY / SL(2.8 / 4MM) security camera

Hikvision DS-2CD2346G3D-IZ2UY/SL(2.8/4MM). Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 99.3, 80°, Lens viewing angle, vertical: 52.9, 44.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Focal length range: 2.8, 4.8 mm

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 33
Languages support: Multi

Design

Form factor: Turret
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal

Camera

Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 99.3, 80°
Lens viewing angle, vertical: 52.9, 44.1°
Lens viewing angle, diagonal: 120.2, 94°
Tilt angle range: 0 - 75°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 8

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 2
Focal length range: 2.8, 4.8 mm
Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 360, 768 x 432, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Feature: Built-in speaker(s)
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3at
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: TLS
Feature: HTTPS encryption
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection
Feature: Motion sensor
Feature: Heartbeat
Feature: Mirror
Feature: Password reset via email
Feature: Pixel counter
Feature: Flash log
Feature: Audit log
Feature: Digest authentication

Management features

Feature: Web browser
Feature: Reset button

Power

Power source type: DC
Power consumption (max): 17 W
Power consumption (Power over Ethernet (PoE)): 18 W
DC output voltage: 12
DC output current: 1.42 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 199.9 mm
Depth: 120.1 mm
Height: 97.2 mm
Weight: 1.2 kg

Packaging data

Package width: 305 mm
Package depth: 162 mm
Package height: 165 mm
Package weight: 1.57 kg

Packaging content

Number of cameras: 2
