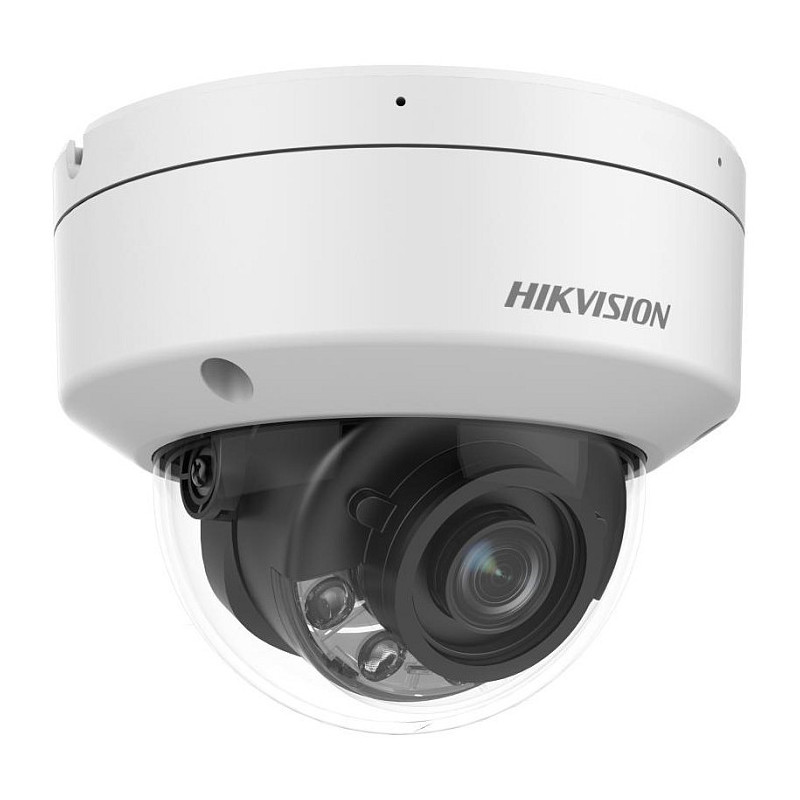

Hikvision DeepinView Series iDS-2CD7D47G0-XS(4mm)

Hikvision DeepinView Series iDS-2CD7D47G0-XS(4mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 94.7°, Lens viewing angle, vertical: 49.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 72.1 m, Observe distance: 28.6 m, Recognize distance: 14.4 m

Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from
malicious cyber attacks.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Picture overlay: 128 x 128 pixels
Picture overlay: 24 bit
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Blue glass filter
Feature: Alarm input/output
Feature: Built-in light
Open platform version: HEOP 2.0
AI software framework: Caffe, ONNX, PaddlePaddle, TensorFlow
Supported programming languages: C++
Number of languages: 33
Languages support: Multi
Dynamic range: 140 dB

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Aluminium
Protection features: Dust resistant, Vandal proof, Waterproof
International Protection (IP) code: IP67
IK code: IK10

Camera

Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 94.7°
Lens viewing angle, vertical: 49.4°
Lens viewing angle, diagonal: 112.6°
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
Camera shutter speed: 1 - 1/100000 s
Number of Privacy masking areas: 8

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 72.1 m
Observe distance: 28.6 m
Recognize distance: 14.4 m
Maximum aperture number: 1
Identify distance: 7.2 m
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR/White
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: AAC-LC, G.711, G.726, MP2L2, MP3, PCM
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Quality of Service (QoS) support
Client interoperability: iVMS-4200, Hik-Connect
Feature: Live view
Number of simultaneous live view channels: 20 channels

Storage

eMMC capacity: 1 GB
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 1 TB
Internal memory: 40 MB
RAM capacity: 350 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, TLS
Feature: HTTPS encryption
Feature: Privacy protection
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Flash log
Feature: Audit log
Feature: Automatic Network Replenishment (ANR)
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web-based management
Feature: Reset button
Behavior analysis: Audio exception detection

Power

Power source type: DC, PoE
Power consumption (max): 10.2 W
Power consumption (Power over Ethernet (PoE)): 10.2 W
DC output voltage: 12
DC output current: 0.85 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 121.5 mm
Diameter: 9.76 cm
Weight: 620 g

Packaging data

Package width: 150 mm
Package depth: 150 mm
Package height: 141 mm
Package weight: 805 g
Package type: Box

Sustainability

Feature: Sustainability compliance
Compliance certificates: BIS, CB, CE, Electromagnetic Compatibility (EMC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UL

Packaging content

Number of cameras: 1

Technical details

Feature: Iris
