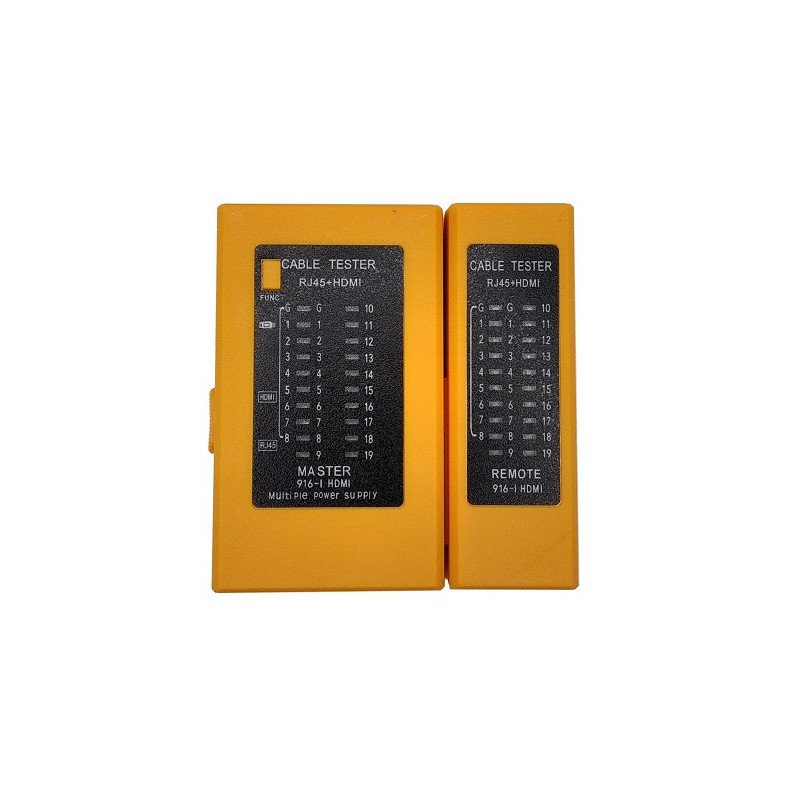

HDMI cable tester NF622

HDMI cable tester NF622.
Features:

• Fast and accurate testing using A - A, A - C, CA and C - C type connectors.


• Check HDMI cables for faults, short, open and crossover.


• Map continuity and proper configuration.


• 19pin and ground connections, 4 status lights.


• Can only check the wiring diagram with the main unit.


• Adjustable test modes: fast/slow scan/manual test/step by step.

Technical data:

• Cable versions supported: HDMI cables with Type A and Type C connectors, compliant with 1.0, 1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a, Category 1 and Category 2 HDMI cables.


• Support test: 19 pin to detect wiring diagram and shielding.


• Main unit test interface: HDMI (Type A) x 2, Mini HDMI (Type C) x1.


• Remote device test interface: HDMI (Type A) x 2, Mini HDMI (Type C) x1.


• Test type: main unit/master and remote unit


• Test mode: fast/slow scan/step by step


• Test distance: less than 50 meters.


• Display: 19 light and shield diodes on the main unit and remote unit.


• Beep indication.


• Low battery indicator: 6.0 V.


• Power supply: DC 9V (NEAD 1604 / 6F22) x 1 (not included).


• Storage: from -10C to 55C lt;70% RH.


• Dimensions: 103x66x27mm.
