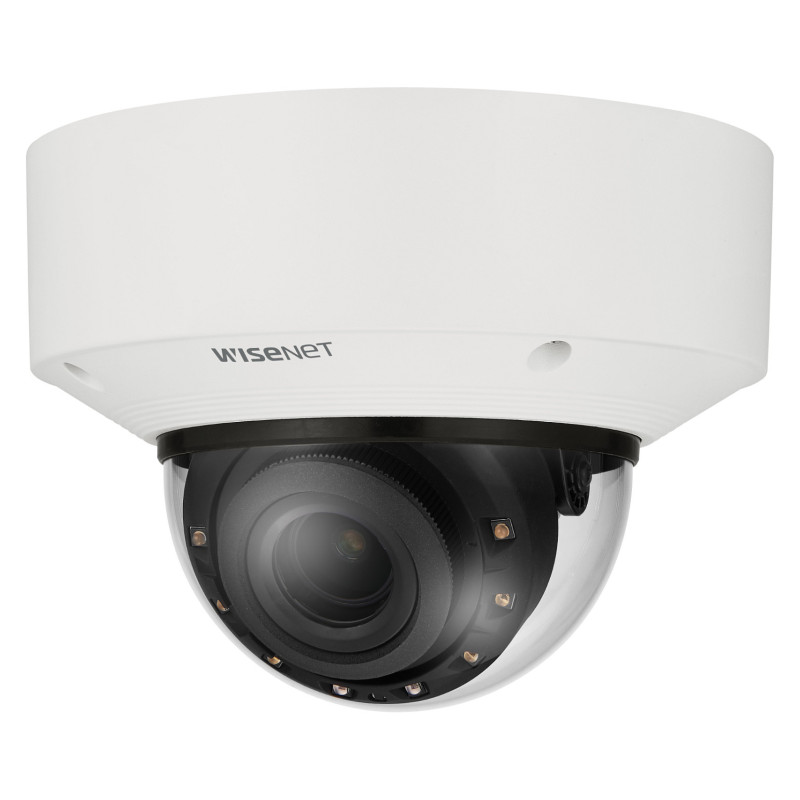

Hanwha XNV-C9083R security camera

Hanwha XNV-C9083R. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 58°, Lens viewing angle, diagonal: 137.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.4 - 9.3 mm

Reducing False alarm based on AI
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras' deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.

AI-based object detection for operational efficiency
Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

Reducing False alarm based on AI
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras' deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.

AI-based object detection for operational efficiency
Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

AI-based WiseNRII and Prefer Shutter Control
WiseNRII is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.

AI-based Image Optimization, WiseStreamⅢ
By utilizing the results of AI-based object detection, WiseStreamIII technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 112°
Lens viewing angle, vertical: 58°
Lens viewing angle, diagonal: 137.5°
Tilt angle range: -45 - 75°
Pan range: 0 - 360°
White balance: ATW, AWC, Indoor, Manual, Outdoor

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 4.4 - 9.3 mm

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 4 MP
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Image stabilizer

Network

Feature: Ethernet LAN
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB
Flash memory: 512 MB
Internal memory: 4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-PEAP, EAP-TLS, HTTPS
Feature: Anti-flicker

Power

Power source type: DC, PoE
Power consumption (typical): 10.8 W
Power consumption (max): 13.2 W
Power consumption (Power over Ethernet (PoE)): 12.95 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -50 - 60 °C

Weight & dimensions

Width: 160 mm
Depth: 160 mm
Height: 125 mm
Diameter: 16 cm
Weight: 1.45 kg

Packaging content

Number of cameras: 1
