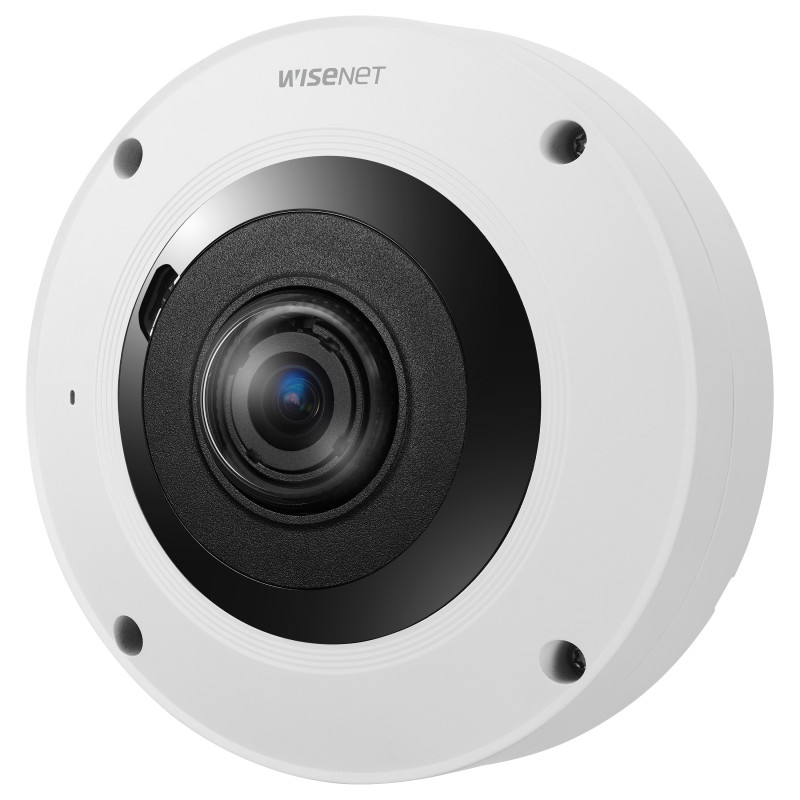

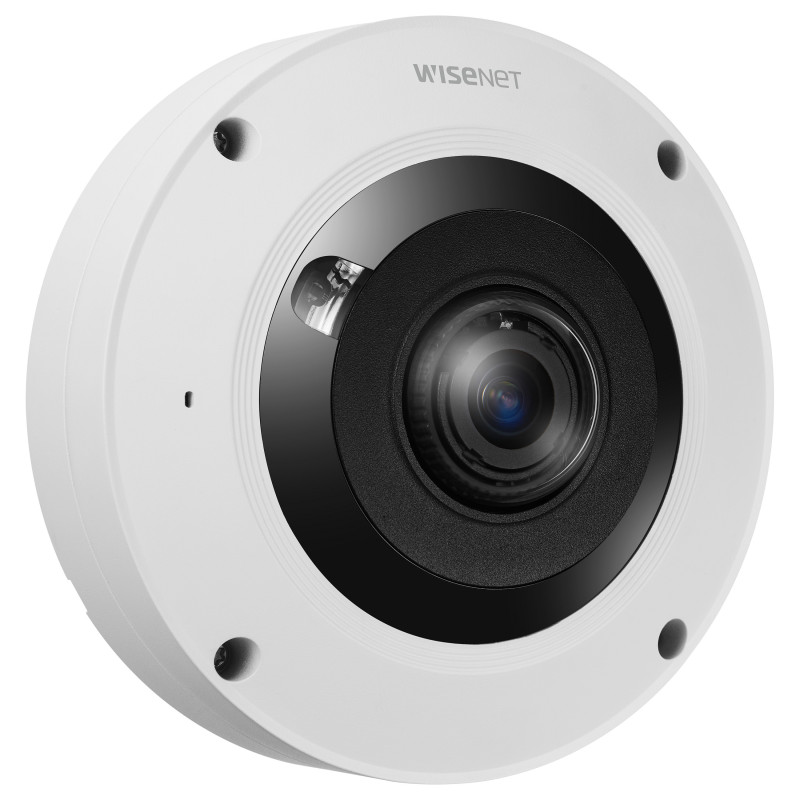

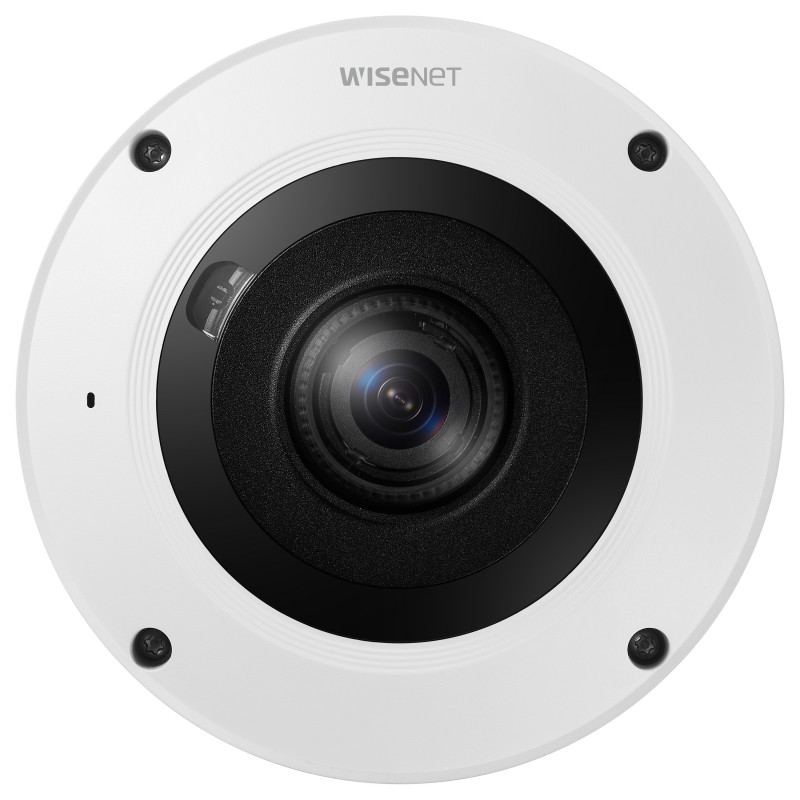

Hanwha XNF-9013RV security camera

Hanwha XNF-9013RV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 187°, White balance: ATW, AWC, Indoor, Manual, Outdoor, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Detect distance: 34.9 m, Observe distance: 13.9 m, Recognize distance: 7 m

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: People counting function
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Alarm input/output

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Aluminium
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 187°
White balance: ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type: Electronic
Camera shutter speed: 1/5 - 1/12000 s
Number of Privacy masking areas: 32

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.3 mm (1 / 2.3")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 34.9 m
Observe distance: 13.9 m
Recognize distance: 7 m
Identify distance: 3.5 m
Minimum aperture number: 2.2
Fixed focal length: 1.08 mm
Closest focusing distance: 0.5 m

Night vision

Feature: Night vision
Night vision distance: 13 m
LED type: IR

Video

Maximum resolution: 3008 x 3008 pixels
Total megapixels: 12 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: Smart Super Noise Reduction V (SSNR V), WiseNR Ⅱ
Gain control type: Manual
Feature: Flip & mirror
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)

Audio

Audio formats supported: AAC-LC, ADPCM, G.711 μ-law, G.726
Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Number of users: 20 user(s)
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB
Flash memory: 512 MB
RAM capacity: 4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: USB port

Security

Feature: Video motion detection
Feature: IP address filtering
Security algorithms: EAP-LEAP, EAP-TLS, HTTPS
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Defocus, Face detection, Human detection, Vehicle detection
Feature: Anti-flicker
Feature: Audit log

Power

Power source type: DC, PoE
Power consumption (typical): 9 W
Power consumption (max): 22 W
Power consumption (Power over Ethernet (PoE)): 9.4 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -50 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 72 mm
Diameter: 16 cm
Weight: 1.17 kg

Packaging content

Number of cameras: 1
